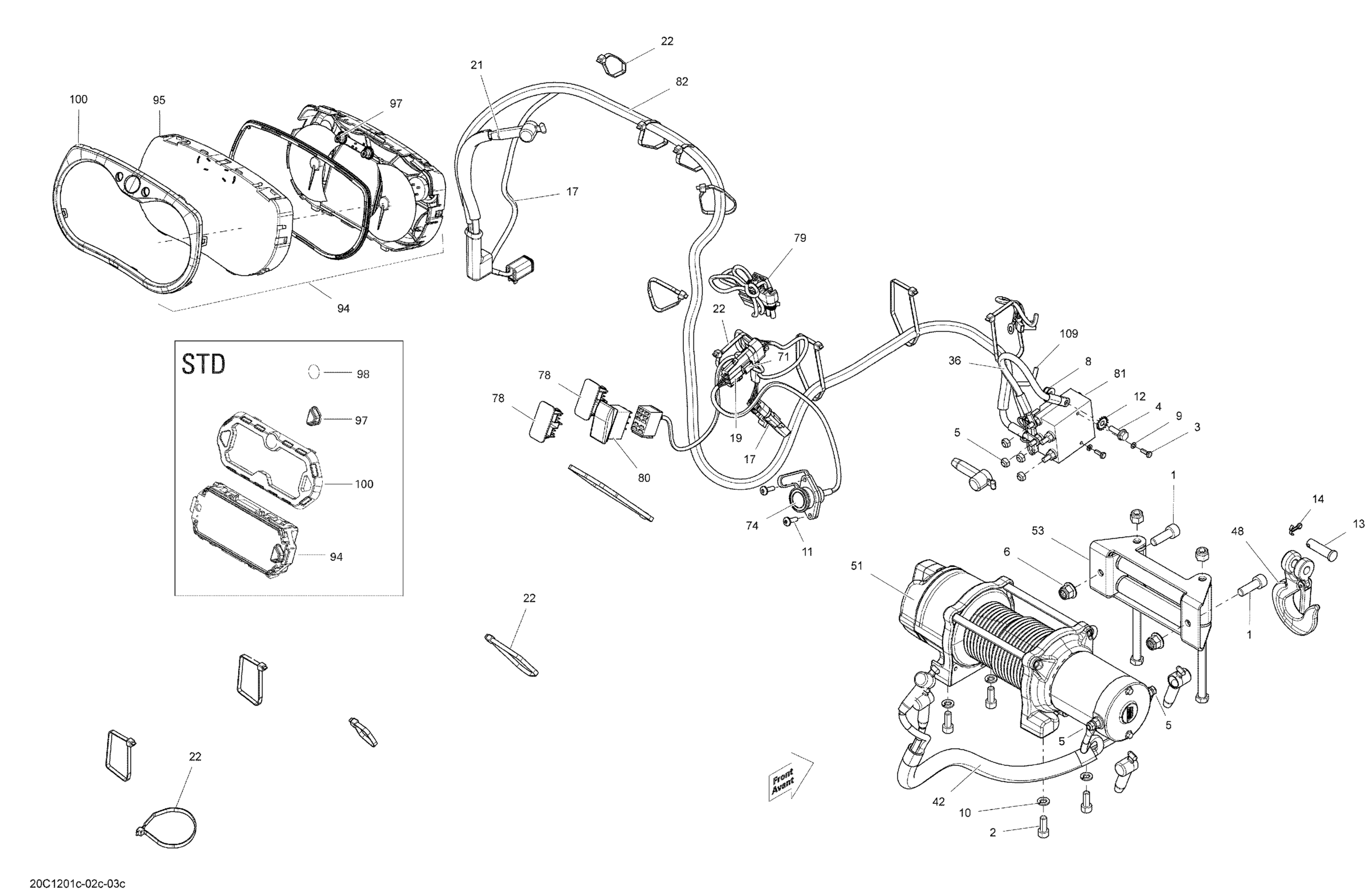

Can-Am Commander STD, XT, 800R EFI, 2012 Electrical System STD, X, XT, LTD Diagram

#

Description
Price

1

Socket Screw M10 x 30 | XT

205003044

$2.61

2

Socket Head Screw M8 X 20

205082044

$1.09

3

HEX. SCREW M4 X 10 - Call your local BRP dealership | XT

207141044

Unavailable

4

Hex. Flange Screw M6 X 20

207662044

$1.66

5

Elastic Stop Nut M6

232561434

$1.55

6

Hex. Flange Elastic Nut M10

233201414

$1.26

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

9

Lock Washer 4 mm

234141601

$1.09

10

Lock Washer 8 mm

234181401

$0.89

11

Torx Screw K50 X 16

250000720

$1.39

12

Lock Washer Serrated M6

250200041

$0.92

13

Clevis Pin

250400021

$11.83

14

Cotter Pin

250400022

$8.66

17

Wiring Harness Ass'y

710002625

$1,015.35

19

Connector Ass'y | XT, Includes 55 to 57

710001059

$9.22

21

POSITIVE CABLE - Call your local BRP dealership | STD, X

710002148

Unavailable

22

Tie Wrap 368 mm

293750008

$0.85

36

NEGATIVE CABLE - Call your local BRP dealership | XT

710004386

Unavailable

42

Electrical Winch Cable | XT

710004387

$46.12

48

Winch Hook Kit

705014949

$27.66

51

WINCH - Call your local BRP dealership | XT

705003944

Unavailable

53

WINCH CABLE GUIDE - Call your local BRP dealership | XT

715001119

Unavailable

71

Clip

710000992

$4.00

74

Winch Connector

710001023

$50.74

78

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$6.62

79

Wiring Harness Ass'y

710002625

$1,015.35

80

Switch Winch

710002052

$28.92

81

Solenoid Kit | XT

715007084

$219.97

82

Winch Cable (-/+) | XT

710005123

$87.66

94

CALIBRATED SPEEDOMETER - Call your local BRP dealership | LTD Model

710003290

Unavailable

94

Speedometer Ass'y | XTP

710005075

$364.58

94

Calibrated Speedometer | Includes 16 to 17

710003288

$332.28

95

Lens | XTP

415129349

$23.05

97

Speedometer Button | XTP

415129355

$13.94

97

Button

710001473

$12.68

98

BRP Logo13 mm

704904615

$9.66

100

Gauge Ring

415129348

$11.71

100

Trim Ring Ass'y

710001183

$18.43

109

Wiring Harness Ass'y

710002625

$1,015.35
