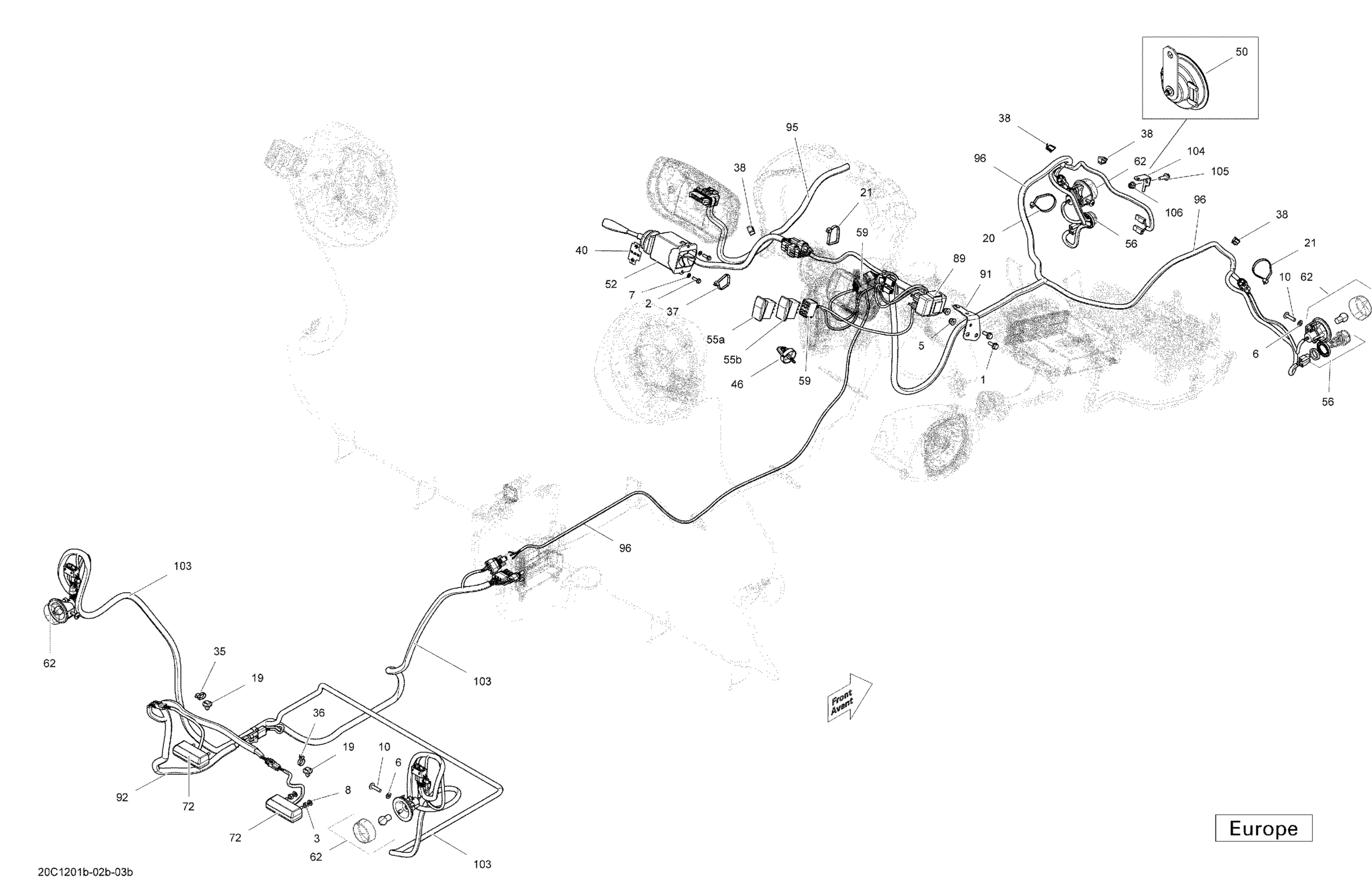

Can-Am Commander STD, XT, 800R EFI, 2012 Electrical System Europe Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.61

2

Hex. Forming Screw M5 X 16

210251650

$0.92

3

Hex. Nut M6

232061600

$0.91

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

6

Flat Washer 6 mm

234061410

$1.04

7

Lock Washer 5 mm | Europe

234151401

$0.46

8

Lock Washer Helical M6

234161601

$0.92

10

Torx Screw M6 x 25

250000284

$1.74

19

Mount Dart

293730040

$0.86

20

Tie Wrap 368 mm

293750008

$0.85

21

Tie Wrap 368 mm

293750008

$0.85

35

Tie-Rap 180 mm

414115200

$0.09

36

Tie-Rap 180 mm

414115200

$0.09

37

Tie-Rap 180 mm

414115200

$0.09

38

Clip

414227300

$1.45

40

Flasher Decal | Europe

704902614

$16.89

46

Black, Electronic Key

710000817

$55.35

50

Horn

710004791

$37.66

52

Turn Signal | Europe

710001721

$198.43

56

Day Light | Europe

710001726

$36.89

59

Wiring Harness Ass'y

710002625

$1,015.35

62

Flasher | Europe

710002047

$32.28

72

License Light

710002055

$59.99

89

Flasher Unit

710003239

$78.43

91

SUPPORT - Call your local BRP dealership | Europe

710002408

Unavailable

92

Tail Gate Harness Ass'y

710002220

Unavailable

95

Wiring Harness Ass'y

710002625

$1,015.35

96

WIRING HARNESS ASSY - Call your local BRP dealership

710004336

Unavailable

103

Rear Harness | Except Europe

710003219

$152.28

103

Rear Harness

710003220

$216.89

104

SUPPORT - Call your local BRP dealership

709200284

Unavailable

105

Hex. Flange Screw M6 X 20

207662044

$1.66

106

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

55a

Hi/Low Switch | Except Europe

710001725

$23.74

55b

Switch Hazard | Europe

710002076

$18.43
