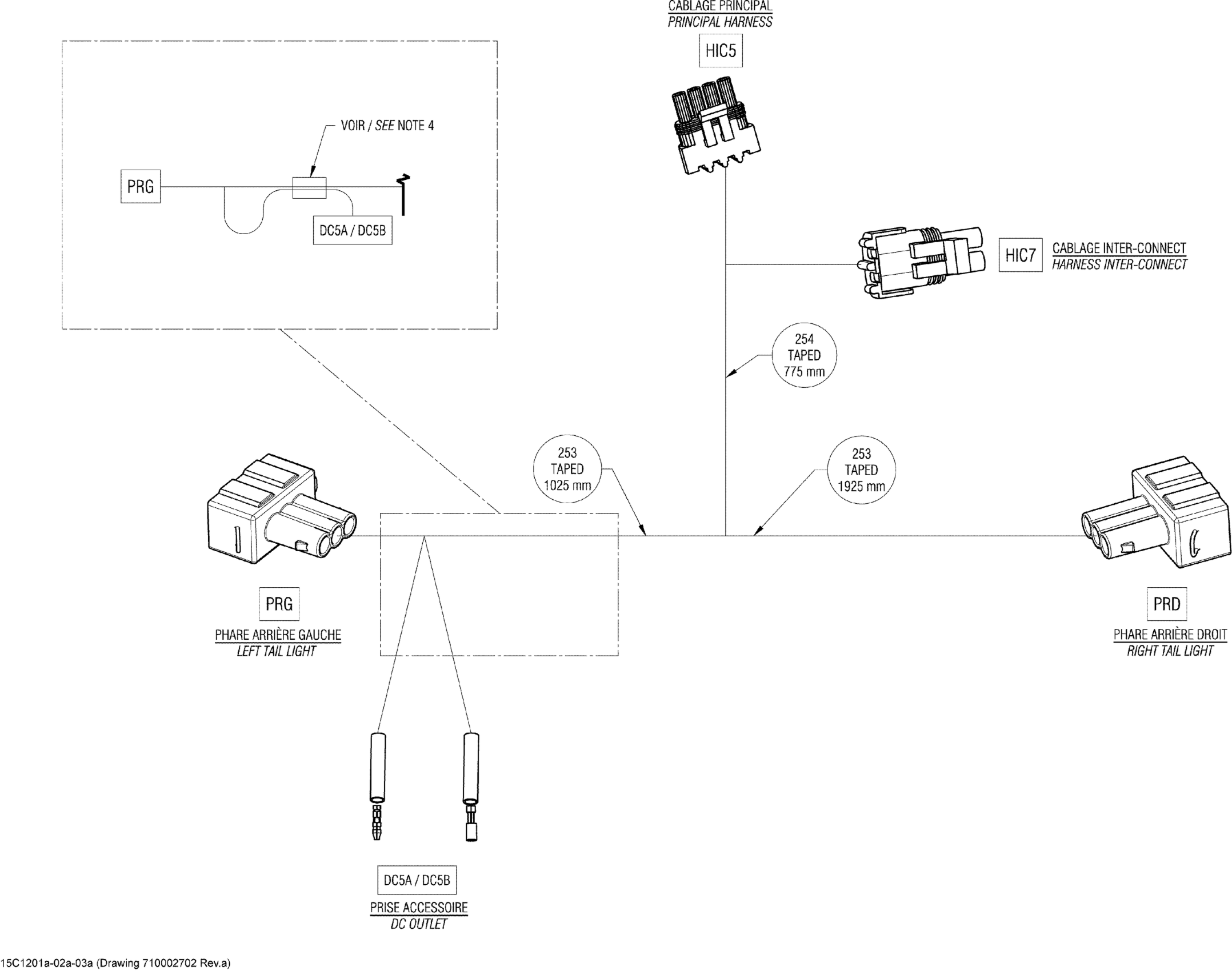

Can-Am Commander STD, XT, 800R EFI, 2012 Electrical Harness Rear Diagram

Description

Price

Rear Harness | Except Europe

710003219

$141.76

Female Terminal

278000998

$4.00

228

Female Terminal

409007300

$0.42

229

Female Terminal

278000223

$2.93

237

Male Connector, 2 Circuits

278000220

$12.66

239

Male Housing, 4 Circuits

278000395

$14.57

242

Wire Seal

278000218

$4.00

253

Tubing 6 Mm 3000Mm Long

219704425

$12.75

254

Was 409901700 Tubing (9 mm)

219704399

$77.58

295

Insulated Sheath

278001008

$3.10

297

Insulated Sheath

278001007

$3.12

387

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

484

Seal

415128501

$1.73

504

Wire Seal

278001065

$5.85

506

Female Terminal

710000421

$5.30

918

Female Terminal

278002261

$6.01

1160

Housing

710002104

Unavailable

1302

Shrink Tubing

710002711

Unavailable

DC5A

Insulated Sheath

278001008

$3.10

DC5A

Female Terminal

278002261

$6.01

DC5B

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

DC5B

Insulated Sheath

278001007

$3.12

DC5B

Female Terminal

710000421

$5.30

HIC5

Male Housing, 4 Circuits

278000395

$14.57

HIC5

Wire Seal

278001065

$5.85

HIC5

Female Terminal

278000223

$2.93

HIC7

Male Connector, 2 Circuits

278000220

$12.66

HIC7

Wire Seal

278000218

$4.00

HIC7

Female Terminal

409007300

$0.42

PRD

Housing

710002104

Unavailable

PRD

Seal

415128501

$1.73

PRD

Female Terminal

278000998

$4.00

PRG

Housing

710002104

Unavailable

PRG

Seal

415128501

$1.73

PRG

Female Terminal

278000998

$4.00
