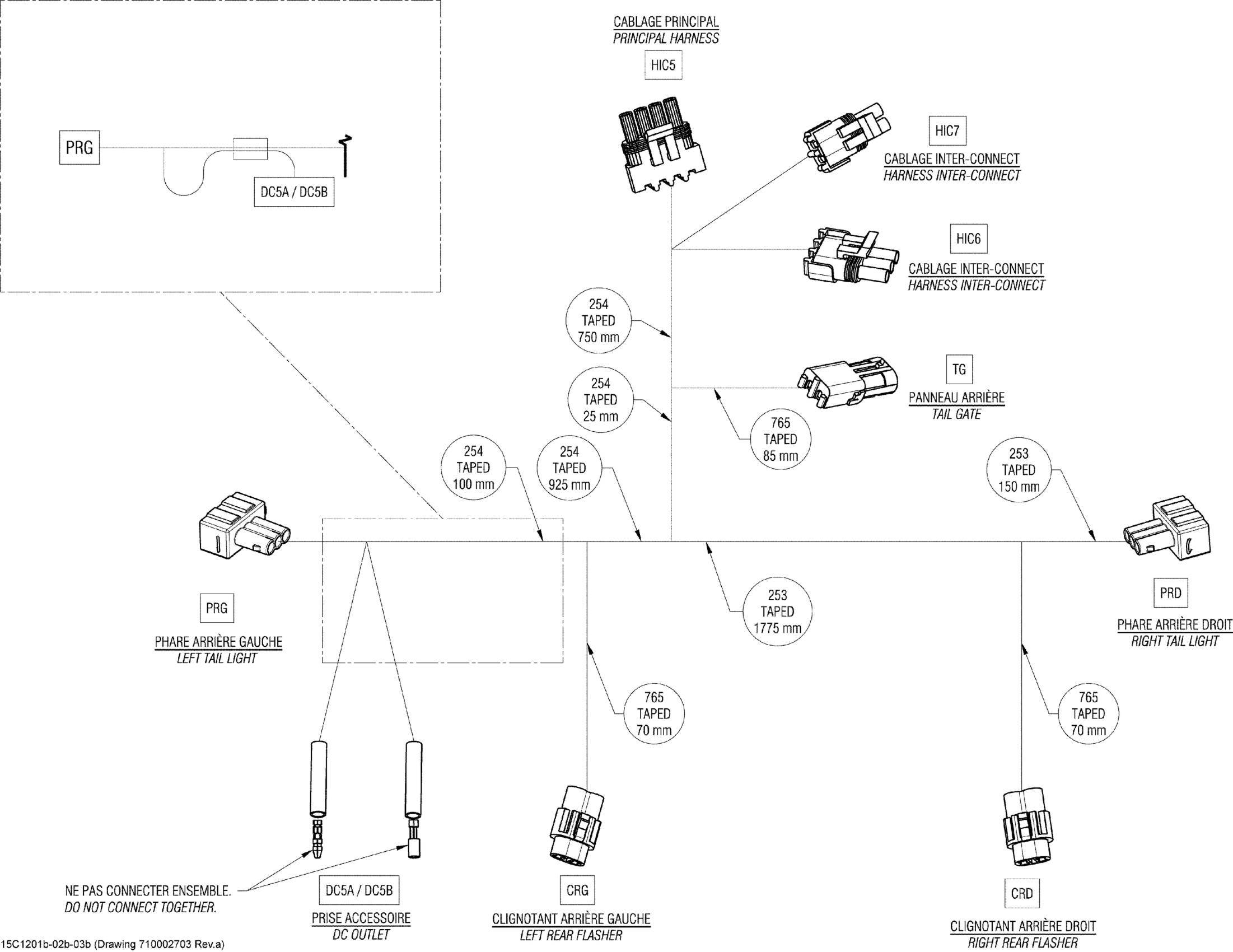

Can-Am Commander STD, XT, 800R EFI, 2012 Electrical Harness Rear Europe Diagram

#

Description
Price

1

Rear Harness

710003220

$216.89

32

Female Terminal

278000998

$3.48

226

Male Terminal | XT Models

278000222

$2.55

228

Female Terminal

409007300

$0.36

229

Female Terminal

278000223

$2.55

231

Female Housing, 2 Circuits

278000217

$7.59

237

Male Connector, 2 Circuits

278000220

$11.02

238

Male Housing, 3 Circuits

278000273

$7.59

239

Male Housing, 4 Circuits

278000395

$15.02

242

Wire Seal

278000218

$3.48

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

$79.97

280

Female Terminal

409012100

$3.73

283

Female Terminal Housing, 2 Circuits

409209200

Unavailable

284

Seal

409012300

$4.38

295

Insulated Sheath

278001008

$3.20

297

Insulated Sheath

278001007

$3.22

387

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

484

Seal

415128501

$1.51

504

Wire Seal

278001065

$6.03

506

Female Terminal

710000421

$5.46

765

Adhesive Tape

293740027

Unavailable

918

Female Terminal

278002261

$6.20

1160

Housing

710002104

Unavailable

1176

CLIP - Call your local BRP dealership

710002249

Unavailable

1302

Shrink Tubing

710002711

Unavailable

CRD

Female Terminal Housing, 2 Circuits

409209200

Unavailable

CRD

Seal

409012300

$4.38

CRD

Female Terminal

409012100

$3.73

CRG

Female Terminal Housing, 2 Circuits

409209200

Unavailable

CRG

Seal

409012300

$4.38

CRG

Female Terminal

409012100

$3.73

DC5A

Insulated Sheath

278001008

$3.20

DC5A

Female Terminal

278002261

$6.20

DC5B

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

DC5B

Insulated Sheath

278001007

$3.22

DC5B

Female Terminal

710000421

$5.46

HIC5

Male Housing, 4 Circuits

278000395

$15.02

HIC5

Wire Seal

278001065

$6.03

HIC5

Female Terminal

278000223

$2.55

HIC6

Male Housing, 3 Circuits

278000273

$7.59

HIC6

Wire Seal

278001065

$6.03

HIC6

Female Terminal

278000223

$2.55

HIC7

Male Connector, 2 Circuits

278000220

$11.02

HIC7

Wire Seal

278000218

$3.48

HIC7

Female Terminal

409007300

$0.36

PRD

Housing

710002104

Unavailable

PRD

Seal

415128501

$1.51

PRD

Female Terminal

278000998

$3.48

PRG

Housing

710002104

Unavailable

PRG

Seal

415128501

$1.51

PRG

Female Terminal

278000998

$3.48

TG

CLIP - Call your local BRP dealership

710002249

Unavailable

TG

Female Housing, 2 Circuits

278000217

$7.59

TG

Wire Seal

278001065

$6.03

TG

Male Terminal | XT Models

278000222

$2.55
