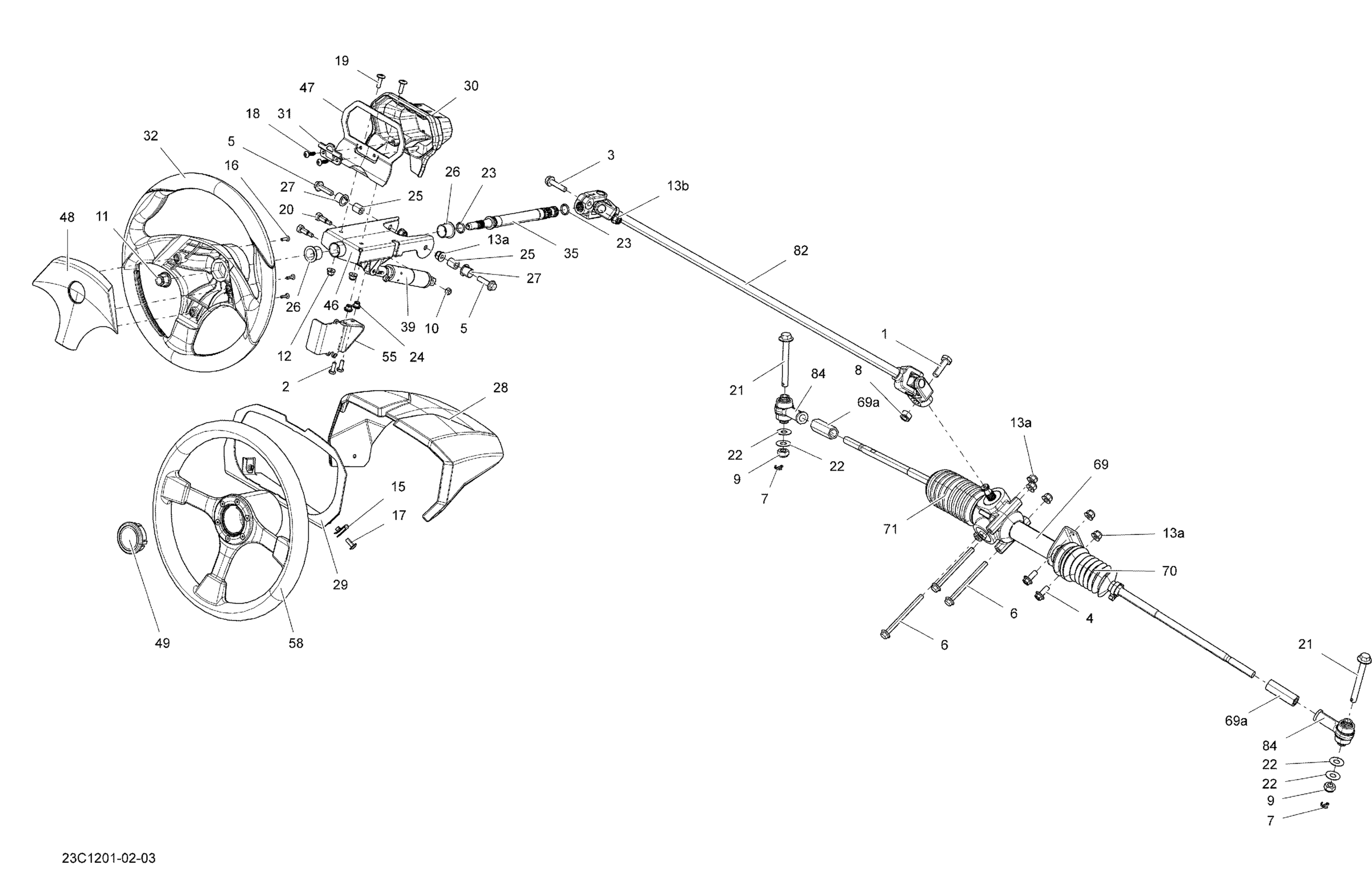

Can-Am Commander STD, XT, 800R EFI, 2012 Steering Diagram

#

Description
Price

1

Hex. Screw M10 X 35

207103544

$1.42

2

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.82

3

Hex. Flange Screw M8 X 35

250000986

$1.74

4

Hex. Flange Screw M8 X 20

207682044

$0.92

5

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.30

6

Hex. Flange Screw M8 X 95

207689534

$3.48

7

Cotter Pin

211400017

$0.25

8

Elastic Stop Nut M10

232500416

$1.56

9

Elastic Flange Nut M10

232501416

$1.25

10

Elastic Stop Nut M6

232561414

$1.55

11

Hex. Flange Elastic Nut M12

233221414

$5.10

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

Panel Nut M6 X 1.0

250100198

$1.73

16

Phillips Screw K40 X 16

250000723

$0.81

17

Torx Truss Screw M6 X 16

250000721

$1.39

18

Truss Head Torx Screw K50 X 20

250000297

$2.06

19

Torx Truss Screw M6 X 20

250000350

$4.39

20

SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership

250000649

Unavailable

21

HEX. CAP SCREW M10 X 88 - Call your local BRP dealership

250000545

Unavailable

22

Washer

250200032

$4.98

23

O-Ring

293300144

$3.98

24

Threaded Insert M6 X 1.0

250100242

Unavailable

25

Bushing

293900106

$4.42

26

Steering Bushing

709402725

$3.17

27

Bushing

705600799

$3.72

28

Upper Cluster Cover | X, XT

707900124

$15.35

29

Cluster Support | X, XT

707900013

$15.35

30

Speedometer Cover

709400514

$15.35

31

Latch Indicator Cover

709400573

$10.98

32

Steering Wheel | STD

709400650

$133.82

35

Steering Shaft

709401167

$46.12

39

Adjustment Cylinder

709402506

$69.20

46

Painted Steering Wheel Support

709401391

$83.05

47

Cluster Support | STD

709400760

$23.05

48

Steering Center | STD

709400780

$11.83

49

Can-Am Logo

704904274

$10.00

55

Flasher Arm Support | Europe

709400810

$27.66

58

STEERING WHEEL KIT - Call your local BRP dealership | X, XT Includes 3 to 5

715001134

Unavailable

69

Steering Ass'y | Includes 29 to 31

709401185

$350.74

70

RH BOOT KIT - Call your local BRP dealership

715900078

Unavailable

71

LH BOOT KIT - Call your local BRP dealership

715900077

Unavailable

82

Steering Column

709401389

$189.20

84

Ball Joint

709400982

$35.14

13a

Hex. Flange Elastic Nut M8

233281414

$1.14

13b

Hex. Elastic Flange Nut M8

233281416

$1.25
