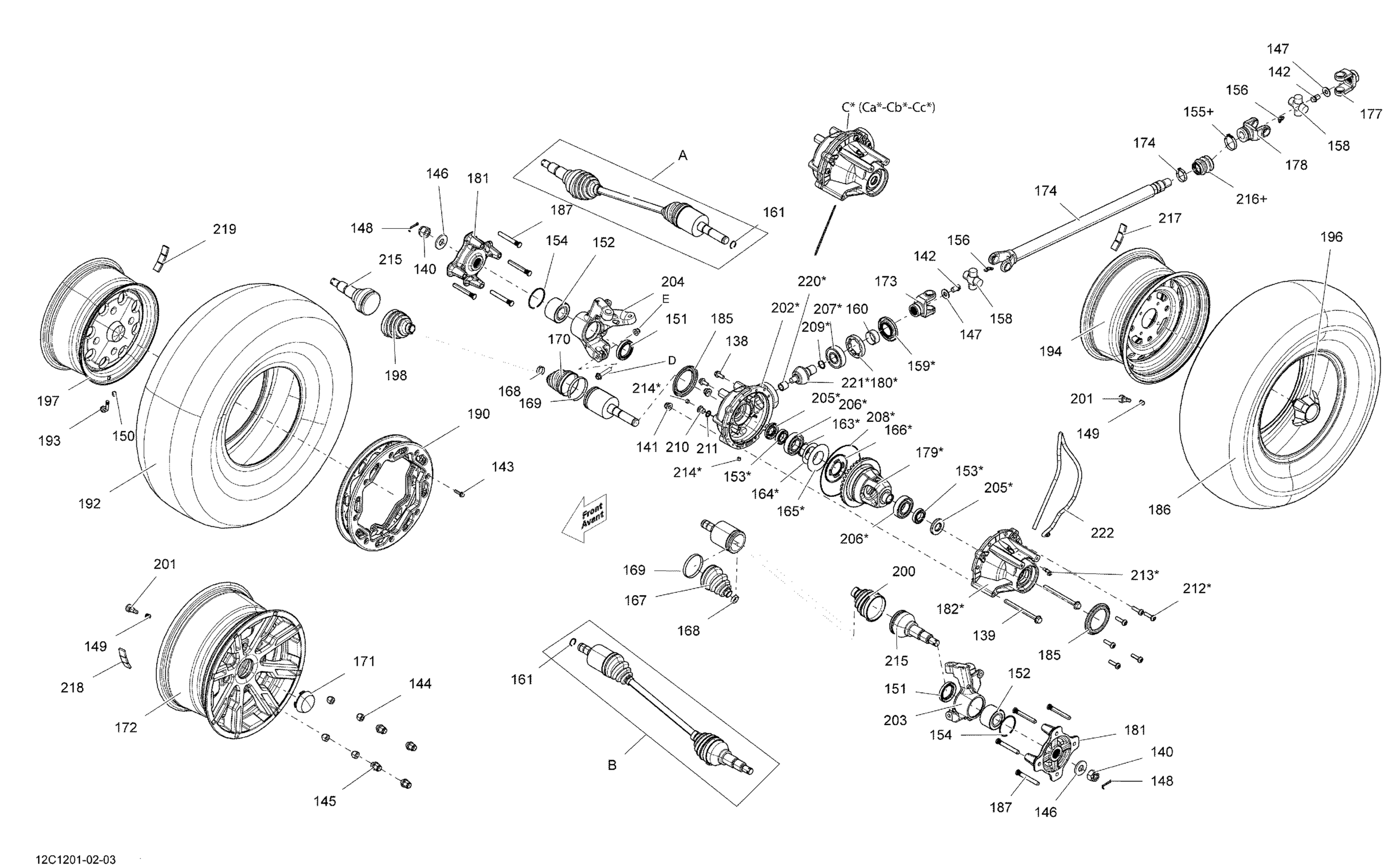

Can-Am Commander STD, XT, 800R EFI, 2012 Drive System, Front STD And XT Diagram

#

Description
Price

138

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

139

Hex. Flange Screw M10 X 125

230602546

$6.08

140

Hex. Flange Castellated Nut M18

232291413

$2.82

141

Hex. Flange Elastic Nut M10

233201436

$1.74

142

HEX FLANGED SCREW M12 X 16, SCOTCH GRIP - Call your local BRP dealership

250000378

Unavailable

143

Not Available As Spare Parts

XXX

Unavailable

144

Steel Wheel Nut

250100042

$2.48

144

Black, Wheel Nut M10 X 1.25

250100184

$2.48

145

Chrome Wheel Nut M10 X 1.25 | XT

250100185

$2.48

146

Conical Spring Washer M18

250200171

$5.28

147

Flat Washer M12

250200102

$1.74

148

Cotter Pin

250400036

$1.74

149

Valve Cap

293000110

$1.18

150

Not Available As Spare Parts

XXX

Unavailable

151

O-Ring

293250246

$7.37

152

Ball Bearing

293350150

$51.93

153

Ball Bearing | 4X4

293350044

$30.39

154

Circlip

293370019

$4.98

155

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

156

GREASE FITTING - Call your local BRP dealership

715900067

Unavailable

158

Ens. Croix*U-Joint Cross Kit

715900325

$69.20

159

Oil Seal | 4X4

705401481

$18.43

160

Wear Ring | 4X4

705400036

$25.35

161

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

163

Not Available As Spare Part - Friction Washer

Unavailable

164

Shim | 4X4

705401604

$55.35

165

Shim | 4X4

705401604

$55.35

166

Not Available As Spare Part - Friction Washer

Unavailable

167

Differential Boot Kit

705400512

$41.51

168

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

Unavailable

169

OETIKER CLAMP 71,1MM - Call your local BRP dealership

715900139

Unavailable

169

OETIKER CLAMP 67MM - Call your local BRP dealership

293650193

Unavailable

170

Differential Boot Kit

705400512

$41.51

171

WHEEL CAP - Call your local BRP dealership | XT

705400504

Unavailable

171

WHEEL CAP - Call your local BRP dealership

705400520

Unavailable

172

Front Rim | XT International Except CAMO

705401378

$179.97

172

Front Rim | XT CAMO

705401379

$199.97

172

Front Rim | XT International Except CAMO

705401378

$179.97

173

Fixed Yoke Joint

715900116

$59.97

174

Axle Drive Ass'y | Includes 1 to 7

705400915

$299.97

177

FIX JOINT - Call your local BRP dealership

705400782

Unavailable

178

Slip Joint

705500762

Unavailable

179

Ens Differentiel*Differential Kit | 4X4

703500871

$710.74

180

Nut | 4X4

705401603

$36.89

181

Wheel Hub

705401314

$129.20

182

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

185

Wear Sleeve

705400780

$7.28

186

TIRE_27X9R12 F - Call your local BRP dealership | STD

705400781

Unavailable

186

Front Tire | STD Europe Model

705401046

$133.05

187

Wheel Stud

705401964

$10.14

190

Not Available As Spare Parts

XXX

Unavailable

192

Front Tire

705402168

$235.35

192

Front Tire | XT Europe

705400961

$238.43

193

Not Available As Spare Parts

XXX

Unavailable

194

RIM_12 INCH X 6 - Call your local BRP dealership | STD

705400910

Unavailable

194

RIM_12 INCH X 6 - Call your local BRP dealership | STD

705400910

Unavailable

196

Wheel Cap | STD

705400921

$12.91

197

Not Available As Spare Parts

XXX

Unavailable

198

Wheel Boot Kit

705500907

$41.51

200

Wheel Boot Kit

705500907

$41.51

201

Rim Valve With Cap

705400193

$6.69

202

FRONT COVER - Call your local BRP dealership

705401136

Unavailable

203

LH Knuckle And Ball Joint Kit 2012

703500788

$184.58

204

RH KNUCKLE - Call your local BRP dealership

703500789

Unavailable

205

Gasket | 4X4

705401618

$17.66

206

Ball Bearing | 4X4

705401606

$49.20

207

Ball Bearing | 4X4

705500260

$30.39

208

Seal | 4X4

705500265

$16.12

209

O-Ring | 4X4

705500267

$6.25

210

Fill Level Plug | 4X4

705500504

$7.61

211

Copper Washer | 4X4

705500506

$0.36

212

Screw | 4X4

705401601

$9.29

213

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

214

Drain Plug | 4X4

705500894

$11.06

215

CV Joint

705501238

Unavailable

216

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

217

1/2 Oz Weight

219704465

$4.35

218

1/2 Oz Weight

219704465

$4.35

219

Not Available As Spare Parts

XXX

Unavailable

220

Needle Bearing

705501408

$66.49

221

Ens Engrenage 10/36D *Gear-10/36 Too Kit

703500873

$433.82

222

Polyurethane Hose 10000Mm Long

219704410

$46.12

A

RH Front - Premium CV Axle | Includes 30 to 36

705401872

$232.74

B

LH Front - Premium CV Axle | Includes 39 to 45

705401871

$232.74

C*

Front Differential | Includes 8 to 31

703500907

$1,476.89

Ca*

Pinion Gear Shim 1.67 mm

705502061

$16.12

Cb*

Pinion Gear Shim .022"

705500075

Unavailable

Cc*

Pinion Gear Shim

705501162

$15.17

D

Hex. Flange Screw M10 X 50

207605044

$4.39

E

Hex. Flange Elastic Nut M10

233201414

$1.26
