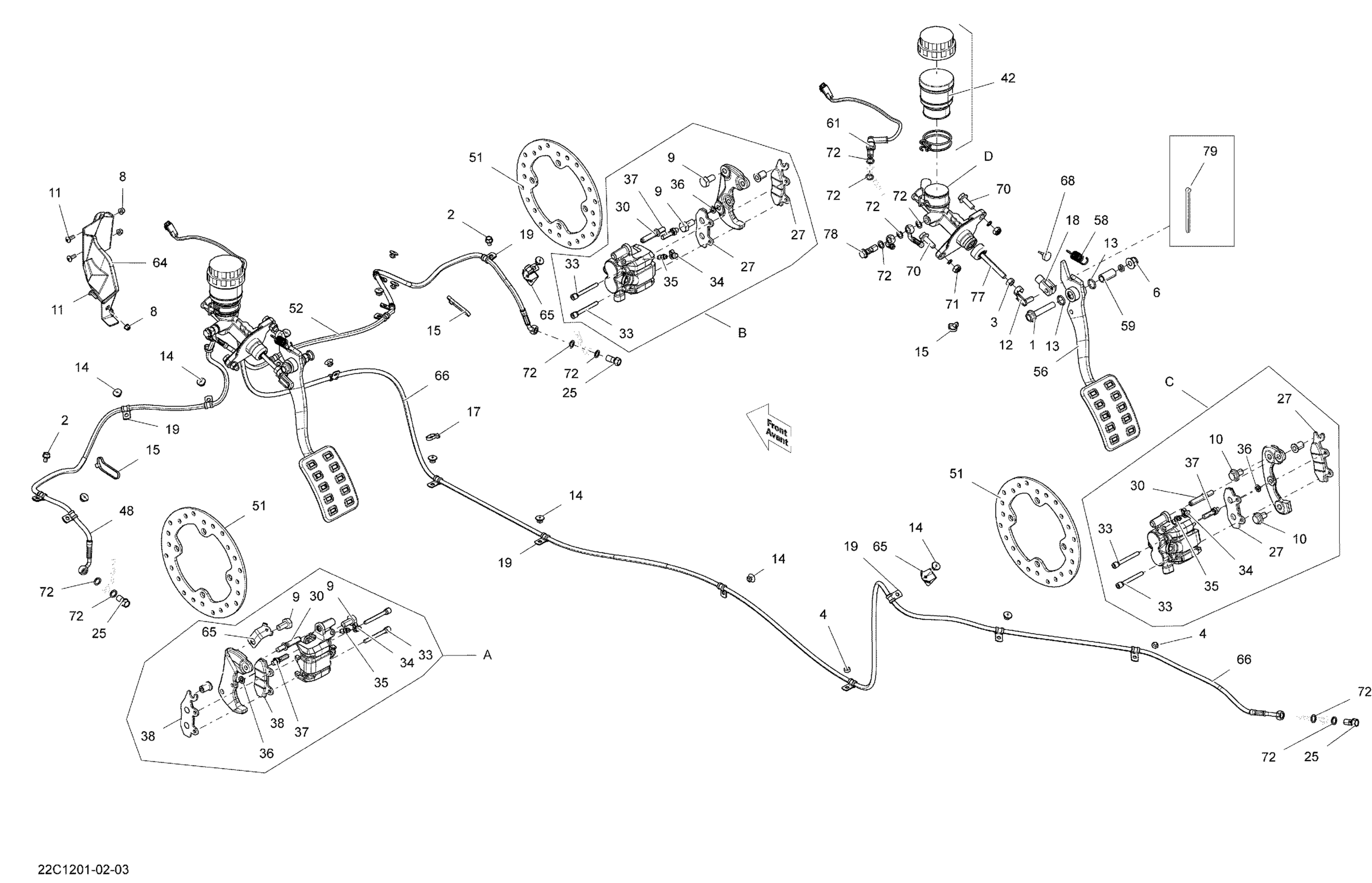

Can-Am Commander STD, XT, 800R EFI, 2012 Brakes Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 55

207605544

$2.78

2

Hex. Flange Screw M6 X 10

210261040

$1.25

3

Hex. Nut M8

232081414

$0.60

4

Elastic Stop Nut M6

232561414

$1.55

6

Hex. Flange Elastic Nut M10

233201414

$1.26

8

Elastic Flange Nut M5

233251494

$1.74

9

Hex. Screw M10 X 20, Scotch Grip

250000057

$3.98

10

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

11

Torx Screw M5 X 14

250000742

$1.20

12

Pin

250400062

$7.12

13

O-Ring

293300144

$3.98

14

Pop Rivet 3/16"

390406500

$0.70

15

Tie-Rap 180 mm

414115200

$0.09

17

Tie-Rap 180 mm

414115200

$0.09

18

Yoke

705600100

Unavailable

19

Clamp

293650256

$4.36

25

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

27

RH Brake Pad Kit

715500336

$49.39

30

Spring Boot Bolt Kit

715500383

$17.66

33

Sliding Pin Kit

715500337

$18.43

34

Bleeding Screw

705600080

$15.22

35

Bleeding Screw

705600080

$15.22

36

Not Available As Spare Part - Friction Washer

Unavailable

37

Spring Boot Bolt Kit

715500383

$17.66

38

LH Brake Pad Kit

715500335

Unavailable

42

Diaphragm Cap Kit

715500332

$27.66

48

LH Front Hose | Includes 15 to 16

705600943

$78.43

51

Brake Disc

705600684

$66.49

52

RH Front Hose | Includes 17 to 18

705601265

$83.05

56

Brake Pedal

705600724

$55.35

58

Brake Pedal Spring

705600792

$9.22

59

Inner Spacer

705600815

$10.98

61

Brake Switch

705601250

$59.97

64

LH Front Deflector

705600917

$7.60

65

Bracket

705601337

$2.69

66

Rear Flexible Hose | Includes 23 to 24

705600945

$143.05

68

Rubber Stopper

708000759

$3.61

70

Hex. Flange Screw M8 X 25

207682544

$0.90

71

Hex. Elastic Stop Nut M8

232581414

$0.47

72

Copper Washer

705601628

$4.34

77

Master Cylinder Rod

705600833

$18.43

78

Banjo Bolt

705600958

$7.60

79

Cotter Pin

371800700

$0.98

A

LH Caliper | Includes 6 to 10

705600679

$218.49

B

RH Caliper | Includes 1 to 5

705600678

$219.97

C

Rear Caliper | Includes 36 to 40

705600872

$219.97

D

Master Cylinder Ass'y | Includes 11 to 13

705601505

$230.74
