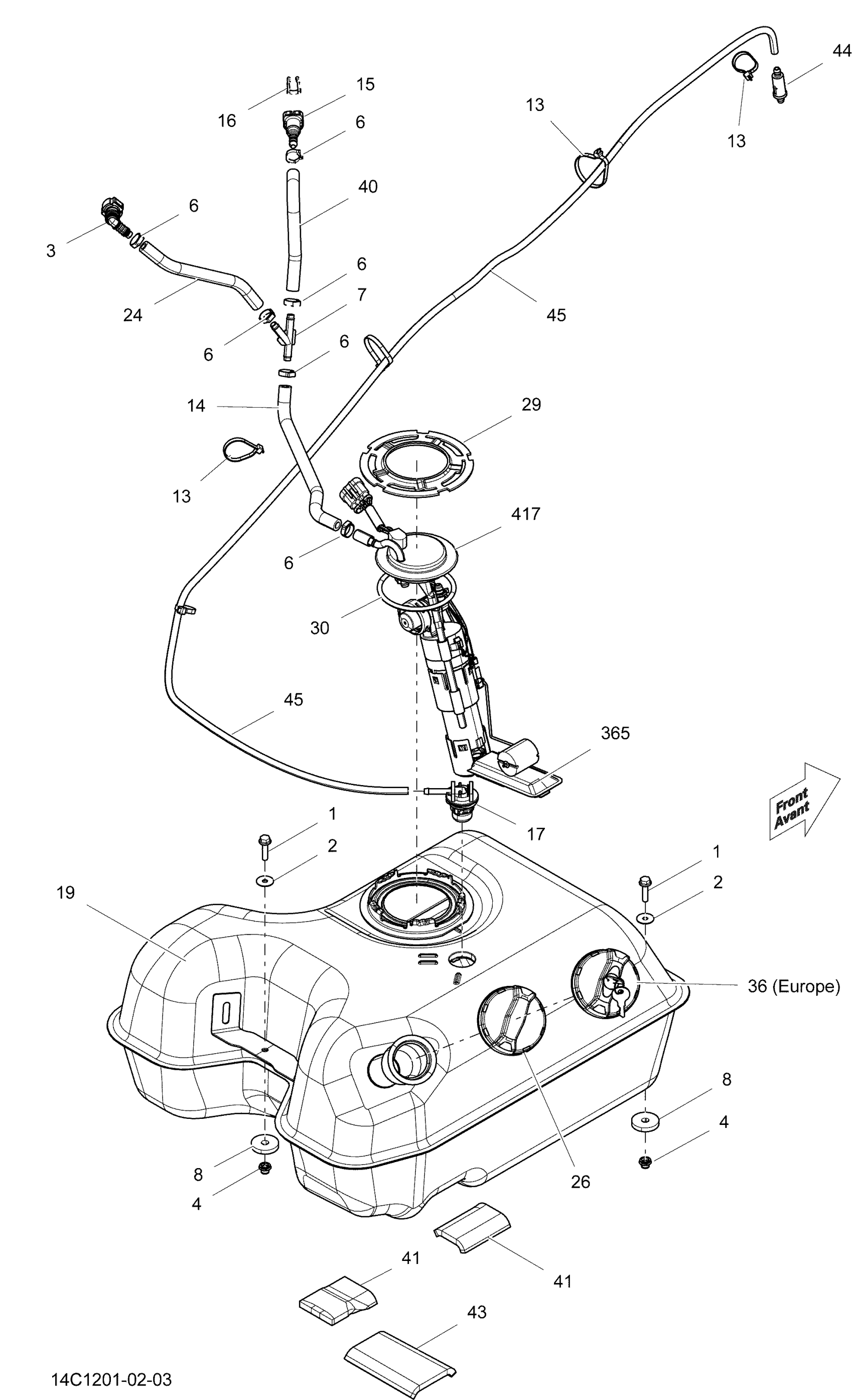

Can-Am Commander STD, XT, 800R EFI, 2012 Fuel System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 25

207662544

$0.61

2

Flat Washer

224060201

$1.12

3

Quick Attach 90°

275500700

$14.48

4

Threaded Insert M6 X 1.0

250100242

Unavailable

6

Oetiker Clamp

293650046

$2.67

7

Y-Fitting, 5/16''

293710136

$5.76

8

Rubber Washer

293830037

$2.68

13

Tie-Rap 180 mm

414115200

$0.10

14

Was 709000163 Fuel Line

219704440

$25.34

15

Female Quick Fitting Ass'y

709000125

$12.76

16

Locking Clip

513033135

$4.96

17

Rollover Valve

709000413

$50.72

19

Fuel Tank

709000753

Unavailable

24

Was 709000163 Fuel Line

219704440

$25.34

26

Fuel Cap | Except Europe

709000529

$28.18

29

Ring

709000274

$14.40

30

O-Ring

709000275

$15.64

36

FUEL CAP KIT - Call your local BRP dealership | Europe

715001124

Unavailable

40

Was 709000163 Fuel Line

219704440

$25.34

41

Neoprene Pad

709000288

$12.49

43

NEOPRENE PAD - Call your local BRP dealership

709000289

Unavailable

44

Filter

709000330

$7.48

45

Polyurethane Hose 10000Mm Long

219704410

$52.96

365

Fuel Pre-Filter Kit

709000389

$73.85

417

Fuel Pump | Includes 5 to 6

709000759

$353.87
