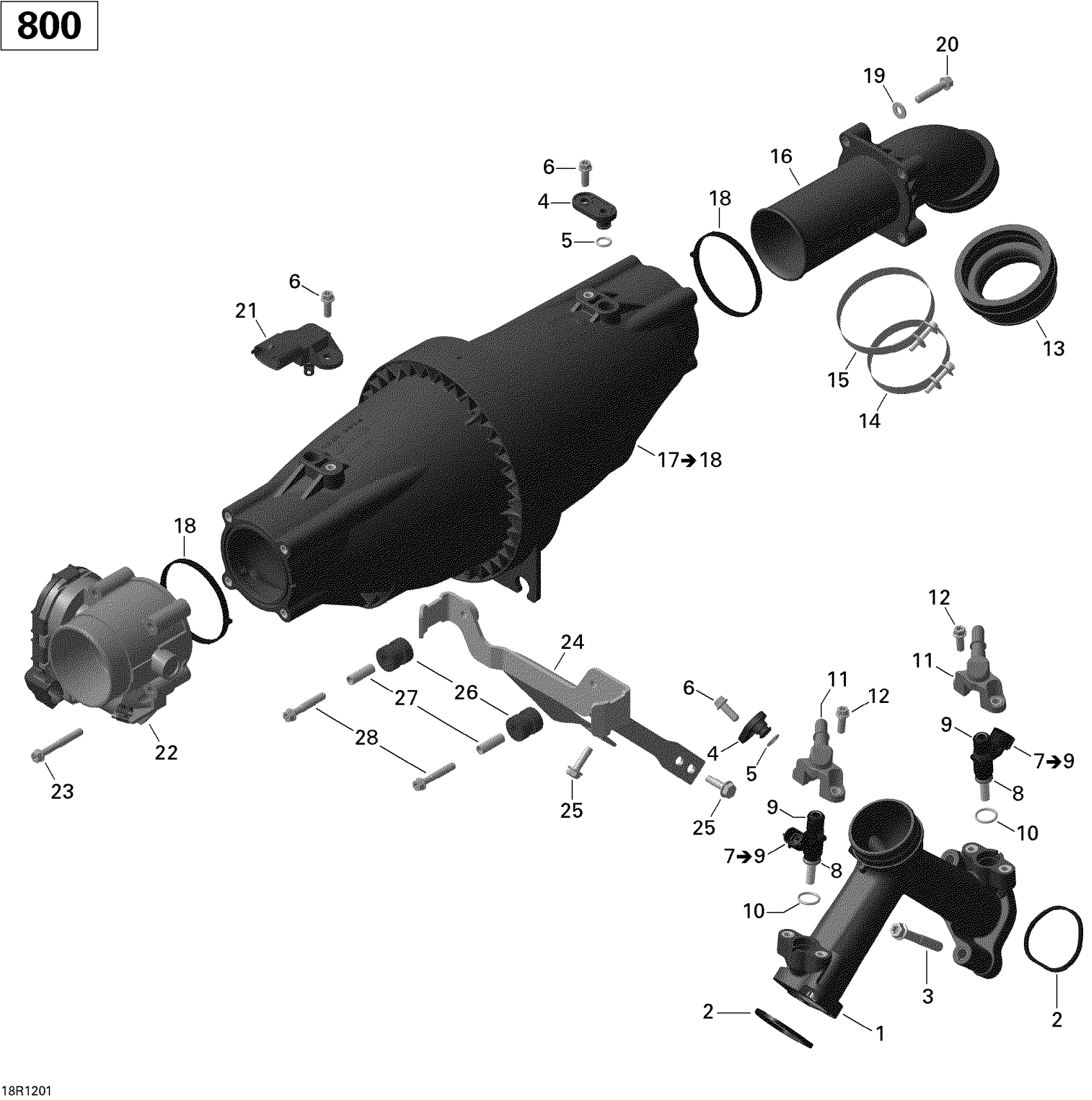

Can-Am Commander STD, XT, 800R EFI, 2012 Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold

420667581

$126.09

2

Gasket

420630642

$5.06

3

Torx Flange Screw M8 X 55

420641213

$7.01

4

Cover

420460980

$2.68

5

O-Ring

420230461

$0.96

6

Hex. Flange Screw M6 X 12

420440147

$1.91

7

Injection Valve Ass'y | Includes no. 7-9

420874886

Unavailable

8

O-Ring

420431890

$5.69

9

O-Ring

420631220

$13.18

10

O-Ring

420631296

$0.72

11

Fuel Rail

420874901

$22.36

12

Torx Flange Screw M6 X 16

420641048

$2.82

13

Intake Neck

420267045

$10.30

14

Clamp

420251480

$13.18

15

Clamp

420251209

$8.09

16

Air Inlet Manifold

420667522

$28.33

17

Air Inlet Manifold Ass'y | Includes 16 to 17

420667526

$166.39

18

Gasket | Included in gasket kit

420431900

$5.04

19

Flat Washer

224061121

$0.51

20

Torx Flange Screw M6 X 30

420440647

$1.91

21

Pressure And Temperature Sensor

707000995

$81.31

22

Throttle Body Socket Ass'y

420892596

$433.55

23

Torx Flange Screw M6 X 45

420641198

$3.88

24

Support

420651521

$73.10

25

Hex.Screw M6 X 20

420441311

$4.87

26

Rubber Bracket

420660090

$3.88

27

Spacer

420847971

$6.99

28

Hex. Screw M6 X 35

420441457

$3.73
