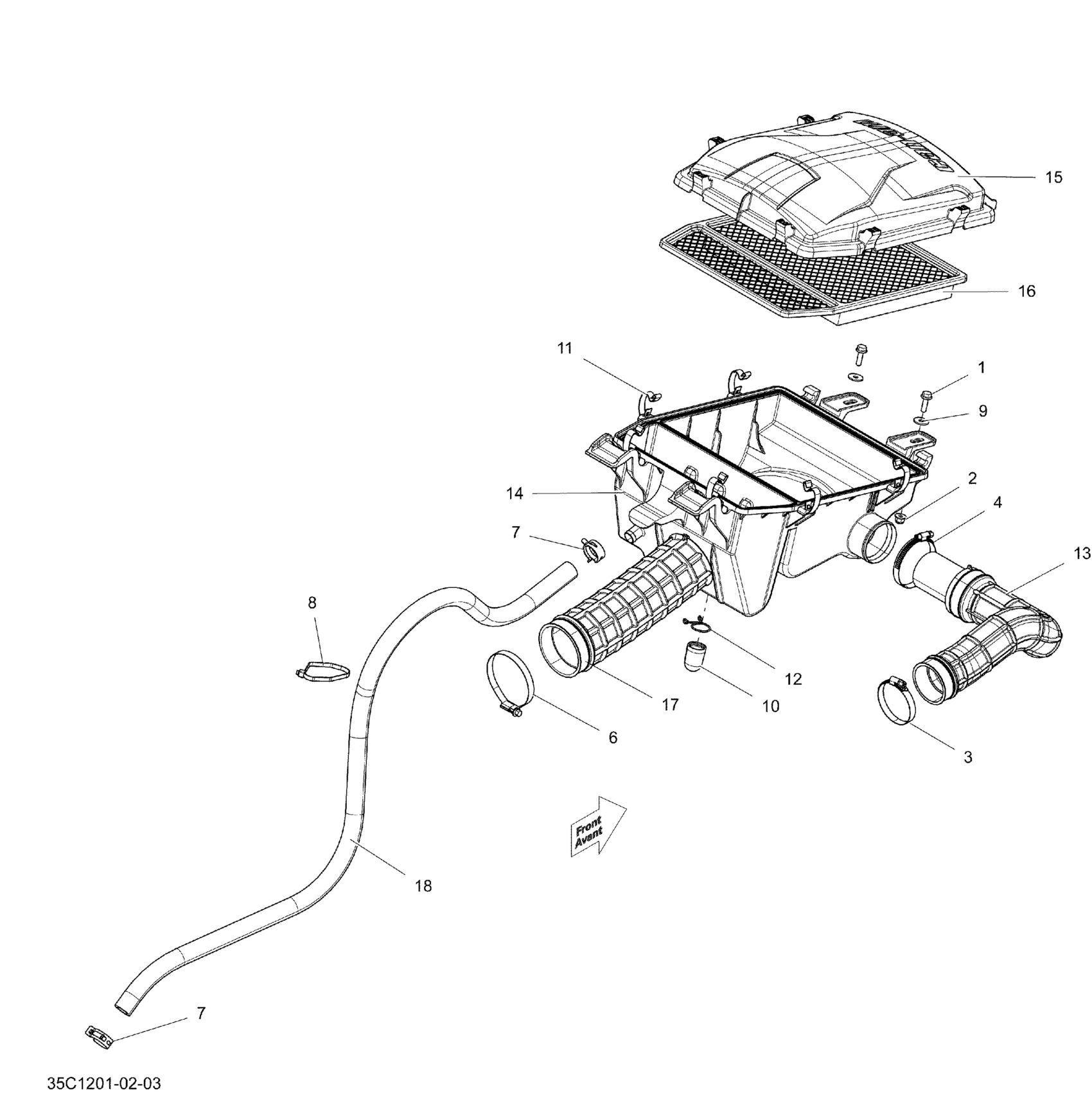

Can-Am Commander STD, XT, 800R EFI, 2012 Air Intake Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662044

$2.00

2

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

3

Norma Clamp

293650077

$7.41

4

Norma Clamp

293650079

$11.60

6

Norma Clamp

293650091

$11.12

7

Norma Spring Clamp

293650213

$3.17

8

Tie Wrap 368 mm

293750008

$1.04

9

Flat Washer

250200082

$0.42

10

Drain Tube

707800080

$8.29

11

Cover Bracket

707800249

$9.39

12

Retainer Clip

707800278

$13.99

13

Intake Adaptor

707800322

$61.99

14

Air Intake Silencer Base

707800517

$54.99

15

Air Intake Silencer Cover

707800326

$33.99

16

Air Filter

707800327

$52.99

17

Intake Adaptor

707800329

$48.99

18

Was 707800411 Hose 15.88 mm

219704438

$12.99
