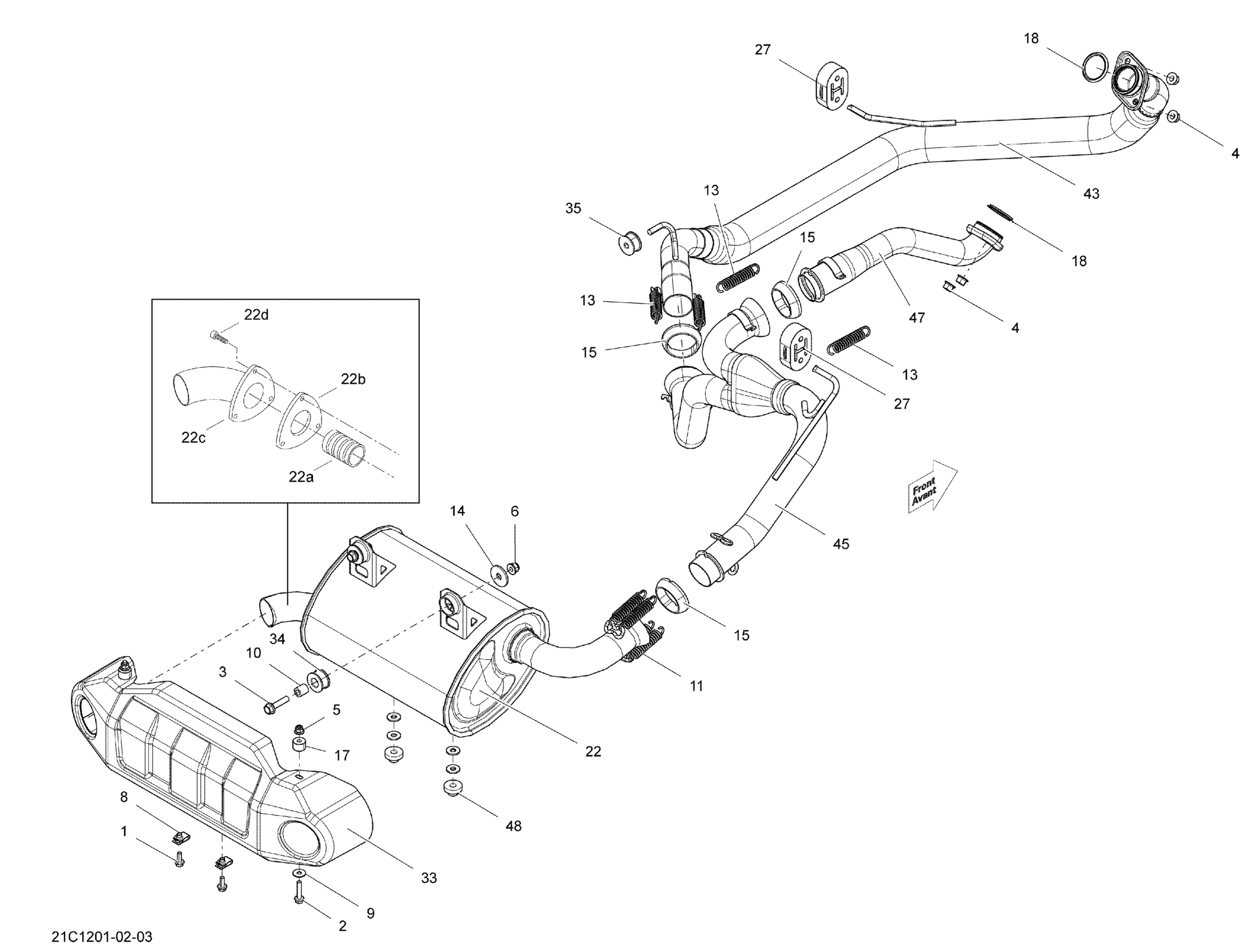

Can-Am Commander STD, XT, 800R EFI, 2012 Exhaust System Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 16

207661644

$0.70

2

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

3

Hex. Flange Screw M8 X 35

207683544

$1.60

4

Hex. Flange Nut M8

233081416

$1.87

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

6

Hex. Flange Elastic Nut M8

233281414

$1.31

8

Panel Nut M6 X 1.0

250100198

$1.99

9

Flat Washer

250200082

$0.40

10

Bushing

293900106

$4.28

11

Spring

415107100

$6.01

13

Spring

415107100

$6.01

14

Washer

503032900

$3.10

15

Exhaust Gasket

707601033

$13.04

17

Bushing

707000882

$3.33

18

Gasket

707600317

$10.21

22

MUFFLER_EXHAUST ASSY - Call your local BRP dealership | Includes 12 to 16

707600545

Unavailable

22

MUFFLER_EXHAUST ASSY - Call your local BRP dealership | Europe, Includes 12 to 16

707600753

Unavailable

27

Rubber Bumper

707600638

$13.51

33

Deflector

707600675

$39.52

34

Vibration Damper

707603323

$10.88

35

Anti-Vibration Rubber

707600702

$8.09

43

Front Head Pipe

707601203

$249.22

45

Link Head Pipe

707601020

$249.22

47

Rear Head Pipe

707601018

$139.52

48

Grommet

709200285

$8.13

22a

Spark Arrestor

707601803

$46.24

22b

Gasket

715900090

$11.46

22c

Muffler Outlet End Piece

715900091

$32.81

22d

Socket Head Screw M6 X 20

205062060

$2.21
