TAILLIGHT

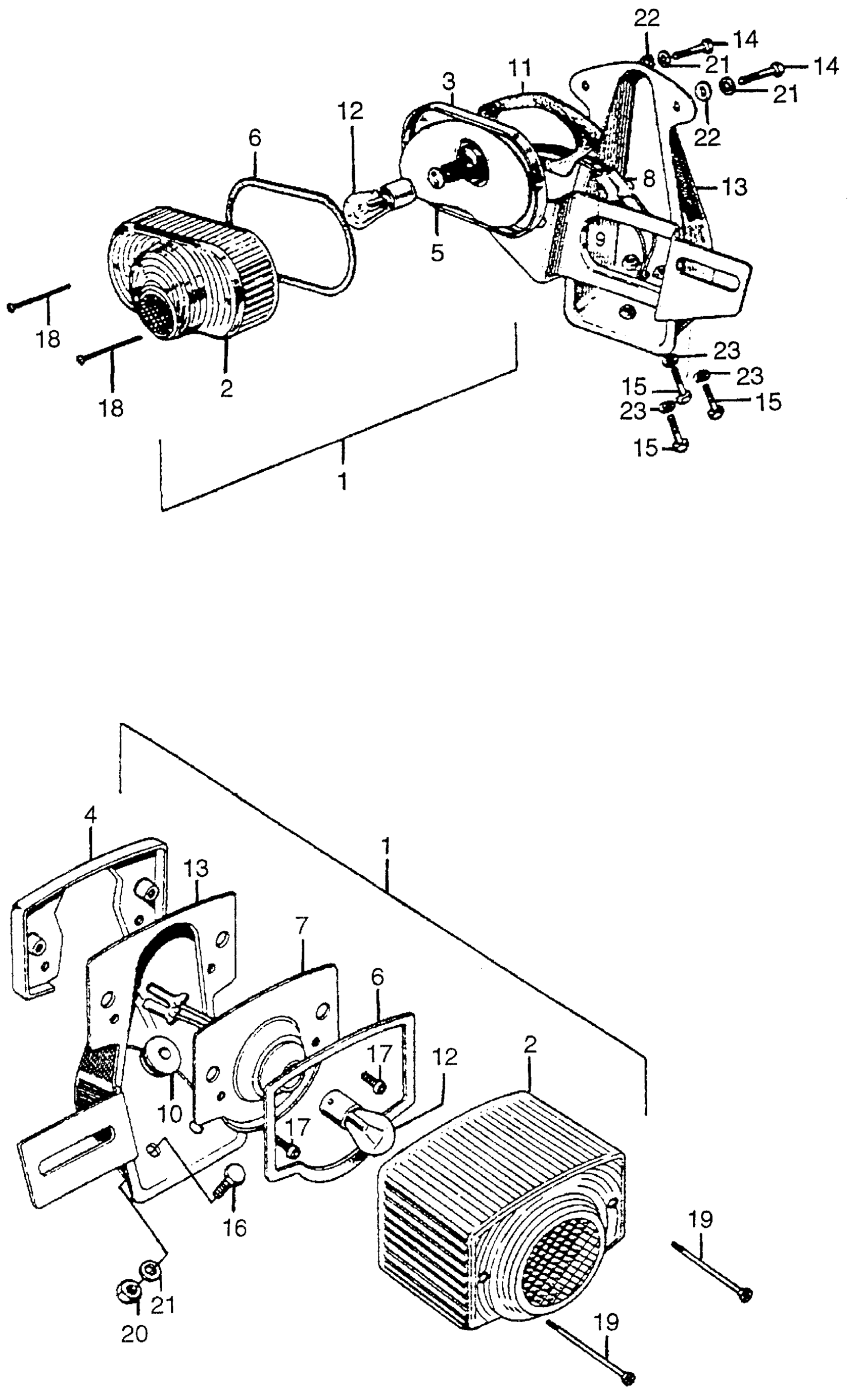

Honda CL77A MOTORCYCLE, JPN, VIN# CL77-1000001 TAILLIGHT Diagram
#
1
TAILLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 1000001 to 1043097
33700-268-601
Unavailable
1
TAILLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 1043098
33700-272-000
Unavailable
2
LENS, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN 1043098
33701-041-671
Unavailable
2
LENS, TAILLIGHT | Use from Frame SN 1000001 to 1043097
33701-268-680
Unavailable
3
BASE, TAILLIGHT (NOT AVAILABLE) This part replaces 33702-041-671.
33702-041-672
Unavailable
3
BASE, TAILLIGHT (NOT AVAILABLE)
33702-041-672
Unavailable
4
PLATE, TAILLIGHT LENS HOLDER | Use from Frame SN 1000001 to 1043097
33705-268-670
Unavailable
5
CABLE, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN 1043098
33707-272-000
Unavailable
6
GASKET, TAILLIGHT LENS (NOT AVAILABLE) | Use from Frame SN 1043098
33709-041-000
Unavailable
6
GASKET, TAILLIGHT LENS | Use from Frame SN 1000001 to 1043097
33709-268-810
Unavailable
7
SOCKET, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN 1000001 to 1043097
33710-268-610
Unavailable
8
SUB-WIRE, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN 1043098
33711-216-000
Unavailable
9
SUB-WIRE, STOP LIGHT (NOT AVAILABLE) | Use from Frame SN 1043098
33713-216-000
Unavailable
10
GROMMET B, TAILLIGHT CABLE (NOT AVAILABLE) | Use from Frame SN 1000001 to 1043097
33714-268-000
Unavailable
11
GASKET, TAILLIGHT BASE (NOT AVAILABLE) | Use from Frame SN 1043098
33719-041-300
Unavailable
12
BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 33551-568-610.
34906-313-671
$6.67
12
BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.
34906-313-671
$6.67
12
BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34906-268-810.
34906-313-671
$6.67
13
BRACKET, TAILLIGHT PLATE (NOT AVAILABLE) | Use from Frame SN 1043098
84701-268-020Z
Unavailable
13
BRACKET, TAILLIGHT (NOT AVAILABLE) | Use from Frame SN 1000001 to 1043097
84701-268-810Z
Unavailable
14
BOLT, HEX. (5X12) | Use from Frame SN 1043098 This part replaces 92000-05012-0B.
92101-05012-0B
$1.49
14
BOLT, HEX. (5X12) | Use from Frame SN 1043098 This part replaces 92000-05012-02.
92101-05012-0B
$1.49
15
BOLT, HEX. (6X12) | Use from Frame SN 1043098 This part replaces 92000-06012.
92101-06012-0A
$1.49
15
BOLT, HEX. (6X12) | Use from Frame SN 1043098 This part replaces 92101-06012.
92101-06012-0A
$1.49
16
BOLT, HEX. (6X16) | Use from Frame SN 1000001 to 1043097 This part replaces 92000-06016.
92101-06016-0A
$1.49
16
BOLT, HEX. (6X16) | Use from Frame SN 1000001 to 1043097 This part replaces 92000-06016-0A.
92101-06016-0A
$1.49
16
BOLT, HEX. (6X16) | Use from Frame SN 1000001 to 1043097 This part replaces 92000-06016-1A.
92101-06016-0A
$1.49
16
BOLT, HEX. (6X16) | Use from Frame SN 1000001 to 1043097 This part replaces 92100-06016-0A.
92101-06016-0A
$1.49
16
BOLT, HEX. (6X16) | Use from Frame SN 1000001 to 1043097 This part replaces 92200-06016-0A.
92101-06016-0A
$1.49
17
SCREW, PAN (4X10) | Use from Frame SN 1000001 to 1043097 This part replaces 93500-04010.
93500-04010-0A
$1.49
17
SCREW, PAN (4X10) | Use from Frame SN 1000001 to 1043097 This part replaces 93500-04010-1A.
93500-04010-0A
$1.49
18
SCREW, PAN (4X45) | Use from Frame SN 1043098
93500-04045-0B
Unavailable
18
SCREW, PAN (4X45) | Use from Frame SN 1043098 This part replaces 93500-04045-02.
93500-04045-0B
Unavailable
19
SCREW, OVAL (3X60) | Use from Frame SN 1000001 to 1043097 This part replaces 93700-03060.
93700-03060-0A
$0.98
19
SCREW, OVAL (3X60) | Use from Frame SN 1000001 to 1043097 This part replaces 93700-03060-0B.
93700-03060-0A
$0.98
19
SCREW, OVAL (3X60) | Use from Frame SN 1000001 to 1043097 This part replaces 93700-03060-02.
93700-03060-0A
$0.98
