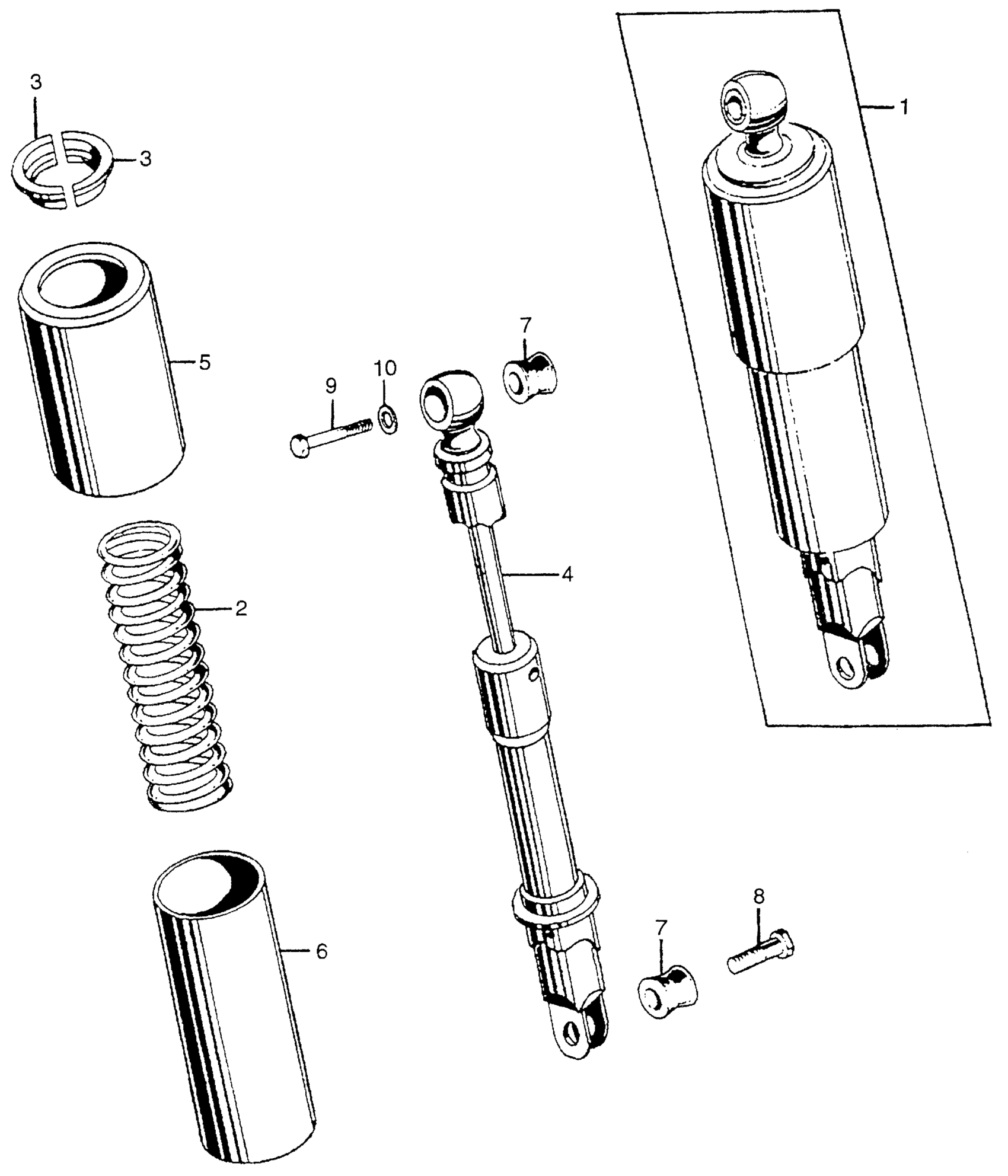

Honda CL77A MOTORCYCLE, JPN, VIN# CL77-1000001 REAR SHOCK ABSORBER Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY., RR. *NH1* (BLACK) (NOT AVAILABLE)

52400-273-010B

Unavailable

1

SHOCK ABSORBER ASSY., RR. *R2* (SCARLET) (NOT AVAILABLE)

52400-273-010C

Unavailable

1

SHOCK ABSORBER ASSY., RR. *PB5* (ROYAL BLUE) (NOT AVAILABLE)

52400-273-010E

Unavailable

2

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-273-010

Unavailable

3

STOPPER, SHOCK ABSORBER SPRING SEAT (NOT AVAILABLE) | Use from Frame SN 1000001 to 1033481

52424-268-000

Unavailable

3

STOPPER, SHOCK ABSORBER SPRING SEAT (NOT AVAILABLE) | Use from Frame SN 1033482 This part replaces 52424-273-000.

52424-268-000

Unavailable

4

CASE, RR. SHOCK ABSORBER (NOT AVAILABLE) | Use from Frame SN 1000001 to 1011178

52438-273-010

Unavailable

4

CASE, RR. SHOCK ABSORBER (NOT AVAILABLE) | Use from Frame SN 1011179

52438-273-020

Unavailable

5

CASE, RR. SHOCK ABSORBER (UPPER) *NH1* (BLACK) (NOT AVAILABLE) | Use from Frame SN 1000001 to 1011178

52460-273-000B

Unavailable

5

CASE, RR. SHOCK ABSORBER (UPPER) *R2* (SCARLET) (NOT AVAILABLE) | Use from Frame SN 1000001 to 1011178

52460-273-000C

Unavailable

5

CASE, RR. SHOCK ABSORBER (UPPER) *PB5* (ROYAL BLUE) (NOT AVAILABLE) | Use from Frame SN 1000001 to 1011178

52460-273-000E

Unavailable

5

CASE, RR. SHOCK ABSORBER (UPPER) *NH1* (BLACK) (NOT AVAILABLE) | Use from Frame SN 1011179

52523-268-010B

Unavailable

5

CASE, RR. SHOCK ABSORBER (UPPER) *R2* (SCARLET) (NOT AVAILABLE) | Use from Frame SN 1011179

52523-268-010C

Unavailable

5

CASE, RR. SHOCK ABSORBER (UPPER) *PB5* (ROYAL BLUE) (NOT AVAILABLE) | Use from Frame SN 1011179

52523-268-010E

Unavailable

6

CASE, RR. SHOCK ABSORBER (LOWER) (NOT AVAILABLE)

52465-273-000

Unavailable

7

BUSHING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52483-273-000

Unavailable

8

BOLT, SHOCK ABSORBER (LOWER) (NOT AVAILABLE) | Use from Frame SN 1011179

90107-216-010

Unavailable

8

BOLT, SHOCK ABSORBER (LOWER) (NOT AVAILABLE) | Use from Frame SN 1000001 to 1011178

90109-273-000

Unavailable

9

BOLT, SWINGARM (NOT AVAILABLE)

90107-273-000

Unavailable

10

WASHER, PLAIN (8MM)

94101-08200

$1.49
