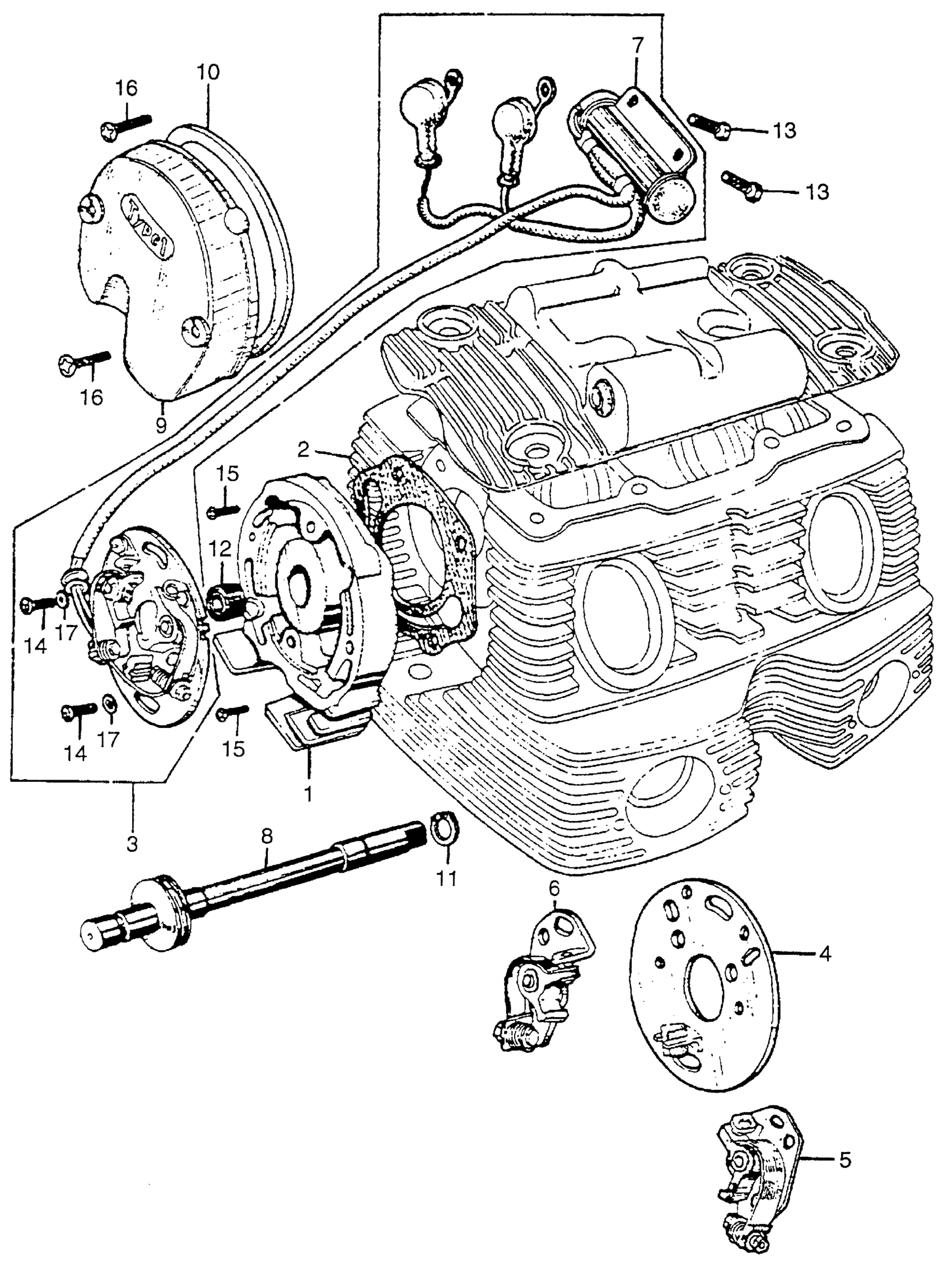

Honda CL77A MOTORCYCLE, JPN, VIN# CL77-1000001 POINTS Diagram

COVER, R. CYLINDER HEAD SIDE (NOT AVAILABLE)

12331-268-020

Unavailable

COVER, R. CYLINDER HEAD SIDE (NOT AVAILABLE) This part replaces 12331-268-030.

12331-268-020

Unavailable

GASKET, CYLINDER HEAD SIDE COVER (NOT AVAILABLE)

12391-258-000

Unavailable

POINTS ASSY. (NOT AVAILABLE)

30200-273-000

Unavailable

PLATE, POINTS BASE (NOT AVAILABLE)

30201-268-004

Unavailable

POINTS, R.

30203-268-004

Unavailable

POINTS, L.

30204-268-004

Unavailable

CONDENSER (NOT AVAILABLE)

30250-273-000

Unavailable

SHAFT, POINT (NOT AVAILABLE)

30310-268-010

Unavailable

COVER, POINT

30371-268-020

Unavailable

GASKET, POINTS COVER (NOT AVAILABLE)

30391-259-020

Unavailable

SET-RING (11MM) (NOT AVAILABLE)

90601-259-000

$3.59

OIL SEAL (16X28X7) This part replaces 91204-MC7-003.

91204-259-003

$5.60

OIL SEAL (16X28X7) This part replaces 91204-259-000.

91204-259-003

$5.60

OIL SEAL (16X28X7)

91204-259-003

$5.60

OIL SEAL (16X28X7) This part replaces 91205-360-000.

91204-259-003

$5.60

BOLT, HEX. (5X12) This part replaces 92000-05012.

92101-05012-0G

$1.49

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

BOLT, HEX. (5X12) This part replaces 93300-05012-1H.

92101-05012-0G

$1.49

SCREW, PAN (5X12) This part replaces 93500-05012.

93500-05012-0A

$1.49

SCREW, PAN (5X12)

93500-05012-0A

$1.49

SCREW, PAN (6X18) (SOURCE: VINTAGE PARTS INC.)

93500-06018-0B

Unavailable

SCREW, PAN (6X18) (SOURCE: VINTAGE PARTS INC.) This part replaces 93500-06018-02.

93500-06018-0B

Unavailable

SCREW, OVAL (5X30)

93700-05030

Unavailable

WASHER, PLAIN (5MM)

94101-05000

$1.49
