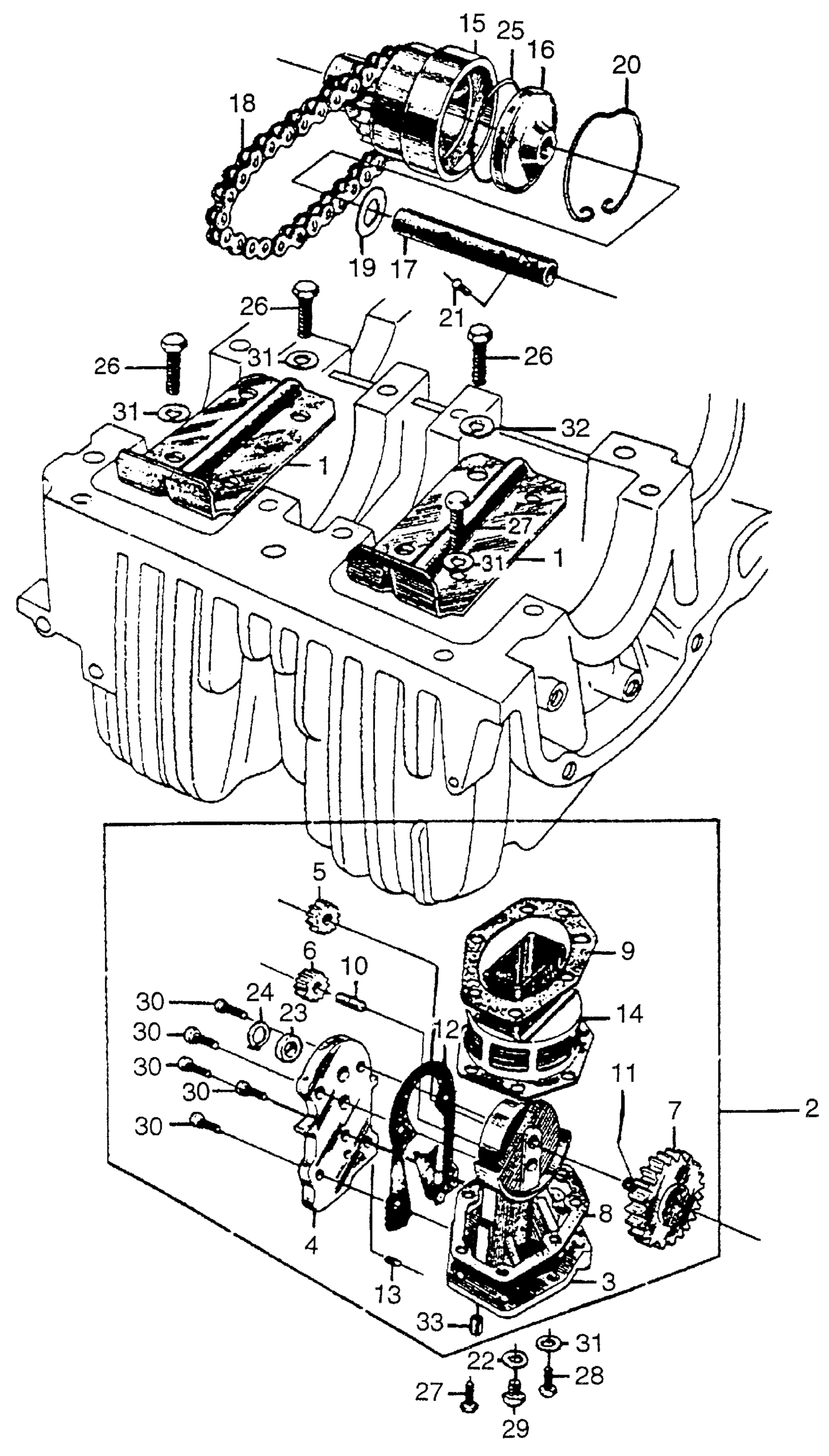

Honda CL77A MOTORCYCLE, JPN, VIN# CL77-1000001 OIL PUMP Diagram

#

Description
Price

1

SEPARATOR, OIL (NOT AVAILABLE)

11751-259-000

Unavailable

2

PUMP ASSY., OIL (NOT AVAILABLE)

15100-273-000

Unavailable

3

BODY, OIL PUMP

15110-273-000

Unavailable

4

COVER, OIL PUMP

15121-259-000

Unavailable

5

GEAR A, OIL PUMP (NOT AVAILABLE)

15131-250-000

Unavailable

6

GEAR B, OIL PUMP (NOT AVAILABLE)

15141-250-000

Unavailable

7

GEAR, OIL PUMP DRIVE (NOT AVAILABLE)

15180-268-323

Unavailable

8

GASKET A, OIL PUMP | Use from Engine SN 1000001 to 1016783

15191-259-000

Unavailable

8

GASKET B, OIL PUMP | Use from Engine SN 1016784 This part replaces 15192-259-000.

15192-259-306

Unavailable

9

GASKET B, OIL PUMP This part replaces 15192-259-000.

15192-259-306

Unavailable

10

PIN, OIL PUMP GEAR

15193-259-000

Unavailable

11

PIN, OIL PUMP GEAR LOCKING (NOT AVAILABLE)

15194-250-000

Unavailable

12

GASKET, OIL PUMP SIDE COVER (NOT AVAILABLE)

15196-259-000

Unavailable

13

PIN, OIL PUMP SIDE COVER (NOT AVAILABLE)

15199-250-000

Unavailable

14

STRAINER, OIL PUMP (NOT AVAILABLE)

15420-259-030

Unavailable

15

ROTOR, OIL FILTER (NOT AVAILABLE)

15440-259-030

Unavailable

16

CAP, ROTOR (NOT AVAILABLE)

15451-259-020

Unavailable

17

SHAFT, OIL FILTER (NOT AVAILABLE)

15471-259-000

Unavailable

18

CHAIN, FILTER This part replaces 15478-259-000.

15478-259-003

Unavailable

19

WASHER, FILTER ROTOR (NOT AVAILABLE)

15493-259-000

Unavailable

20

RING, OIL FILTER STOPPER (NOT AVAILABLE)

15494-259-020

Unavailable

21

PIN, OIL FILTER SHAFT STOPPER (NOT AVAILABLE)

15495-259-000

Unavailable

22

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

22

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

22

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

23

WASHER (9.5MM) (NOT AVAILABLE)

90485-259-000

Unavailable

24

RING, SNAP (9MM) (NOT AVAILABLE)

90654-700-000

Unavailable

25

O-RING (48.6X16MM) (NOT AVAILABLE)

91304-259-010

Unavailable

26

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

26

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

26

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

27

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

27

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

28

BOLT, HEX. (6X35) This part replaces 92000-06035.

92101-06035-0A

$1.77

28

BOLT, HEX. (6X35) This part replaces 92000-06035-0A.

92101-06035-0A

$1.77

28

BOLT, HEX. (6X35)

92101-06035-0A

$1.77

29

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

30

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

30

SCREW, PAN (6X16)

93500-06016-0A

$1.49

31

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

31

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

31

WASHER, PLAIN (6MM)

94101-06800

$1.49

32

WASHER, SPRING (6MM)

94111-06000

$1.49

33

PIN A, DOWEL (10X14)

94301-10140

$2.28
