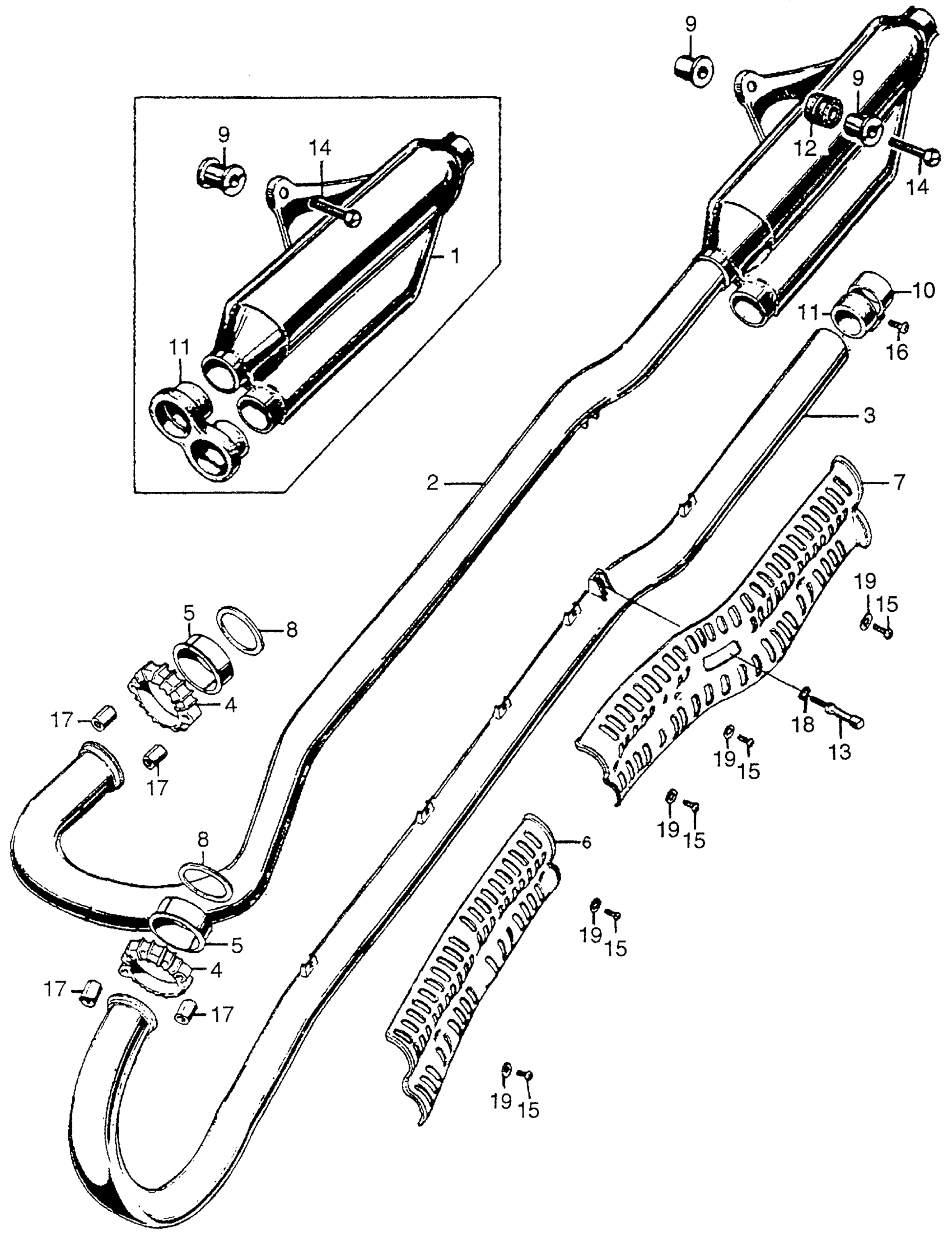

Honda CL77A MOTORCYCLE, JPN, VIN# CL77-1000001 MUFFLER Diagram

#

Description
Price

1

MUFFLER, EX. (NOT AVAILABLE) | Use from Frame SN 1000001 to 1033481

18209-277-000

Unavailable

2

PIPE, R. EX. (NOT AVAILABLE) | Use from Frame SN 1000001 to 1033481

18210-273-000

Unavailable

2

PIPE, R. EX. (NOT AVAILABLE) | Use from Frame SN 1033482

18330-277-000

Unavailable

3

PIPE, L. EX. (NOT AVAILABLE) This part replaces 18220-273-000.

18220-273-010

Unavailable

3

PIPE, L. EX. (NOT AVAILABLE)

18220-273-010

Unavailable

3

PIPE, L. EX. (NOT AVAILABLE) | Use from Frame SN 1033482 to 1046211

18220-277-000

Unavailable

3

PIPE, L. EX. (NOT AVAILABLE) | Use from Frame SN 1046212

18220-277-010

Unavailable

4

JOINT, EX. PIPE (NOT AVAILABLE)

18231-273-000

Unavailable

5

COLLAR, EX. PIPE JOINT (NOT AVAILABLE)

18233-273-000

Unavailable

6

PROTECTOR A, EX. PIPE (NOT AVAILABLE)

18240-273-000

Unavailable

7

PROTECTOR B, EX. PIPE (NOT AVAILABLE) | Use from Frame SN 1000001 to 1046211

18250-273-000

Unavailable

7

PROTECTOR B, EX. PIPE (NOT AVAILABLE) | Use from Frame SN 1046212

18250-273-010

Unavailable

8

GASKET, EX. PIPE

18291-MM5-860

$5.17

8

GASKET, EX. PIPE This part replaces 18291-254-000.

18291-MM5-860

$5.17

9

COLLAR, DISTANCE (NOT AVAILABLE) | Use from Frame SN 1000001 to 1033481

18357-277-000

Unavailable

9

COLLAR, DISTANCE (NOT AVAILABLE) | Use from Frame SN 1033482

18357-277-010

Unavailable

10

BAND, R. MUFFLER (NOT AVAILABLE) | Use from Frame SN 1033482 This part replaces 18371-277-000.

18371-286-300

Unavailable

10

BAND, R. MUFFLER (NOT AVAILABLE) | Use from Frame SN 1033482 This part replaces 18371-294-000.

18371-286-300

Unavailable

11

GASKET, MUFFLER (NOT AVAILABLE) | Use from Frame SN 1000001 to 1033481

18391-277-010

Unavailable

11

GASKET, MUFFLER This part replaces 18391-294-000.

18392-MK4-000

$13.66

11

GASKET, MUFFLER This part replaces 18391-317-000.

18392-MK4-000

$13.66

11

GASKET, MUFFLER This part replaces 18391-317-010.

18392-MK4-000

$13.66

11

GASKET, MUFFLER

18392-MK4-000

$13.66

12

RUBBER, RR. FENDER MOUNTING (NOT AVAILABLE) | Use from Frame SN 1033482

80143-273-670

Unavailable

13

BOLT, EX. PIPE SETTING (NOT AVAILABLE)

90165-273-000

Unavailable

14

BOLT, HEX. (8X45) This part replaces 92000-08045.

92101-08045-0A

$2.13

14

BOLT, HEX. (8X45) This part replaces 92000-08045-0A.

92101-08045-0A

$2.13

14

BOLT, HEX. (8X45) This part replaces 92000-08045-00.

92101-08045-0A

$2.13

14

BOLT, HEX. (8X58) (SOURCE: VINTAGE PARTS INC.) | Use from Frame SN 1033482 This part replaces 92000-08058.

92101-08058-0A

Unavailable

14

BOLT, HEX. (8X58) (SOURCE: VINTAGE PARTS INC.) | Use from Frame SN 1033482 This part replaces 92000-08058-0A.

92101-08058-0A

Unavailable

14

BOLT, HEX. (8X45)

92101-08045-0A

$2.13

14

BOLT, HEX. (8X58) (SOURCE: VINTAGE PARTS INC.) | Use from Frame SN 1033482

92101-08058-0A

Unavailable

15

SCREW, PAN (6X12) | Use from Frame SN 1000001 to 1046211 This part replaces 93500-06012.

93500-06012-0A

$1.49

15

SCREW, PAN (6X12) | Use from Frame SN 1046212 This part replaces 93500-06012.

93500-06012-0A

$1.49

15

SCREW, PAN (6X12) | Use from Frame SN 1000001 to 1046211

93500-06012-0A

$1.49

15

SCREW, PAN (6X12) | Use from Frame SN 1046212

93500-06012-0A

$1.49

15

SCREW, PAN (6X12) | Use from Frame SN 1000001 to 1046211 This part replaces 93500-06012-00.

93500-06012-0A

$1.49

15

SCREW, PAN (6X12) | Use from Frame SN 1046212 This part replaces 93500-06012-00.

93500-06012-0A

$1.49

16

SCREW, PAN (6X18) | Use from Frame SN 1033482 This part replaces 93500-06018.

93500-06018-0A

$1.49

16

SCREW, PAN (6X18) | Use from Frame SN 1033482

93500-06018-0A

$1.49

17

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

18

WASHER, PLAIN (8MM)

94101-08000

$1.49

19

WASHER, SPRING (6MM) | Use from Frame SN 1000001 to 1046211

94111-06000

$1.49

19

WASHER, SPRING (6MM) | Use from Frame SN 1046212

94111-06000

$1.49
