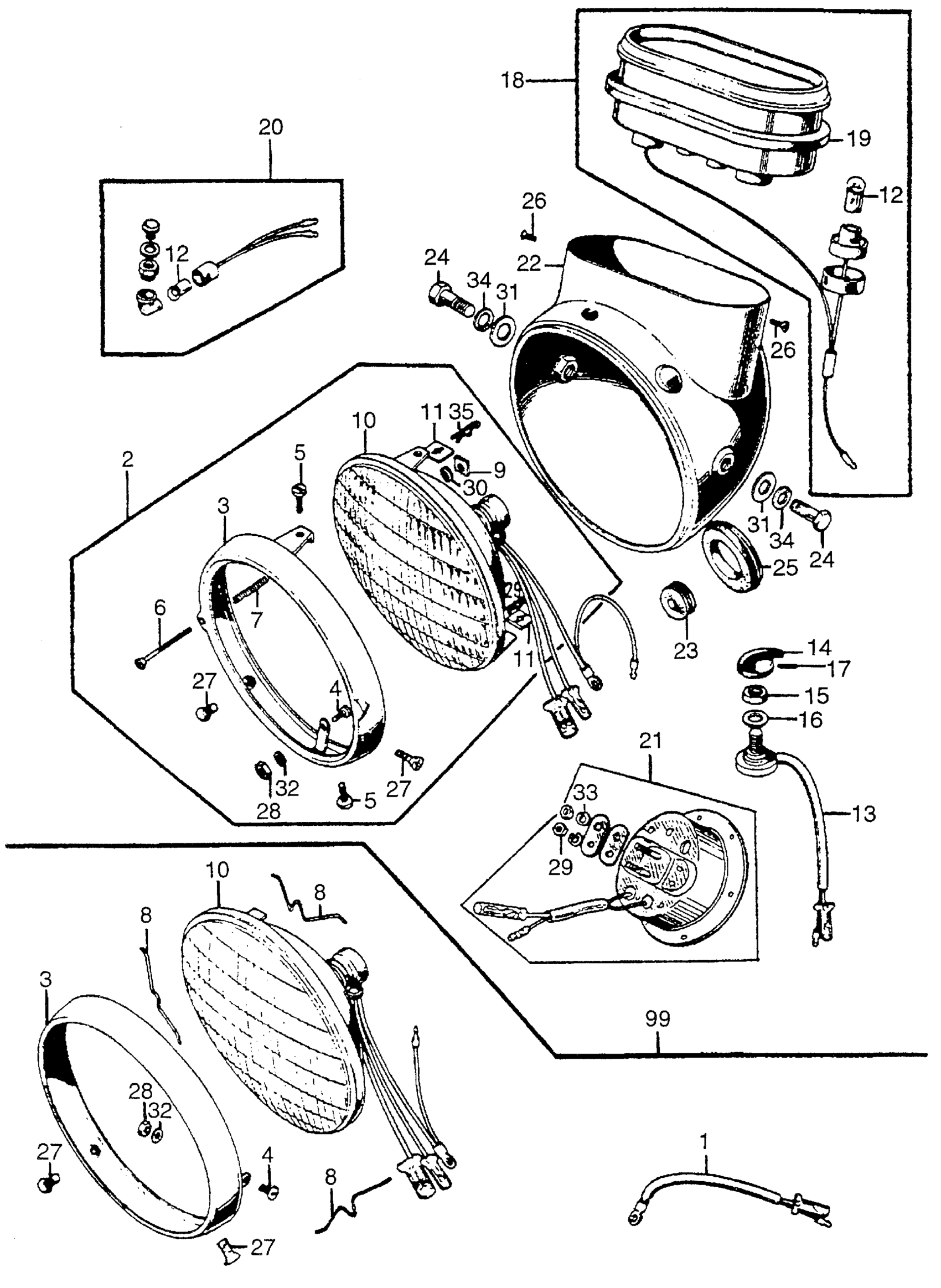

Honda CL77A MOTORCYCLE, JPN, VIN# CL77-1000001 HEADLIGHT + SPEEDOMETER Diagram

#

Description
Price

NI

HEADLIGHT ASSY. (NOT AVAILABLE)

33100-268-672

Unavailable

1

WIRE HARNESS C

32111-273-670

Unavailable

2

HEADLIGHT ASSY. | Use from Frame SN 1042143

33100-283-000

Unavailable

3

RIM, HEADLIGHT (NOT AVAILABLE) | Use from Frame SN 1000001 to 1042142

33101-268-672

Unavailable

4

SCREW (3MM) (NOT AVAILABLE) This part replaces 33102-200-000.

33102-200-003

Unavailable

4

SCREW (3MM) (NOT AVAILABLE)

33102-200-003

Unavailable

5

SCREW, UNIT HOLDER (NOT AVAILABLE) | Use from Frame SN 1042143

33102-283-000

Unavailable

6

SCREW, HEADLIGHT BEAM ADJ. | Use from Frame SN 1042143

33103-200-020

Unavailable

7

SPRING, HEADLIGHT BEAM ADJUSTING | Use from Frame SN 1042143

33107-200-023

$3.01

8

SPRING, UNIT HOLDER | Use from Frame SN 1000001 to 1042142

33108-268-000

Unavailable

9

NUT, HEADLIGHT BEAM ADJ. (NOT AVAILABLE) | Use from Frame SN 1042143

33117-200-023

Unavailable

10

SEALED BEAM UNIT (NOT AVAILABLE) | Use from Frame SN 1000001 to 1042142

33120-268-670

Unavailable

10

HEADLIGHT UNIT (NOT AVAILABLE) | Use from Frame SN 1042143

33120-283-000

Unavailable

11

NUT, UNIT HOLDER | Use from Frame SN 1042143 This part replaces 33128-200-030.

33128-292-670

$2.94

11

NUT, UNIT HOLDER | Use from Frame SN 1042143

33128-292-670

$2.94

12

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

13

SWITCH ASSY., LIGHTING This part replaces 35150-270-000.

35150-270-003

Unavailable

13

SWITCH ASSY., LIGHTING

35150-270-003

Unavailable

14

KNOB, LIGHT SWITCH (NOT AVAILABLE) This part replaces 35151-268-000.

35151-292-751

Unavailable

14

KNOB, LIGHT SWITCH (NOT AVAILABLE)

35151-292-751

Unavailable

15

NUT, LIGHT SWITCH (NOT AVAILABLE)

35152-268-000

Unavailable

16

WASHER, LIGHTING SWITCH (NOT AVAILABLE)

35153-268-000

Unavailable

17

SCREW, SETTING

35154-268-000

Unavailable

18

SPEEDOMETER ASSY. (NOT AVAILABLE)

37200-273-810

Unavailable

19

GASKET, SPEEDOMETER (NOT AVAILABLE)

37242-270-000

Unavailable

20

LAMP ASSY., PILOT (NOT AVAILABLE)

37700-272-000

Unavailable

21

HORN ASSY. (NOT AVAILABLE)

38100-273-000

Unavailable

22

CASE, HEADLIGHT

61301-273-811Z

Unavailable

23

BUSHING, HORN RUBBER (NOT AVAILABLE)

61302-273-000

Unavailable

24

BOLT, LIGHT CASE SETTING (NOT AVAILABLE)

90154-268-000

Unavailable

25

GASKET, HORN RUBBER (NOT AVAILABLE)

61303-273-000

Unavailable

26

SCREW, PAN (4X6) This part replaces 93500-04006.

93500-04006-0A

$1.49

26

SCREW, PAN (4X6)

93500-04006-0A

$1.49

26

SCREW, PAN (4X6) This part replaces 93500-04006-1A.

93500-04006-0A

$1.49

27

SCREW, FLAT (5X8) (NOT AVAILABLE) | Use from Frame SN 1000001 to 1042142

93600-05008

Unavailable

27

SCREW, OVAL (5X10) (SOURCE: VINTAGE PARTS INC.) | Use from Frame SN 1042143

93700-05010-0B

Unavailable

27

SCREW, OVAL (5X10) (SOURCE: VINTAGE PARTS INC.) | Use from Frame SN 1042143 This part replaces 93700-05010-02.

93700-05010-0B

Unavailable

28

NUT, HEX. (3MM) (SOURCE: VINTAGE PARTS INC.)

94001-03000

Unavailable

28

NUT, HEX. (3MM)

94001-03000-0S

$1.49

29

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.74

29

NUT, HEX. (5MM)

94001-05000-0S

$2.74

30

WASHER, PLAIN (4MM)

94101-04000

$1.49

31

WASHER, PLAIN (10MM)

94101-10000

$1.49

32

WASHER, SPRING (3MM)

94111-03000

$1.49

33

WASHER, SPRING (5MM)

94111-05000

$1.49

34

WASHER, SPRING (8MM)

94111-10000

$1.49

35

PIN, LOCK (5MM)

94251-05000

$1.49
