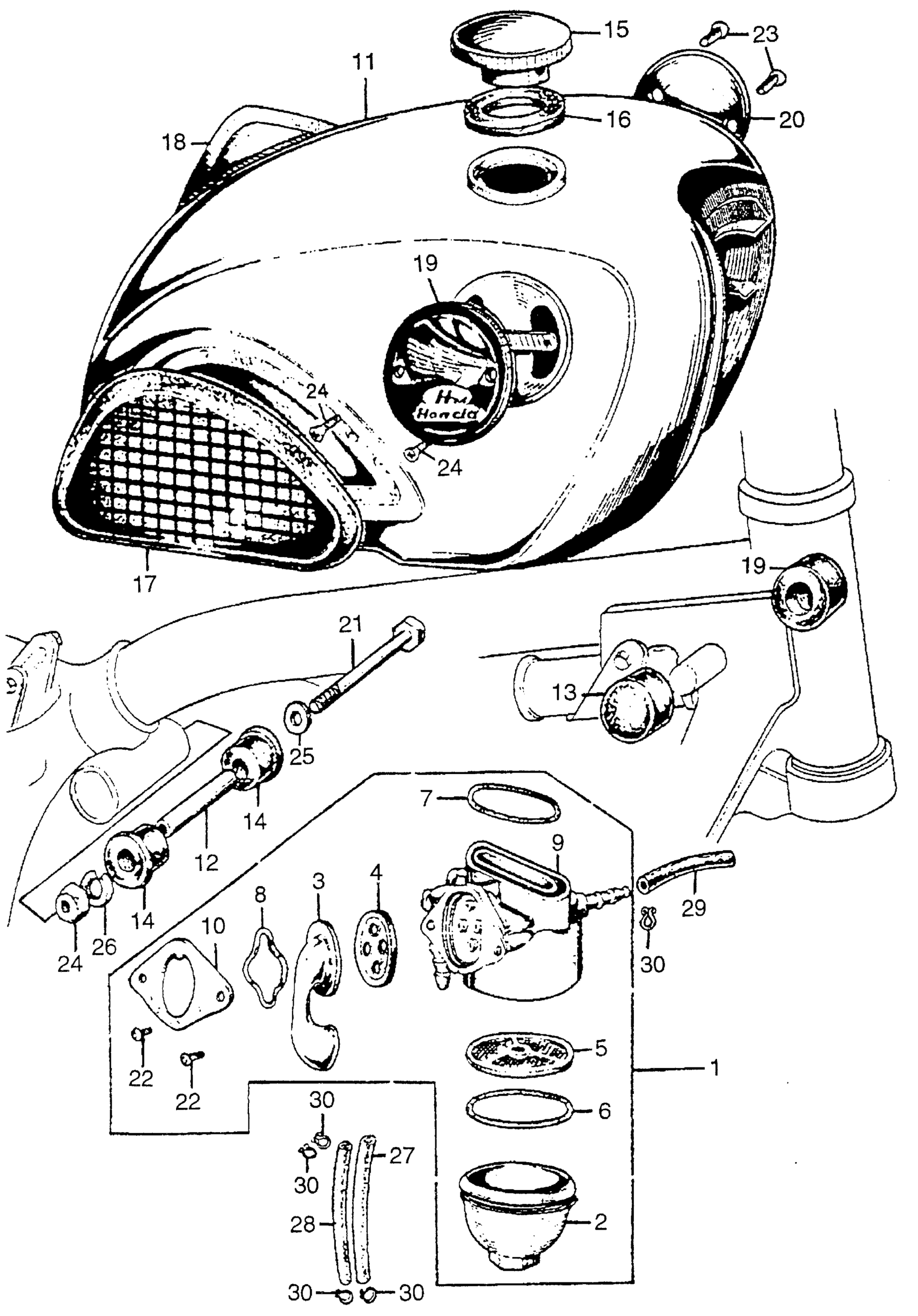

Honda CL77A MOTORCYCLE, JPN, VIN# CL77-1000001 FUEL TANK Diagram

#

Description
Price

1

PETCOCK ASSY. (NOT AVAILABLE) This part replaces 16950-273-000.

16950-273-305

Unavailable

1

PETCOCK ASSY. (NOT AVAILABLE) This part replaces 16950-273-010.

16950-273-305

Unavailable

1

PETCOCK ASSY. (NOT AVAILABLE)

16950-273-305

Unavailable

2

CUP, FUEL STRAINER

16952-268-000

Unavailable

3

LEVER, VALVE (NOT AVAILABLE)

16953-268-020

Unavailable

4

GASKET, VALVE

16955-268-020

$5.08

5

SCREEN, FUEL STRAINER

16957-268-010

$11.38

6

GASKET, FUEL STRAINER CUP

16958-268-010

$8.89

7

GASKET, PETCOCK BODY This part replaces 16960-011-000.

16997-273-006

$6.74

7

GASKET, PETCOCK BODY

16997-273-006

$6.74

8

SPRING, PETCOCK LEVER

16960-268-010

Unavailable

9

PETCOCK ASSY. (NOT AVAILABLE) | Use from Frame SN 1043098 This part replaces 16950-216-000.

16950-273-305

Unavailable

9

PETCOCK ASSY. (NOT AVAILABLE) | Use from Frame SN 1043098 This part replaces 16950-273-000.

16950-273-305

Unavailable

9

PETCOCK ASSY. (NOT AVAILABLE) | Use from Frame SN 1043098 This part replaces 16950-273-010.

16950-273-305

Unavailable

9

PETCOCK ASSY. (NOT AVAILABLE) | Use from Frame SN 1043098

16950-273-305

Unavailable

9

PETCOCK ASSY. (NOT AVAILABLE) | Use from Frame SN 1000001 to 1043097 This part replaces 16960-273-000.

16950-273-305

Unavailable

9

PETCOCK ASSY. (NOT AVAILABLE) | Use from Frame SN 1043098 This part replaces 16960-273-010.

16950-273-305

Unavailable

10

PLATE, PETCOCK LEVER SETTING (NOT AVAILABLE)

16961-268-010

Unavailable

11

TANK, FUEL *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) This part replaces 17500-273-000S.

17500-273-405S

Unavailable

11

TANK, FUEL *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) This part replaces 17500-273-010S.

17500-273-405S

Unavailable

11

TANK, FUEL *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE)

17500-273-405S

Unavailable

11

TANK, FUEL *NH10M* (DARK SILVER METALLIC) (NOT AVAILABLE) | Use from Frame SN 1000001 to 1043097 This part replaces 17500-273-810S.

17500-273-405S

Unavailable

12

COLLAR, FUEL TANK DISTANCE (NOT AVAILABLE)

17601-273-000

Unavailable

13

RUBBER, FR. FUEL TANK (NOT AVAILABLE)

17611-273-000

Unavailable

14

CUSHION, RR. FUEL TANK (NOT AVAILABLE)

17613-273-000

Unavailable

15

CAP, FUEL FILLER This part replaces 17620-259-000.

17620-402-020

$17.03

15

CAP, FUEL FILLER This part replaces 17620-292-020.

17620-402-020

$17.03

15

CAP, FUEL FILLER This part replaces 17620-317-000.

17620-402-020

$17.03

15

CAP, FUEL FILLER This part replaces 17620-329-000.

17620-402-020

$17.03

15

CAP, FUEL FILLER This part replaces 17620-329-010.

17620-402-020

$17.03

15

CAP, FUEL FILLER This part replaces 17620-402-000.

17620-402-020

$17.03

15

CAP, FUEL FILLER This part replaces 17620-402-010.

17620-402-020

$17.03

16

GASKET (39X58X3) This part replaces 17631-259-000.

17631-ZE1-000

$2.85

16

GASKET (39X58X3) This part replaces 17631-329-000.

17631-ZE1-000

$2.85

16

GASKET (39X58X3) This part replaces 17631-329-003.

17631-ZE1-000

$2.85

17

RUBBER, R. KNEE GRIP (NOT AVAILABLE)

17661-273-000

Unavailable

18

RUBBER, L. KNEE GRIP (NOT AVAILABLE)

17662-273-000

Unavailable

19

EMBLEM, R. FUEL TANK This part replaces 87121-215-000.

87121-230-010

Unavailable

19

EMBLEM, R. FUEL TANK This part replaces 87121-224-000.

87121-230-010

Unavailable

19

EMBLEM, R. FUEL TANK This part replaces 87121-230-000.

87121-230-010

Unavailable

19

EMBLEM, R. FUEL TANK

87121-230-010

Unavailable

19

EMBLEM, R. FUEL TANK This part replaces 87121-237-680.

87121-230-010

Unavailable

19

EMBLEM, R. FUEL TANK This part replaces 87121-279-810.

87121-230-010

Unavailable

20

EMBLEM, L. FUEL TANK This part replaces 87122-215-000.

87122-230-010

Unavailable

20

EMBLEM, L. FUEL TANK This part replaces 87122-224-000.

87122-230-010

Unavailable

20

EMBLEM, L. FUEL TANK This part replaces 87122-230-000.

87122-230-010

Unavailable

20

EMBLEM, L. FUEL TANK

87122-230-010

Unavailable

20

EMBLEM, L. FUEL TANK This part replaces 87122-237-680.

87122-230-010

Unavailable

20

EMBLEM, L. FUEL TANK This part replaces 87122-279-810.

87122-230-010

Unavailable

21

BOLT, HEX. (8X75) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-08075.

92101-08075-0A

Unavailable

21

BOLT, HEX. (8X75) (SOURCE: VINTAGE PARTS INC.) This part replaces 92000-08075-0A.

92101-08075-0A

Unavailable

21

BOLT, HEX. (8X75) (SOURCE: VINTAGE PARTS INC.)

92101-08075-0A

Unavailable

22

SCREW, PAN (3X6) (NOT AVAILABLE) This part replaces 93500-03005-0B.

93500-03006-0B

Unavailable

22

SCREW, PAN (3X6) (NOT AVAILABLE) This part replaces 93500-03006.

93500-03006-0B

Unavailable

22

SCREW, PAN (3X6) (NOT AVAILABLE)

93500-03006-0B

Unavailable

22

SCREW, PAN (3X6) (NOT AVAILABLE) This part replaces 93500-03006-02.

93500-03006-0B

Unavailable

23

SCREW, PAN (3X10) (NOT AVAILABLE)

93500-03010-0B

Unavailable

23

SCREW, PAN (3X10) (NOT AVAILABLE) This part replaces 93500-03010-02.

93500-03010-0B

Unavailable

24

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

24

NUT, HEX. (8MM)

94030-08000

$1.49

24

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

25

WASHER, PLAIN (8MM)

94101-08000

$1.49

26

WASHER, SPRING (8MM)

94111-08000

$1.49

27

TUBE (5.5X350) This part replaces 15761-045-000.

95001-55000-40

Unavailable

27

TUBE (5.5X350) This part replaces 16968-205-222.

95001-55000-40

Unavailable

27

TUBE (5.5X350) This part replaces 16968-205-322.

95001-55000-40

Unavailable

27

TUBE (5.5X350) This part replaces 17645-259-010.

95001-55000-40

Unavailable

27

TUBE (5.5X350) This part replaces 95001-50000.

95001-55000-40

Unavailable

27

TUBE (5.5X350) This part replaces 95001-50000-90.

95001-55000-40

Unavailable

27

TUBE (5.5X350) This part replaces 95001-50100.

95001-55000-40

Unavailable

27

TUBE (5.5X350) This part replaces 95001-50110.

95001-55000-40

Unavailable

27

TUBE (5.5X350) This part replaces 95001-50180.

95001-55000-40

Unavailable

27

TUBE (5.5X350) This part replaces 95001-50200.

95001-55000-40

Unavailable

27

TUBE (5.5X350) This part replaces 95001-50220.

95001-55000-40

Unavailable

27

TUBE (5.5X350) This part replaces 95001-50250.

95001-55000-40

Unavailable

27

TUBE (5.5X350) This part replaces 95001-50450.

95001-55000-40

Unavailable

27

TUBE (5.5X350) This part replaces 95001-50620.

95001-55000-40

Unavailable

27

TUBE (5.5X350) This part replaces 95001-50830.

95001-55000-40

Unavailable

27

BULK HOSE, FUEL (5.5X3000) (5.5X350)

95001-55003-60M

$47.32

28

TUBE (5.5X350) This part replaces 95001-50000-90.

95001-55000-40

Unavailable

28

BULK HOSE, FUEL (5.5X3000) (5.5X350)

95001-55003-60M

$47.32

29

TUBE (5.5X350) This part replaces 00000-00638.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 00000-00639.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 15761-045-000.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 16968-001-222.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 16968-202-222.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 16968-205-222.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 16968-205-322.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 16968-268-222.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 16968-270-222.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 16969-268-222.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 17645-259-010.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 17741-268-222.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 95001-50000.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 95001-50000-90.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 95001-50100.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 95001-50110.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 95001-50140.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 95001-50144.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 95001-50150.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 95001-50165.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 95001-50168.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 95001-50180.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 95001-50190.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 95001-50195.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 95001-50200.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 95001-50210.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 95001-50220.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 95001-50250.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 95001-50450.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 95001-50620.

95001-55000-40

Unavailable

29

TUBE (5.5X350) This part replaces 95001-50830.

95001-55000-40

Unavailable

29

BULK HOSE, FUEL (5.5X3000) (5.5X350)

95001-55003-60M

$47.32

30

CLIP, TUBE (C9) | Use from Frame SN 1000001 to 1043097

95002-50000

$1.49

30

CLIP, TUBE (C9) | Use from Frame SN 1043098

95002-50000

$1.49
