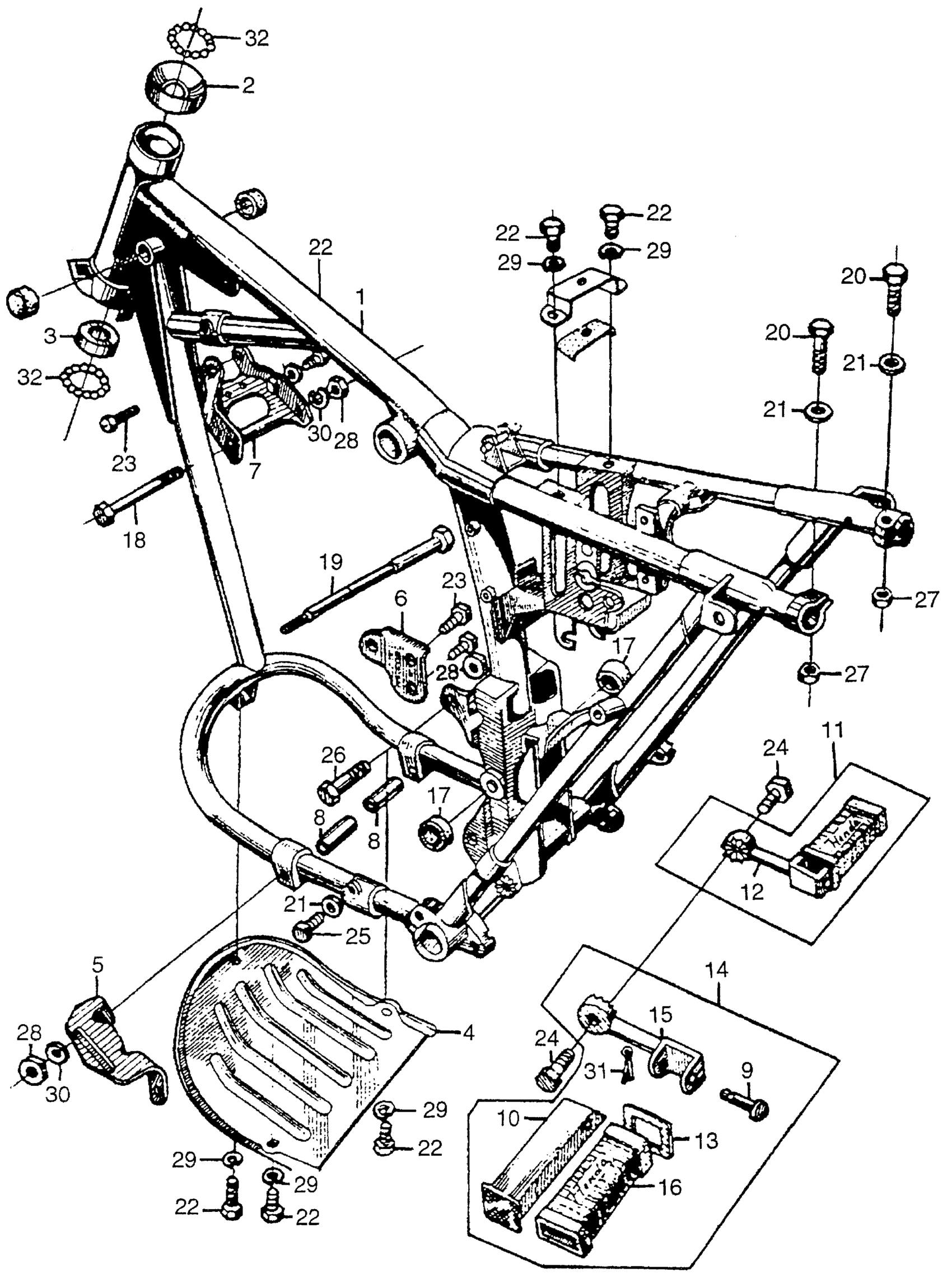

Honda CL77A MOTORCYCLE, JPN, VIN# CL77-1000001 FRAME Diagram

#

Description
Price

NI

WASHER, PLAIN (6MM) | Use from Frame SN 1000001 to 1033481 This part replaces 94101-06000.

94101-06800

$1.49

NI

WASHER, PLAIN (6MM) | Use from Frame SN 1000001 to 1033481 This part replaces 94101-06080.

94101-06800

$1.49

NI

WASHER, PLAIN (6MM) | Use from Frame SN 1000001 to 1033481

94101-06800

$1.49

1

FRAME | Use from Frame SN 1000001 to 1033481

50100-273-030Z

Unavailable

1

FRAME | Use from Frame SN 1033482

50100-273-040Z

Unavailable

2

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$22.12

2

RACE, STEERING BALL (UPPER)

50301-268-010

$22.12

2

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$22.12

3

RACE, STEERING BALL (LOWER) This part replaces 50302-268-000.

50302-268-010

$21.73

3

RACE, STEERING BALL (LOWER)

50302-268-010

$21.73

3

RACE, STEERING BALL (LOWER) This part replaces 50302-268-305.

50302-268-010

$21.73

4

PROTECTOR, CASE (LOWER) *NH1* (BLACK) (NOT AVAILABLE)

50351-273-000B

Unavailable

5

PROTECTOR, L. CRANKCASE COVER (NOT AVAILABLE)

50353-273-000Z

$45.49

6

PLATE, ENGINE HANGER (LOWER) (NOT AVAILABLE)

50354-273-000Z

Unavailable

7

BRACKET, ENGINE HANGER

50355-273-010

Unavailable

8

COLLAR, ENGINE FITTING DISTANCE (NOT AVAILABLE)

50356-273-000

Unavailable

9

PIN, PILLION STEP | Use from Frame SN 1047053

50703-216-000

Unavailable

9

PIN, PILLION STEP (NOT AVAILABLE) | Use from Frame SN 1000001 to 1047052

50713-257-000

Unavailable

10

BAR, PILLION STEP (NOT AVAILABLE) | Use from Frame SN 1000001 to 1047052

50707-256-000

Unavailable

10

BAR B, PILLION STEP | Use from Frame SN 1047053 This part replaces 50715-283-000.

95015-62000

$30.68

10

BAR B, PILLION STEP | Use from Frame SN 1047053

95015-62000

$30.68

10

BAR B, PILLION STEP

95015-62000

$30.68

11

ARM, R. PILLION STEP (NOT AVAILABLE) This part replaces 50710-273-000.

50710-273-010

Unavailable

11

ARM, R. PILLION STEP (NOT AVAILABLE)

50710-273-010

Unavailable

12

ARM, R. PILLION STEP (NOT AVAILABLE) | Use from Frame SN 1000001 to 1047052 This part replaces 50710-273-000.

50710-273-010

Unavailable

12

ARM, R. PILLION STEP (NOT AVAILABLE) | Use from Frame SN 1000001 to 1047052

50710-273-010

Unavailable

12

ARM, R. PILLION STEP (NOT AVAILABLE) | Use from Frame SN 1000001 to 1047052 This part replaces 50711-273-000.

50710-273-010

Unavailable

12

STEP ASSY., R. PILLION (NOT AVAILABLE) | Use from Frame SN 1047053

50711-273-010

Unavailable

13

SEAT, PILLION STEP RUBBER (NOT AVAILABLE)

50716-257-000

Unavailable

14

STEP ASSY., L. PILLION | Use from Frame SN 1000001 to 1047052 This part replaces 50720-273-000.

50720-273-010

Unavailable

14

STEP ASSY., L. PILLION | Use from Frame SN 1000001

50720-273-010

Unavailable

15

ARM, L. PILLION STEP (NOT AVAILABLE) | Use from Frame SN 1000001 to 1047052

50721-273-000

Unavailable

15

ARM, L. PILLION STEP (NOT AVAILABLE) | Use from Frame SN 1047053

50721-273-010

Unavailable

16

RUBBER, PILLION STEP

50731-256-000

Unavailable

17

RUBBER, SWINGARM DUST SEAL CAP This part replaces 52145-268-000.

52145-329-000

$7.36

17

RUBBER, SWINGARM DUST SEAL CAP

52145-329-000

$7.36

18

BOLT, ENGINE HANGER (NOT AVAILABLE)

90105-273-010

Unavailable

19

BOLT, ENGINE (LOWER) (NOT AVAILABLE)

90106-273-000

Unavailable

20

BOLT, HEX. (8X40) (NOT AVAILABLE) | Use from Frame SN 1033482

90110-273-000

Unavailable

20

BOLT, HEX. (8X40) This part replaces 92000-08040.

92101-08040-0A

$1.80

20

BOLT, HEX. (8X40) This part replaces 92000-08040-0A.

92101-08040-0A

$1.80

20

BOLT, HEX. (8X40)

92101-08040-0A

$1.80

21

WASHER, SPROCKET SETTING | Use from Frame SN 1033482

90551-033-000

$1.74

21

WASHER, PLAIN (8MM) | Use from Frame SN 1000001 to 1033481

94101-08000

$1.49

22

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

23

BOLT, HEX. (8X16) This part replaces 92000-08016.

92101-08016-0A

$1.49

23

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

23

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

23

BOLT, HEX. (8X16) This part replaces 92200-08016-OA.

92101-08016-0A

$1.49

24

BOLT, HEX. (10X28) This part replaces 92000-10028.

92101-10028-0A

Unavailable

24

BOLT, HEX. (10X28) This part replaces 92000-10028-0A.

92101-10028-0A

Unavailable

24

BOLT, HEX. (10X28) This part replaces 92026-10028-0A.

92101-10028-0A

Unavailable

24

BOLT, HEX. (10X28)

92101-10028-0A

Unavailable

25

BOLT, HEX. (10X36) This part replaces 92000-10035.

92101-10036-0A

Unavailable

25

BOLT, HEX. (10X36) This part replaces 92000-10036-0A.

92101-10036-0A

Unavailable

26

BOLT, HEX. (10X48) (NOT AVAILABLE)

92000-10048

Unavailable

27

NUT, HEX. (8MM) This part replaces 94001-08000.

94030-08000

$1.49

27

NUT, HEX. (8MM)

94030-08000

$1.49

27

NUT, HEX. (8MM) This part replaces 94030-08200.

94030-08000

$1.49

28

NUT, HEX. (10MM) This part replaces 94001-10000.

94030-10000

$1.49

28

NUT, HEX. (10MM)

94030-10000

$1.49

28

NUT, HEX. (10MM)

94030-10000

$1.49

28

NUT, HEX. (10MM) This part replaces 94030-10000-0S.

94030-10000

$1.49

29

WASHER, SPRING (6MM)

94111-06000

$1.49

30

WASHER, SPRING (8MM)

94111-10000

$1.49

31

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

31

PIN, COTTER (1.6X25)

94201-16250

$1.49

32

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
