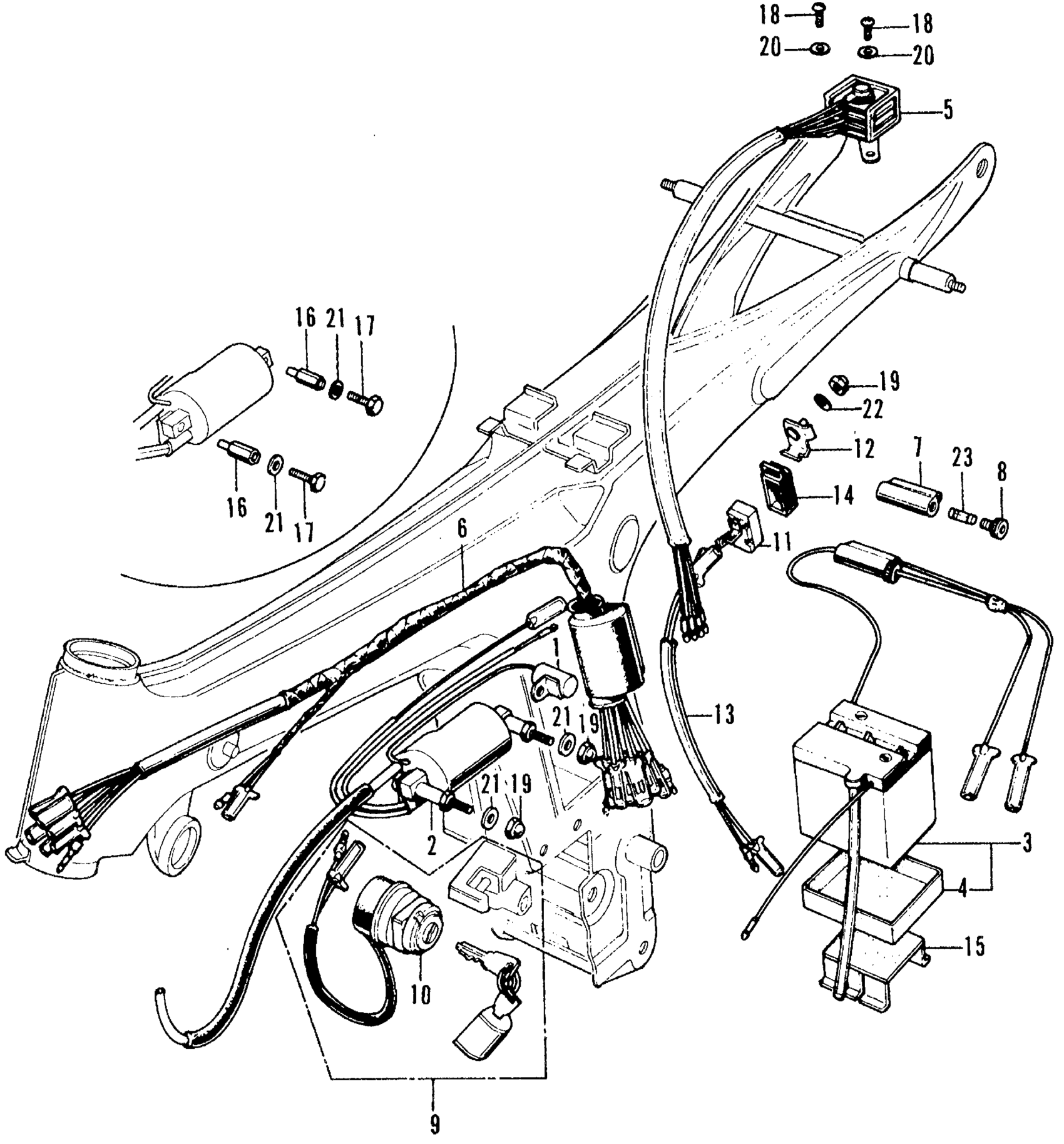

Honda CL70K3A MOTORCYCLE, JPN, VIN# CL70-1300001 WIRE HARNESS + BATTERY Diagram

#

Description
Price

1

CONDENSER (NOT AVAILABLE)

30250-089-671

Unavailable

2

COIL ASSY., IGNITION (NOT AVAILABLE)

30400-089-672

Unavailable

3

BATTERY ASSY. (NOT AVAILABLE)

31500-111-971

Unavailable

4

RUBBER, BATTERY MOUNT (NOT AVAILABLE)

31515-111-970

Unavailable

5

RECTIFIER ASSY. (NOT AVAILABLE)

31700-111-971

Unavailable

6

WIRE HARNESS (NOT AVAILABLE)

32100-111-670

Unavailable

7

CONNECTOR A, FUSE (NOT AVAILABLE)

32106-046-000

Unavailable

8

CONNECTOR B, FUSE (YUASA) This part replaces 32112-041-000.

32112-041-008

Unavailable

8

CONNECTOR B, FUSE (YUASA)

32112-041-008

Unavailable

9

SWITCH KIT, MAIN (NOT AVAILABLE)

35030-111-971

Unavailable

10

SWITCH, IGNITION (NOT AVAILABLE)

35010-111-671

Unavailable

10

SWITCH ASSY., COMBINATION This part replaces 35100-111-671.

35100-324-761

Unavailable

10

SWITCH ASSY., COMBINATION This part replaces 35100-324-760.

35100-324-761

Unavailable

10

SWITCH ASSY., COMBINATION

35100-324-761

Unavailable

11

RELAY ASSY., TURN SIGNAL

38300-GF0-405

$44.27

11

RELAY ASSY., TURN SIGNAL This part replaces 38300-089-671.

38300-GF0-405

$44.27

11

RELAY ASSY., TURN SIGNAL This part replaces 38300-243-670.

38300-GF0-405

$44.27

11

RELAY ASSY., TURN SIGNAL This part replaces 38300-428-004.

38300-GF0-405

$44.27

11

RELAY ASSY., TURN SIGNAL This part replaces 38301-428-671.

38300-GF0-405

$44.27

11

RELAY ASSY., TURN SIGNAL This part replaces 38310-428-671.

38300-GF0-405

$44.27

12

STAY, TURN SIGNAL RELAY (NOT AVAILABLE)

38301-089-670

Unavailable

13

SUB-WIRE, TURN SIGNAL RELAY (NOT AVAILABLE)

38303-089-670

Unavailable

14

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE)

38306-292-670

Unavailable

15

PLATE, BATTERY BASE (NOT AVAILABLE)

50382-089-670

Unavailable

18

SCREW, PAN (5X12)

93500-05012-0A

$1.49

19

NUT, CAP (6MM)

94021-06020

$1.73

20

WASHER, PLAIN (5MM)

94101-05000

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

21

WASHER, PLAIN (6MM)

94101-06800

$1.49

22

WASHER, SPRING (6MM)

94111-06000

$1.49

23

FUSE A (15A)

98200-11500

$1.49
