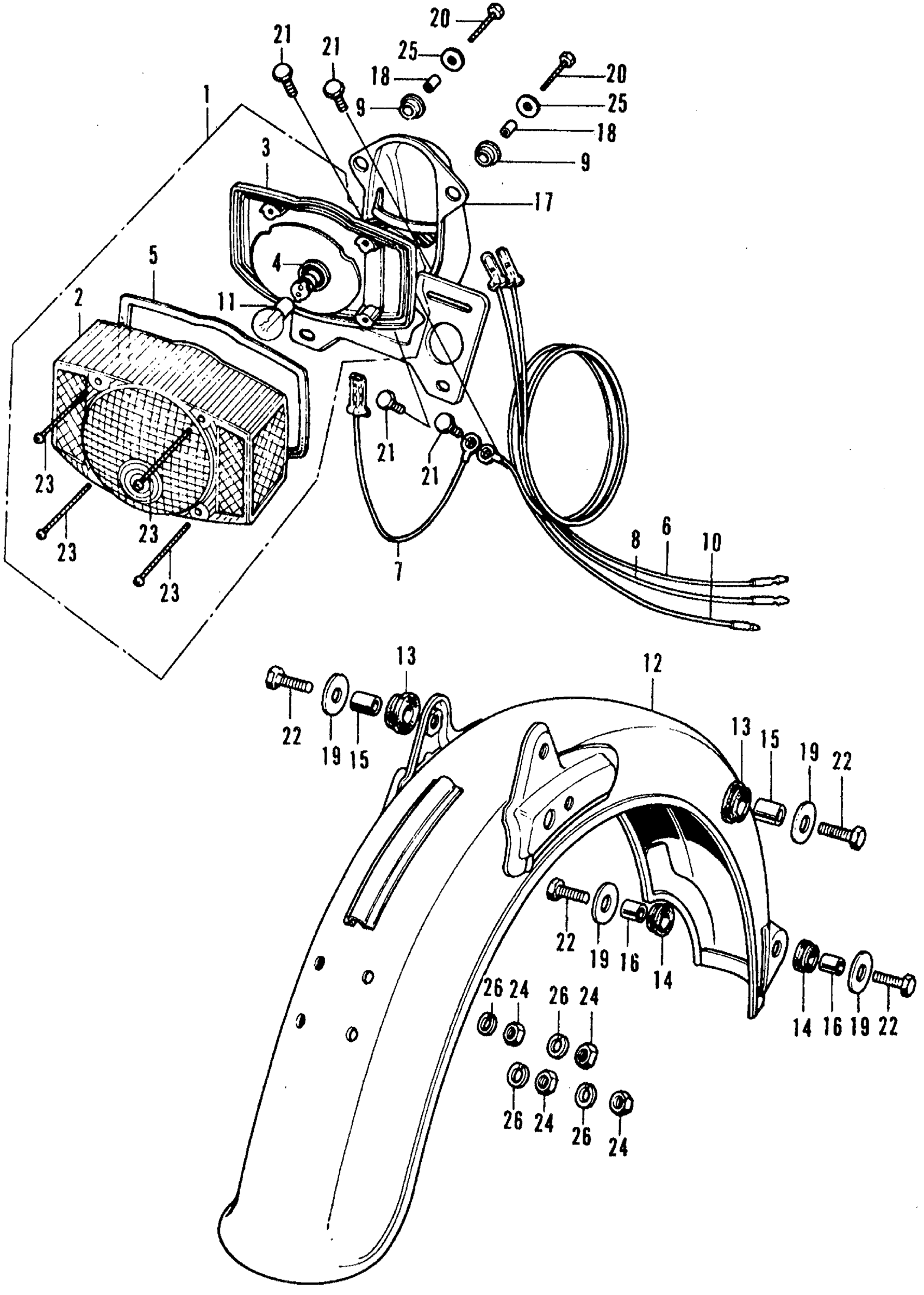

Honda CL70K3A MOTORCYCLE, JPN, VIN# CL70-1300001 TAILLIGHT + REAR FENDER K3 Diagram

#

Description
Price

1

TAILLIGHT UNIT (NOT AVAILABLE)

33701-098-971

Unavailable

2

LENS, TAILLIGHT

33702-341-671

Unavailable

3

BASE, TAILLIGHT (NOT AVAILABLE)

33703-341-671

Unavailable

4

WIRE, TAILLIGHT

33708-098-000

Unavailable

4

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

5

GASKET, TAILLIGHT LENS

33709-341-671

Unavailable

6

SUB-WIRE, TAILLIGHT (NOT AVAILABLE)

33711-028-671

Unavailable

7

WIRE, STOP & TAILLIGHT GROUND (NOT AVAILABLE) This part replaces 33712-098-931.

33712-098-970

Unavailable

8

SUB-WIRE, TAILLIGHT (N/A: USE TAILLIGHT UNIT)

33713-028-670

Unavailable

9

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

10

WIRE, RR. FENDER GROUND (NOT AVAILABLE)

33720-089-670

Unavailable

11

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-041-671.

34906-202-670

$11.50

11

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY)

34906-202-670

$11.50

11

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34906-205-222.

34906-202-670

$11.50

11

BULB, STOP & TAILLIGHT (6V17/5.3W) (1154) (STANLEY) This part replaces 34911-001-810.

34906-202-670

$11.50

12

FENDER, RR. *MRCR2* (CHROME PLATING)

80100-111-971XW

Unavailable

13

RUBBER A, RR. FENDER

80105-061-000

$4.01

14

RUBBER B, RR. FENDER (NOT AVAILABLE)

80106-061-010

Unavailable

15

COLLAR A, RR. FENDER

80108-061-010

$4.12

16

COLLAR B, RR. FENDER

80109-061-010

$3.15

17

BRACKET, NUMBER PLATE *NH1* (BLACK)

84700-111-971B

Unavailable

18

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

19

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

19

WASHER, PLAIN (6MM)

94103-06800

$1.49

20

WASHER (20MM)

90581-310-000

$1.90

21

BOLT, HEX. (5X20) This part replaces 92000-05020-0B.

92101-05020-0B

Unavailable

22

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

22

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

23

BOLT, HEX. (6X22) This part replaces 92000-06022.

92101-06022-0A

$1.54

23

BOLT, HEX. (6X22) This part replaces 92000-06022-00.

92101-06022-0A

$1.54

23

BOLT, HEX. (6X22)

92101-06022-0A

$1.54

24

SCREW, PAN (4X55)

93500-04055-0B

$1.49

25

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

25

NUT, HEX. (6MM)

94002-06000-0S

$1.49

26

WASHER, SPRING (6MM)

94111-06000

$1.49
