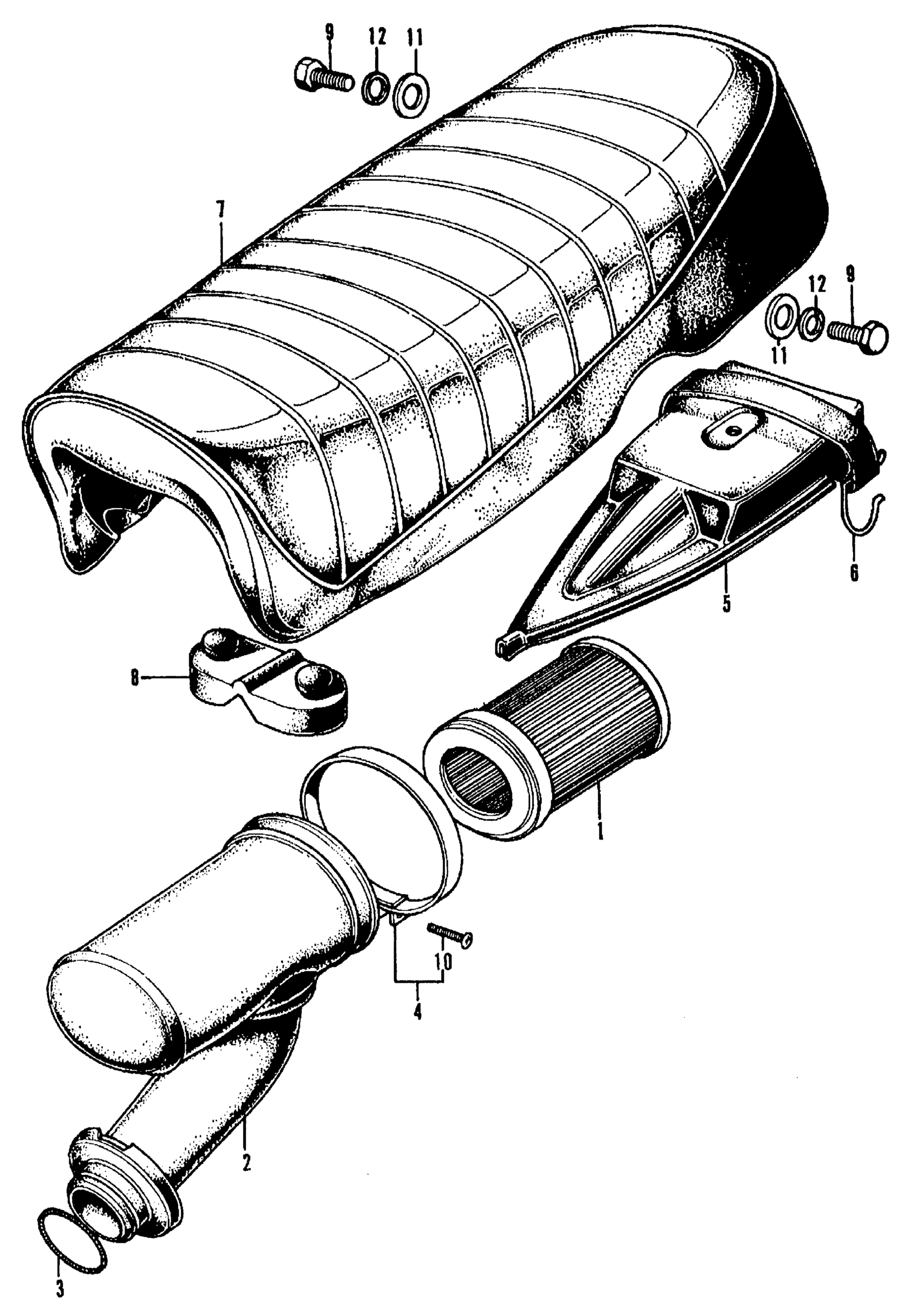

Honda CL70K3A MOTORCYCLE, JPN, VIN# CL70-1300001 SEAT + AIR CLEANER Diagram

ELEMENT, AIR CLEANER (NOT AVAILABLE)

17211-051-690

Unavailable

MUFFLER

17220-065-000

Unavailable

MUFFLER This part replaces 17220-065-000B.

17220-065-000

Unavailable

BAND A, AIR CLEANER IN. PIPE

17231-051-000

$4.63

BAND, AIR CLEANER ELEMENT (NOT AVAILABLE)

17259-051-691

Unavailable

COVER, AIR CLEANER ELEMENT *NH1* (BLACK) (NOT AVAILABLE)

17310-051-020B

Unavailable

BAND, AIR CLEANER ELEMENT (NOT AVAILABLE)

17312-051-000

Unavailable

SEAT ASSY. *NH1L* (BLACK) (NOT AVAILABLE)

77200-111-970A

Unavailable

RUBBER, SEAT MOUNT (NOT AVAILABLE)

77201-051-000

Unavailable

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

SCREW, PAN (4X26)

93500-04016-0A

$1.49

WASHER, PLAIN (8MM)

94101-08000

$1.49

WASHER, SPRING (8MM)

94111-08000

$1.49
