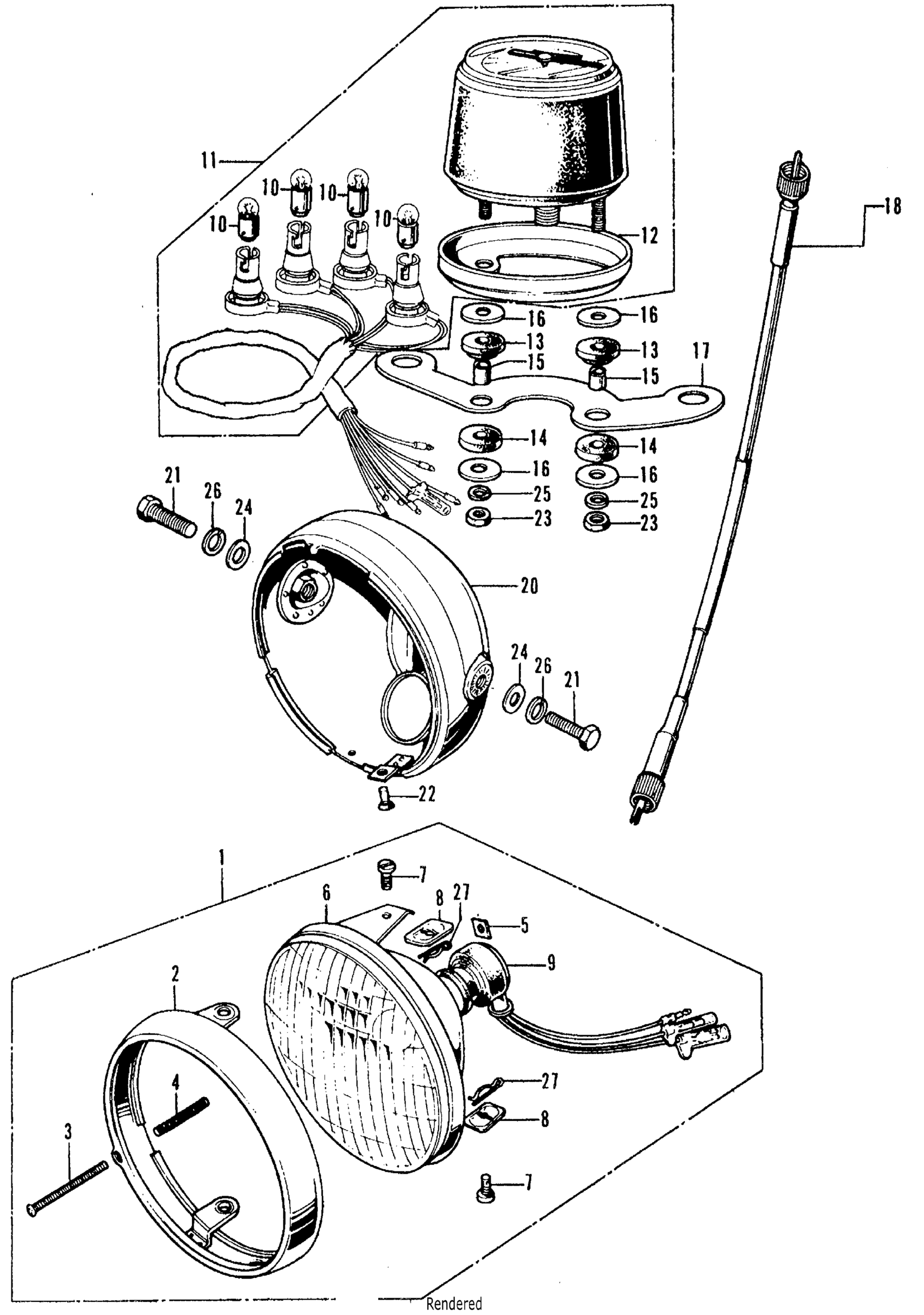

Honda CL70K3A MOTORCYCLE, JPN, VIN# CL70-1300001 HEADLIGHT + SPEEDOMETER K1-K3 Diagram

#

Description
Price

1

HEADLIGHT ASSY. (6V15/15W)

33100-111-671

Unavailable

2

RIM, HEADLIGHT (NOT AVAILABLE)

33101-111-671

Unavailable

3

SCREW, HEADLIGHT BEAM ADJ. (STANLEY)

33102-041-003

$2.25

3

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) This part replaces 33102-041-670.

33102-041-003

$2.25

4

SPRING, HEADLIGHT SETTING

33107-030-003

$2.54

5

NUT, BEAM ADJ.

33117-041-003

$1.95

6

HEADLIGHT UNIT

33120-111-671

Unavailable

7

SCREW, UNIT HOLDER

33125-292-670

Unavailable

8

NUT, UNIT HOLDER

33128-292-670

$2.94

9

COVER, RUBBER

33130-111-671

Unavailable

10

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

11

SPEEDOMETER ASSY. (NOT AVAILABLE)

37200-111-671

Unavailable

12

PLATE, SPEEDOMETER (LOWER) (NIPPON SEIKI) (NOT AVAILABLE)

37202-107-008

Unavailable

13

RUBBER A, SPEEDOMETER CUSHION (NOT AVAILABLE)

37310-061-810

Unavailable

14

RUBBER B, SPEEDOMETER CUSHION (NOT AVAILABLE)

37311-061-810

Unavailable

15

COLLAR, SPEEDOMETER CUSHION (NOT AVAILABLE)

37312-051-740

Unavailable

16

WASHER, PLAIN (5.5MM)

37314-061-810

Unavailable

17

STAY, SPEEDOMETER *NH35* (CLOUD SILVER) (NOT AVAILABLE)

37315-051-740AU

Unavailable

18

CABLE, SPEEDOMETER This part replaces 44830-061-810.

44830-159-000

Unavailable

18

CABLE, SPEEDOMETER

44830-159-000

Unavailable

20

CASE, HEADLIGHT *NH83L* (OFF BLACK) (NOT AVAILABLE)

61301-111-670CT

Unavailable

21

BOLT,HEX(8X20) This part replaces 92000-08020-0B.

92101-08020-0B

$1.66

22

SCREW, OVAL (5X8)

93700-05008-0A

$1.49

23

NUT, HEX. (5MM)

94001-05000-0S

$2.74

24

WASHER, PLAIN (8MM)

94101-08200

$1.49

25

WASHER, SPRING (5MM)

94111-05000

$1.49

26

WASHER, SPRING (8MM)

94111-08200

Unavailable

27

PIN, LOCK (5MM)

94251-05000

$1.49
