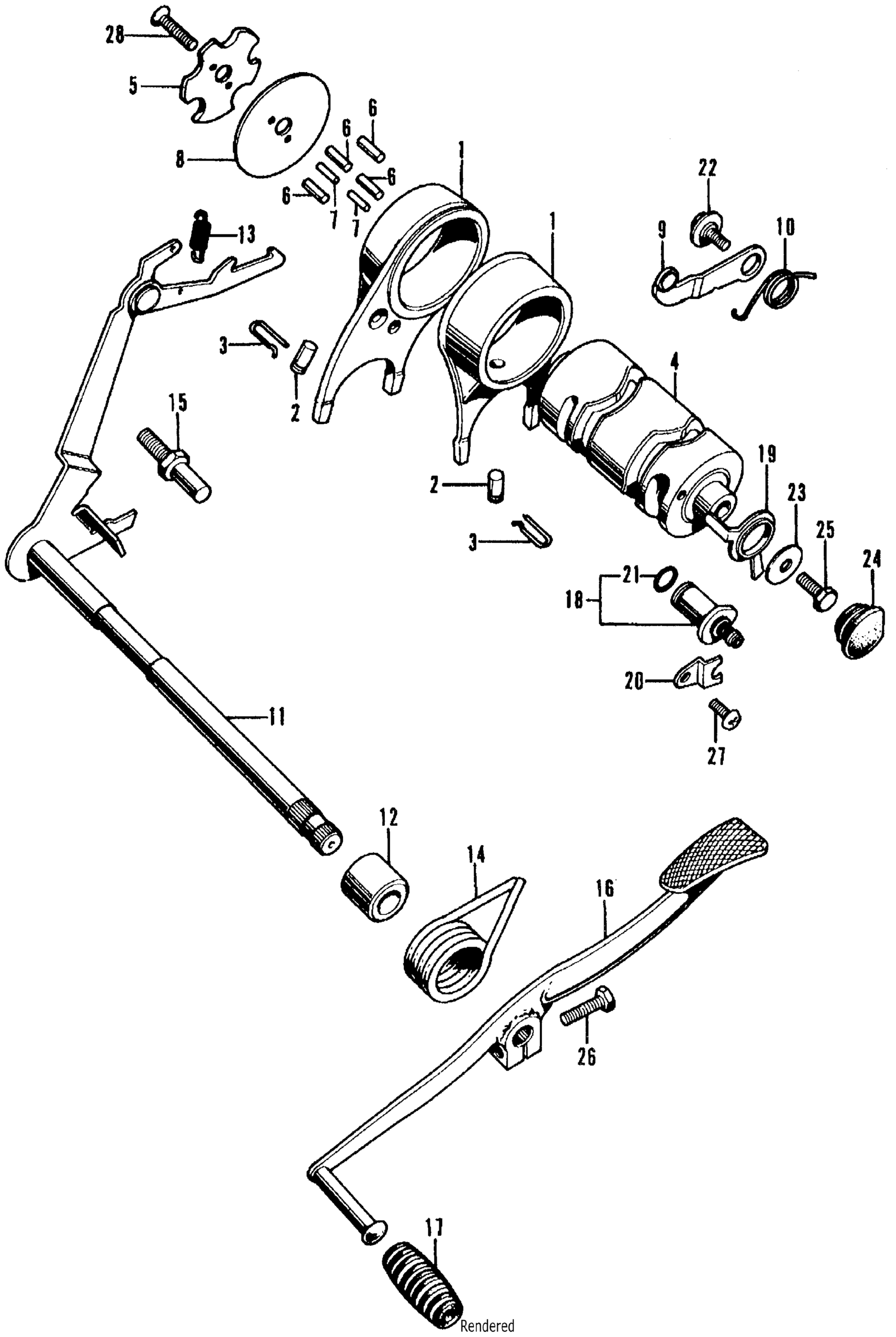

Honda CL70K3A MOTORCYCLE, JPN, VIN# CL70-1300001 GEARSHIFT Diagram

#

Description
Price

1

FORK, GEARSHIFT

24211-065-000

$68.56

2

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-028-010.

24261-121-742

$2.33

2

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-740.

24261-121-742

$2.33

2

PIN, GEARSHIFT FORK GUIDE This part replaces 24261-121-741.

24261-121-742

$2.33

3

CLIP, GEARSHIFT FORK GUIDE

24263-028-000

$2.66

4

DRUM, GEARSHIFT (NOT AVAILABLE)

24301-111-010

Unavailable

5

PLATE, SHIFT DRUM STOPPER (NOT AVAILABLE)

24411-111-010

Unavailable

6

PIN, GEARSHIFT DRUM This part replaces 24421-200-000.

24421-230-000

$5.80

6

PIN, GEARSHIFT DRUM

24421-230-000

$5.80

7

ROLLER (3X12.8) (NOT AVAILABLE)

91101-111-000

Unavailable

8

PLATE, SHIFT DRUM SIDE

24425-051-010

Unavailable

9

STOPPER, GEARSHIFT DRUM This part replaces 24430-041-000.

24430-041-010

Unavailable

9

STOPPER, GEARSHIFT DRUM

24430-041-010

Unavailable

10

SPRING, GEARSHIFT DRUM STOPPER This part replaces 24435-GB2-000.

24435-GB2-710

Unavailable

10

SPRING, GEARSHIFT DRUM STOPPER

24435-GB2-710

Unavailable

10

SPRING, GEARSHIFT DRUM STOPPER This part replaces 24435-040-000.

24435-GB2-710

Unavailable

11

SPINDLE, GEARSHIFT

24610-098-740

Unavailable

12

COLLAR (12.2MM) (NOT AVAILABLE)

24639-035-000

Unavailable

13

SPRING, GEARSHIFT ARM

24641-061-000

Unavailable

14

SPRING, GEARSHIFT RETURN

24651-035-000

Unavailable

15

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

16

PEDAL, GEARSHIFT

24700-111-970

Unavailable

17

RUBBER, SHIFT PEDAL

95011-40000

$1.49

18

CONTACT ASSY., NEUTRAL SWITCH

35750-001-020

$9.16

19

ROTOR, NEUTRAL SWITCH This part replaces 35753-035-661.

35753-035-662

Unavailable

19

ROTOR, NEUTRAL SWITCH

35753-035-662

Unavailable

20

PLATE, CONTACT FIXING

35755-001-020

Unavailable

21

O-RING (7X1.6)

37551-001-000

Unavailable

22

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT This part replaces 90023-041-000.

90023-041-010

$2.25

22

BOLT, GEARSHIFT DRUM STOPPER ARM PIVOT

90023-041-010

$2.25

23

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.19

24

PLUG, RUBBER (19MM)

90801-035-000

$2.92

25

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

25

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

26

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

26

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

27

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

27

SCREW, PAN (6X12)

93500-06012-0A

$1.49

27

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

28

SCREW, OVAL (6X20) This part replaces 93700-06020.

93700-06020-0A

$1.49

28

SCREW, OVAL (6X20)

93700-06020-0A

$1.49
