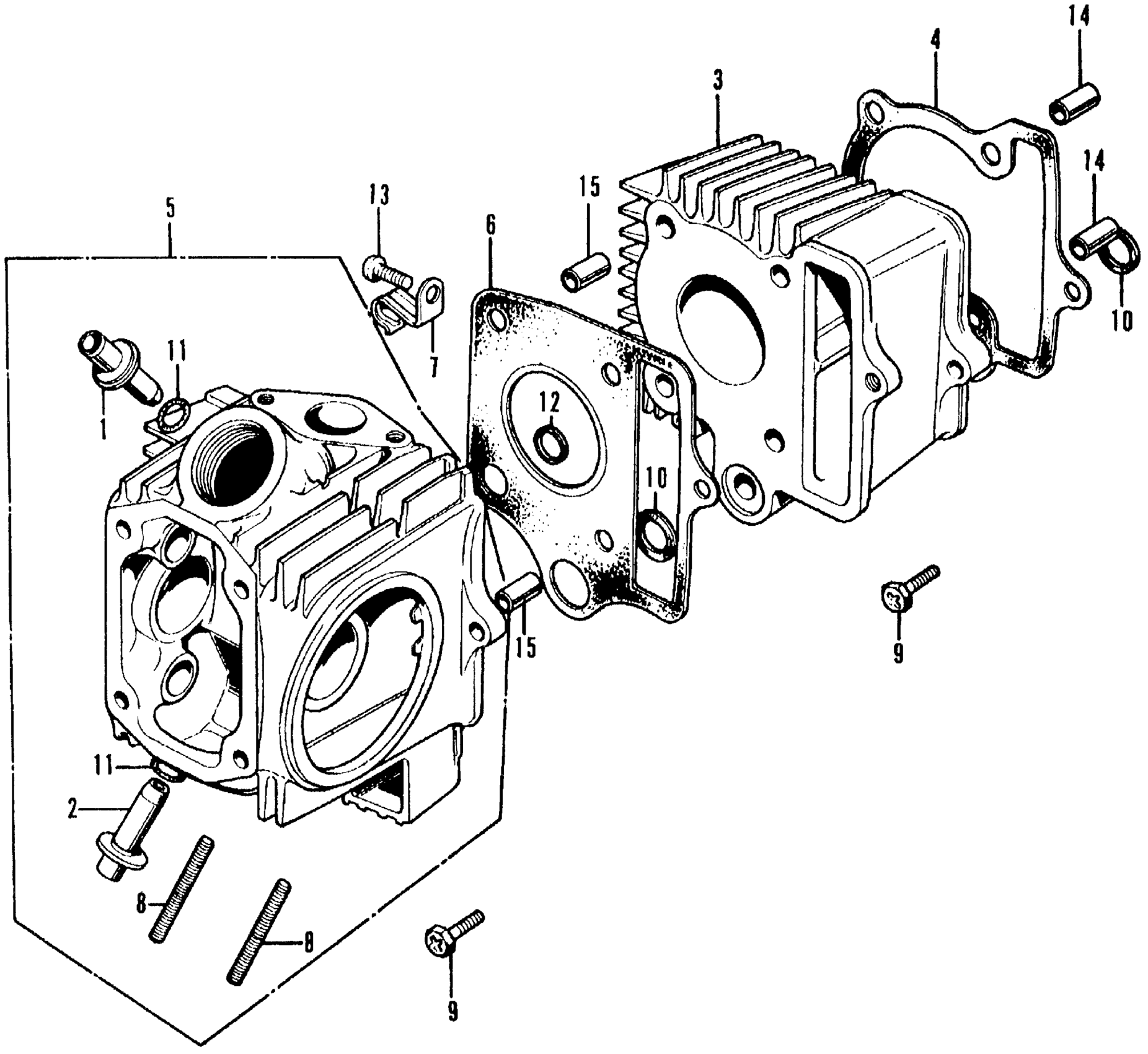

Honda CL70K3A MOTORCYCLE, JPN, VIN# CL70-1300001 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

GUIDE, VALVE This part replaces 12021-035-811.

12023-035-405

Unavailable

1

GUIDE, VALVE

12023-035-405

Unavailable

2

GUIDE, EX. VALVE This part replaces 12023-051-310.

12023-051-320

Unavailable

2

GUIDE, EX. VALVE

12023-051-320

Unavailable

3

CYLINDER (NOT AVAILABLE) This part replaces 12101-089-670.

12101-118-670

Unavailable

3

CYLINDER (NOT AVAILABLE)

12101-118-670

Unavailable

4

GASKET, CYLINDER This part replaces 12191-GB2-004.

12191-GW8-683

$8.88

4

GASKET, CYLINDER This part replaces 12191-GB2-306.

12191-GW8-683

$8.88

4

GASKET, CYLINDER This part replaces 12191-GW8-681.

12191-GW8-683

$8.88

4

GASKET, CYLINDER This part replaces 12191-035-020.

12191-GW8-683

$8.88

4

GASKET, CYLINDER This part replaces 12191-118-670.

12191-GW8-683

$8.88

5

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-089-000.

12200-089-305

Unavailable

5

CYLINDER HEAD (NOT AVAILABLE) This part replaces 12200-089-010.

12200-089-305

Unavailable

5

CYLINDER HEAD (NOT AVAILABLE)

12200-089-305

Unavailable

6

GASKET, CYLINDER HEAD

12251-111-505

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-111-730.

12251-111-505

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-111-731.

12251-111-505

Unavailable

7

CLIP, IGNITION CABLE

32906-061-000

$4.79

8

BOLT, STUD (6X32) This part replaces 90033-041-000.

90033-041-020

$2.25

8

BOLT, STUD (6X32) This part replaces 90033-041-010.

90033-041-020

$2.25

8

BOLT, STUD (6X32)

90033-041-020

$2.25

9

BOLT (6MM) This part replaces 90082-035-000.

90082-035-010

$2.39

9

BOLT (6MM)

90082-035-010

$2.39

10

GASKET, RUBBER (16MM)

91303-035-000

$4.87

11

O-RING (9.5X1.6)

91306-028-000

$2.92

12

GASKET, RUBBER (9MM) This part replaces 91306-035-000.

91306-141-000

$4.65

12

GASKET, RUBBER (9MM)

91306-141-000

$4.65

13

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

13

SCREW, PAN (6X20)

93500-06020-0A

$1.49

14

PIN A, DOWEL (8X12)

94301-08120

$2.19

15

PIN A, DOWEL (8X14)

94301-08140

$2.25
