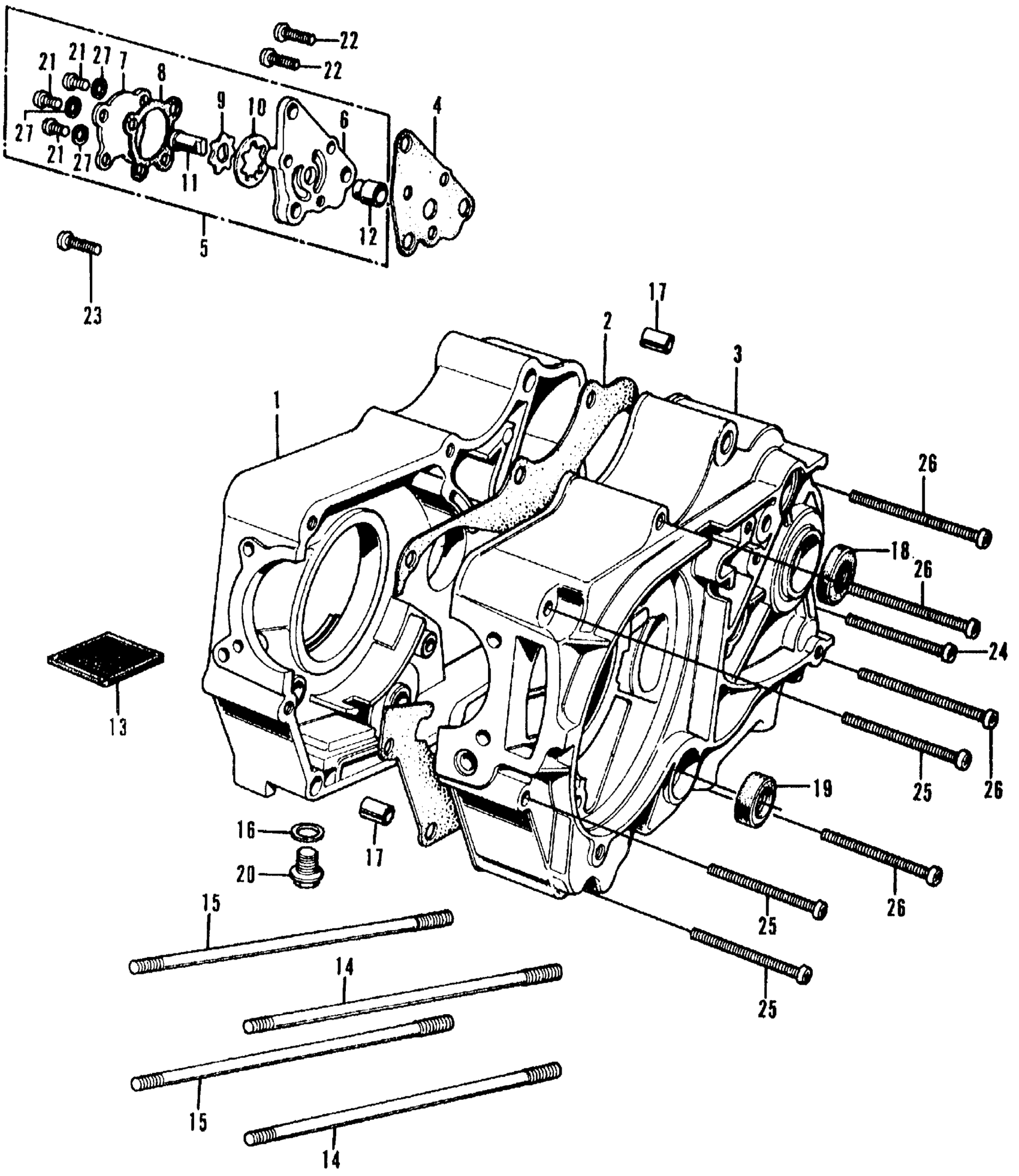

Honda CL70K3A MOTORCYCLE, JPN, VIN# CL70-1300001 CRANKCASE + OIL PUMP Diagram

#

Description
Price

1

CRANKCASE, R. (NOT AVAILABLE)

11100-035-100

Unavailable

1

CRANKCASE, R. (NOT AVAILABLE) This part replaces 11100-086-000.

11100-035-100

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-035-050.

11191-035-070

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-035-060.

11191-035-070

Unavailable

2

GASKET, CRANKCASE

11191-035-070

Unavailable

2

GASKET, CRANKCASE This part replaces 11191-035-307.

11191-035-070

Unavailable

3

CRANKCASE, L. (NOT AVAILABLE)

11200-086-010

Unavailable

4

GASKET, OIL PUMP BODY

15119-035-020

Unavailable

5

PUMP ASSY., OIL (NOT AVAILABLE)

15300-118-670

Unavailable

6

BODY, OIL PUMP (NOT AVAILABLE)

15311-118-671

Unavailable

7

COVER, OIL PUMP (NOT AVAILABLE)

15321-035-000

Unavailable

8

GASKET, OIL PUMP COVER This part replaces 15329-035-000.

15329-035-003

$4.24

8

GASKET, OIL PUMP COVER

15329-035-003

$4.24

9

ROTOR, OIL PUMP (INNER) This part replaces 15331-053-010.

15331-053-014

Unavailable

9

ROTOR, OIL PUMP (INNER)

15331-053-014

Unavailable

10

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE) This part replaces 15332-053-010.

15332-053-014

Unavailable

10

ROTOR, OIL PUMP (OUTER) (NOT AVAILABLE)

15332-053-014

Unavailable

11

DRIVESHAFT, OIL PUMP (NOT AVAILABLE) This part replaces 15382-035-000.

15382-035-003

Unavailable

11

DRIVESHAFT, OIL PUMP (NOT AVAILABLE)

15382-035-003

Unavailable

12

PIN, OIL PUMP KNOCK

15383-118-671

Unavailable

13

SCREEN, OIL FILTER

15421-035-010

$3.80

14

BOLT A, CYLINDER STUD

90031-035-010

$5.46

15

BOLT B, CYLINDER STUD

90032-035-000

$5.46

16

WASHER, DRAIN PLUG (12MM) This part replaces 90407-231-000.

94109-12000

$1.49

16

GASKET, DRAIN VALVE (12.5X20)

90407-259-000

$2.92

16

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

17

PIN A, DOWEL (10X14) This part replaces 90704-035-000.

94301-10140

$2.28

17

PIN A, DOWEL (10X14)

94301-10140

$2.28

18

OIL SEAL (17X29X5) (NOK) This part replaces 91203-035-000.

91203-035-005

$8.91

18

OIL SEAL (17X29X5) (NOK)

91203-035-005

$8.91

19

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-000.

91208-KB4-671

$4.06

19

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-035-003.

91208-KB4-671

$4.06

19

OIL SEAL (11.6X24X10) (ARAI) This part replaces 91204-121-000.

91208-KB4-671

$4.06

19

OIL SEAL (11.6X23X10) (ARAI)

91208-KB4-671

$4.06

20

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

21

SCREW, PAN (5X10)

93500-05010-0H

$1.49

22

SCREW, PAN (6X16) This part replaces 93500-06016.

93500-06016-0A

$1.49

22

SCREW, PAN (6X16)

93500-06016-0A

$1.49

23

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

23

SCREW, PAN (6X20)

93500-06020-0A

$1.49

24

SCREW, PAN (6X50) This part replaces 93500-06050.

93500-06050-0A

$1.49

24

SCREW, PAN (6X50)

93500-06050-0A

$1.49

25

SCREW, PAN (6X60)

93500-06060-0A

$1.49

25

SCREW, PAN (6X60) This part replaces 93500-06063.

93500-06060-0A

$1.49

26

SCREW, PAN (6X65) This part replaces 93500-06065.

93500-06065-0A

$1.53

26

SCREW, PAN (6X65)

93500-06065-0A

$1.53

27

WASHER, SPRING (5MM)

94111-05800

$1.49
