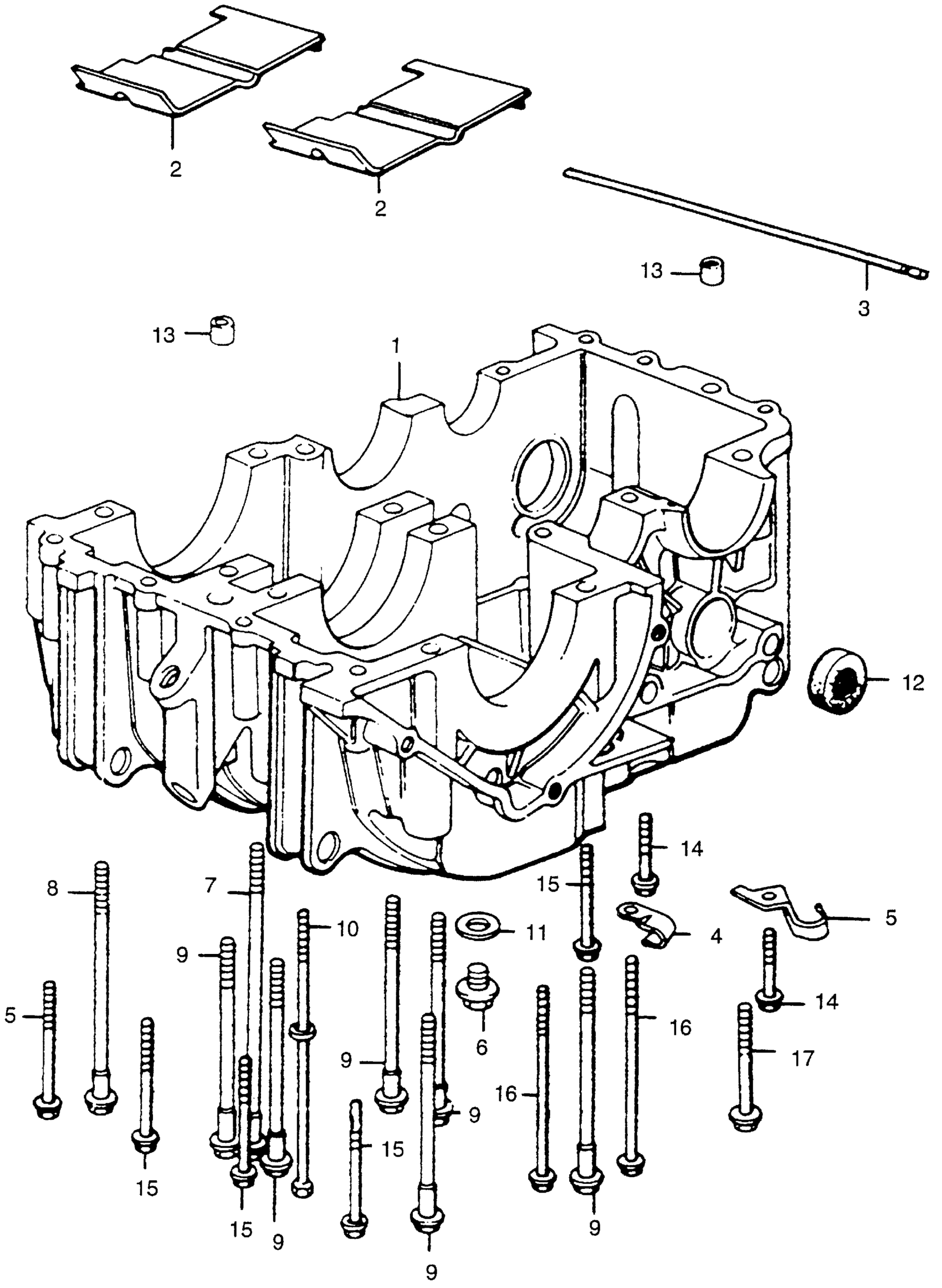

Honda CL360K1A MOTORCYCLE, JPN, VIN# CL360-2000001 LOWER CRANKCASE Diagram

#

Description
Price

1

CRANKCASE (LOWER) | Use up to Engine SN 2017742

11200-369-000

Unavailable

1

CRANKCASE (LOWER) (NOT AVAILABLE) | Use from Engine SN 2017743

11200-369-020

Unavailable

2

SEPARATOR, OIL (NOT AVAILABLE)

11761-369-000

Unavailable

3

BAR, OIL SEPARATOR SETTING

11781-369-000

Unavailable

4

CLAMP, MOTOR CABLE (NOT AVAILABLE)

32911-286-000

Unavailable

5

CLAMP B, MOTOR CABLE

32912-369-000

Unavailable

6

BOLT, DRAIN VALVE

90013-230-000

Unavailable

7

BOLT, FLANGE (8X150) (SATOH) (NOT AVAILABLE)

90082-369-007

Unavailable

8

BOLT, FLANGE (8X115) (SATOH) (NOT AVAILABLE)

90083-369-007

Unavailable

9

BOLT, FLANGE (8X97) (SATOH) (NOT AVAILABLE)

90086-369-007

Unavailable

10

BOLT-WASHER (6X145) (NOT AVAILABLE)

90088-369-000

Unavailable

11

GASKET, DRAIN This part replaces 90407-205-000.

90407-367-690

$4.15

11

GASKET, DRAIN

90407-367-690

$4.15

12

OIL SEAL (14X28X7) (ARAI) This part replaces 91206-286-005.

91206-286-013

$3.01

12

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.01

13

PIN A, DOWEL (10X14)

94301-10140

$2.28

14

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

14

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

15

BOLT, FLANGE (6X55) This part replaces 95700-06055-00.

95701-06055-00

$2.16

15

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

16

BOLT, FLANGE (6X100) This part replaces 95700-06100.

95701-06100-00

$2.79

16

BOLT, FLANGE (6X100) This part replaces 95700-06100-00.

95701-06100-00

$2.79

16

BOLT, FLANGE (6X100)

95701-06100-00

$2.79

17

BOLT, FLANGE (8X50) This part replaces 95700-08050.

95701-08050-00

$2.28

17

BOLT, FLANGE (8X50) This part replaces 95700-08050-00.

95701-08050-00

$2.28

17

BOLT, FLANGE (8X50)

95701-08050-00

$2.28
