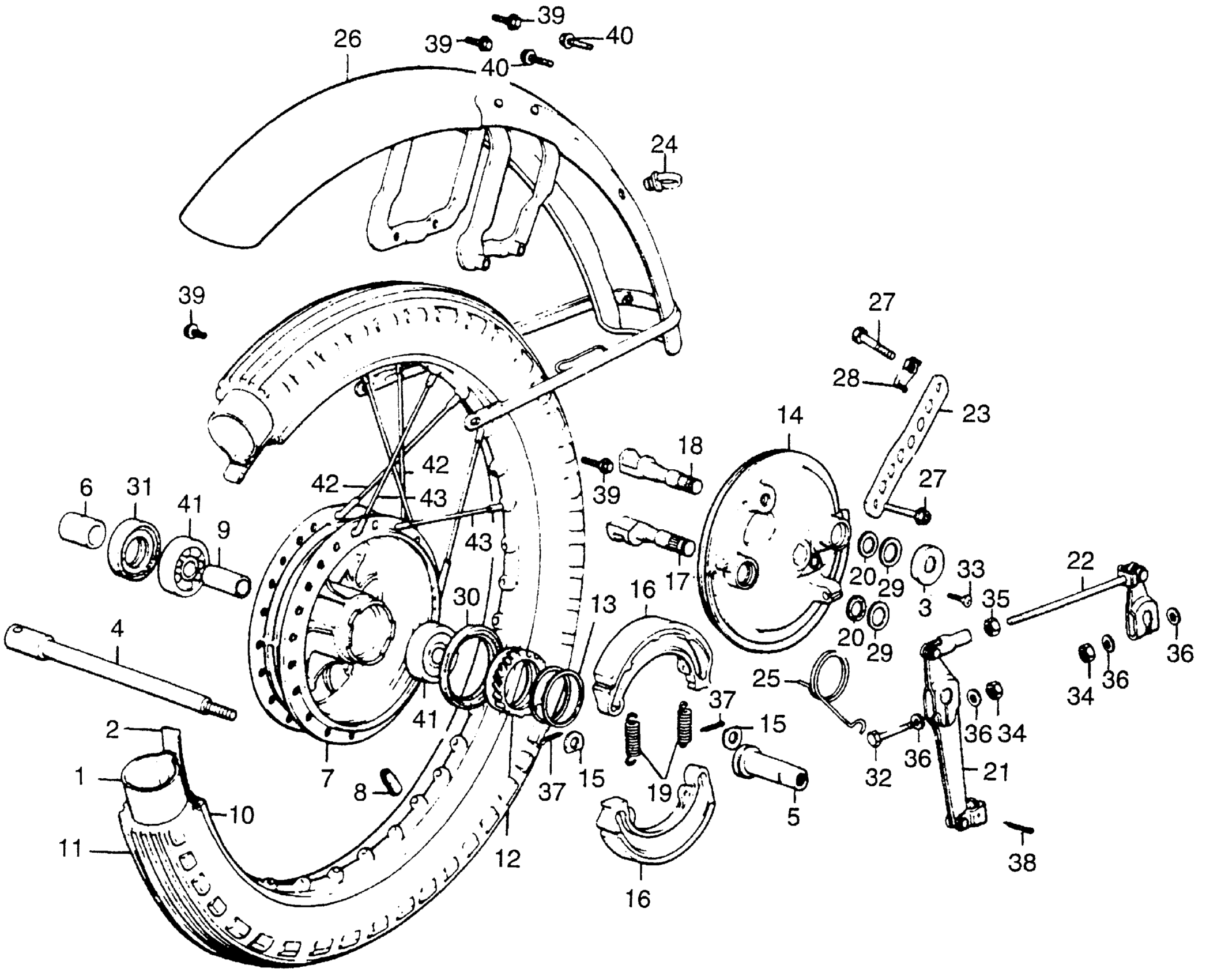

Honda CL360K1A MOTORCYCLE, JPN, VIN# CL360-2000001 FRONT FENDER + FRONT WHEEL Diagram

TUBE (275/300-18) (IRC) This part replaces 0Y400-26800.

42712-KC6-005

Unavailable

TUBE (275/300-18) (IRC) This part replaces 08400-26800.

42712-KC6-005

Unavailable

TUBE (275/300-18) (IRC)

42712-KC6-005

Unavailable

TUBE (275/300-18) (IRC) This part replaces 42712-168-004.

42712-KC6-005

Unavailable

TUBE (275/300-18) (IRC) This part replaces 42712-268-003.

42712-KC6-005

Unavailable

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

PLATE, BRAKE INDICATOR (NOT AVAILABLE)

43145-369-000

Unavailable

AXLE, FR. WHEEL (NOT AVAILABLE)

44301-312-000

Unavailable

SLEEVE, FR. WHEEL AXLE (NOT AVAILABLE)

44302-344-000

Unavailable

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE)

44311-344-000

Unavailable

HUB, FR. WHEEL (NOT AVAILABLE)

44601-286-010

Unavailable

BALANCER, WHEEL (20G)

44606-283-000

$8.89

BALANCER, WHEEL (15G)

44607-283-000

$8.08

BALANCER, WHEEL (10G)

44608-283-000

Unavailable

BALANCER, WHEEL (5G)

44609-283-000

$3.93

COLLAR, FR. AXLE DISTANCE

44620-286-000

Unavailable

RIM, FR. WHEEL (NOT AVAILABLE)

44701-235-003

Unavailable

TIRE, FR. (3.00-18) (BS) (NOT AVAILABLE)

44711-333-003

Unavailable

GEAR, SPEEDOMETER

44806-286-010

Unavailable

WASHER, SPEEDOMETER GEAR (NOT AVAILABLE)

44809-286-010

Unavailable

PANEL, FR. BRAKE (NOT AVAILABLE)

45010-369-010

Unavailable

WASHER, FR. ANCHOR PIN (NOT AVAILABLE)

45106-235-000

Unavailable

SHOE, FR. BRAKE (NOT AVAILABLE)

45120-369-670

Unavailable

CAM A, FR. BRAKE (NOT AVAILABLE)

45131-369-000

Unavailable

CAM B, FR. BRAKE (NOT AVAILABLE)

45132-369-000

Unavailable

SPRING, BRAKE SHOE (NOT AVAILABLE)

45133-345-000

Unavailable

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

ARM, FR. BRAKE (NOT AVAILABLE)

45410-369-000

Unavailable

ARM, FR. BRAKE (NOT AVAILABLE)

45420-369-000

Unavailable

ARM, FR. BRAKE STOPPER (NOT AVAILABLE)

45431-344-000

Unavailable

GROMMET, CABLE This part replaces 45451-283-000.

45451-367-690

$4.04

GROMMET, CABLE

45451-367-690

$4.04

SPRING, FR. BRAKE ARM RETURN (NOT AVAILABLE)

45461-222-000

Unavailable

FENDER, FR. (NOT AVAILABLE)

61100-369-700

Unavailable

BOLT, HEX. (8X28) This part replaces 93200-08028-0A.

93201-08028-0A

$1.75

BOLT, HEX. (8X28)

93201-08028-0A

$1.75

WASHER B, TONGUED (8.2MM) (NOT AVAILABLE)

90533-286-000

Unavailable

WASHER (14MM)

90549-121-000

Unavailable

OIL SEAL (54X66X7)

91251-230-003

$12.60

OIL SEAL (26X42X7)

91252-230-003

$10.56

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

BOLT, HEX. (6X35) This part replaces 92200-06036.

92201-06035-0A

$1.75

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94002-06000-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

PIN, COTTER (2.0X35)

94201-20350

$1.49

PIN, COTTER (2.0X35)

94201-20350

$1.49

BOLT, FLANGE (6X14) This part replaces 95700-06014.

95701-06014-00

$1.49

BOLT, FLANGE (6X14) This part replaces 95700-06014-00.

95701-06014-00

$1.49

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

BOLT, FLANGE (6X25) This part replaces 95700-06025-00.

95701-06025-00

$1.80

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

SPOKE B, INSIDE (9X154) (NOT AVAILABLE)

97392-52148-1

Unavailable

SPOKE B (9X153.5) This part replaces 97716-52147-1.

97716-52147-10

$3.98

SPOKE B (9X153.5)

97716-52147-10

$3.98
