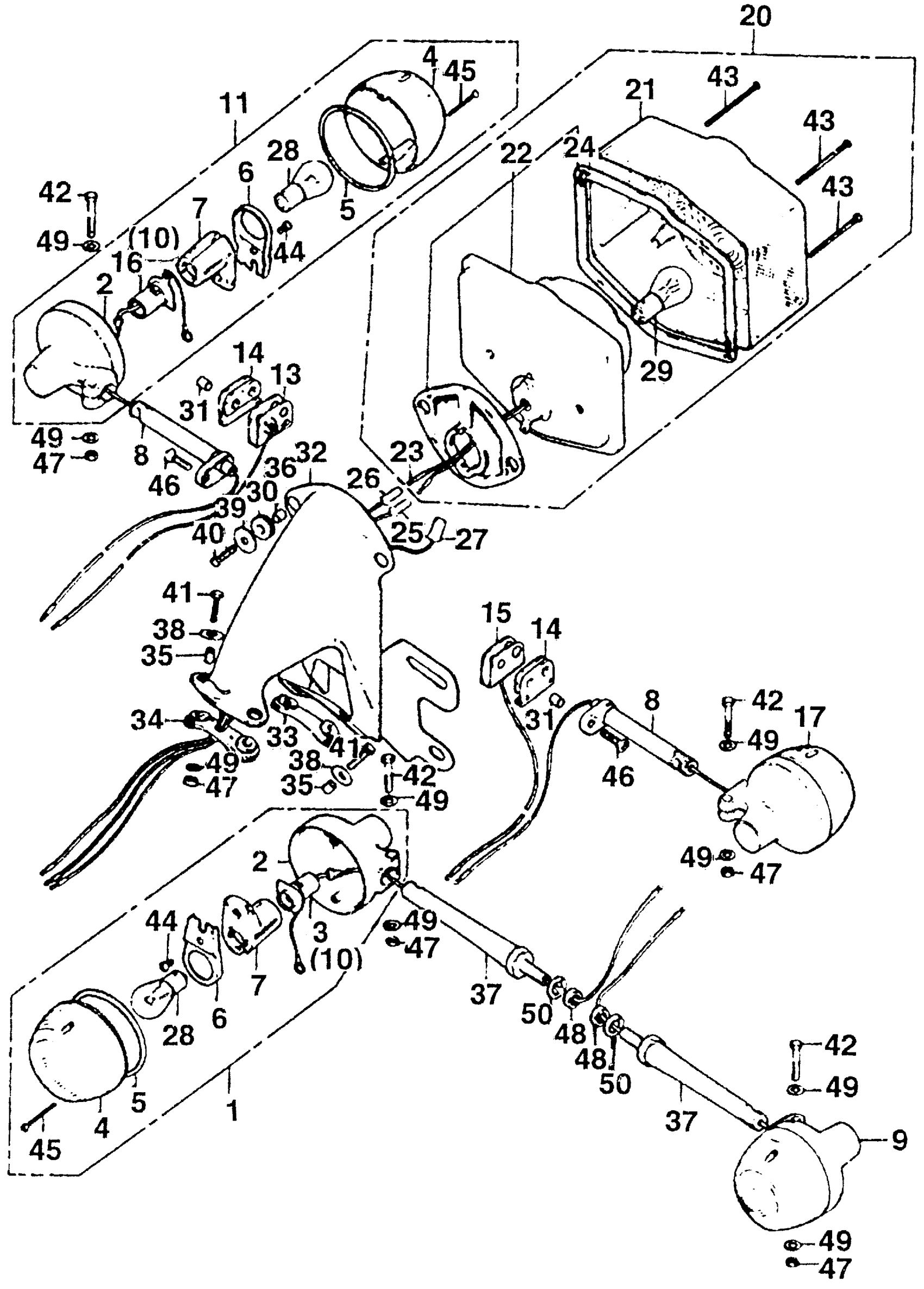

Honda CL200A MOTORCYCLE, JPN, VIN# CL200-1000001 TURN SIGNAL + TAILLIGHT Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. RR. This part replaces 33600-300-000.

33600-306-679

$50.59

1

TURN SIGNAL ASSY., R. RR. This part replaces 33600-306-670.

33600-306-679

$50.59

1

TURN SIGNAL ASSY., R. RR.

33600-306-679

$50.59

1

TURN SIGNAL ASSY., R. RR. This part replaces 33600-415-000.

33600-306-679

$50.59

1

TURN SIGNAL ASSY., R. RR. This part replaces 33650-306-670.

33600-306-679

$50.59

2

BASE, TURN SIGNAL This part replaces 33401-292-003.

33401-341-701

$39.39

2

BASE, TURN SIGNAL

33401-341-701

$39.39

3

SOCKET, R. RR. TURN SIGNAL (NOT AVAILABLE)

33610-300-000

Unavailable

4

LENS, FR. TURN SIGNAL (STANLEY) This part replaces 33402-268-671.

33402-268-672

$8.92

4

LENS, FR. TURN SIGNAL (STANLEY)

33402-268-672

$8.92

4

LENS, FR. TURN SIGNAL (STANLEY) This part replaces 33404-268-671.

33402-268-672

$8.92

5

GASKET, TURN SIGNAL LENS This part replaces 33406-268-671.

33443-268-671

$2.13

5

GASKET, TURN SIGNAL LENS

33443-268-671

$2.13

6

HOLDER, FR. TURN SIGNAL SOCKET (STANLEY) (NOT AVAILABLE)

33407-284-003

Unavailable

7

RUBBER, TURN SIGNAL CUSHION (STANLEY) (NOT AVAILABLE)

33408-341-701

Unavailable

8

STAY, RR. TURN SIGNAL (NOT AVAILABLE)

33441-455-670

Unavailable

9

TURN SIGNAL ASSY., R. RR.

33600-306-679

$50.59

9

TURN SIGNAL ASSY., R. RR. This part replaces 33650-300-000.

33600-306-679

$50.59

10

SOCKET, L. RR. TURN SIGNAL (NOT AVAILABLE)

33660-300-000

Unavailable

11

TURN SIGNAL ASSY., R. RR. This part replaces 33600-306-670.

33600-306-679

$50.59

11

TURN SIGNAL ASSY., R. RR.

33600-306-679

$50.59

13

STOPPER, R. RR. TURN SIGNAL (NOT AVAILABLE)

33605-333-000

Unavailable

14

RUBBER, RR. TURN SIGNAL MOUNT (NOT AVAILABLE)

33606-354-000

Unavailable

15

STOPPER, L. RR. TURN SIGNAL (NOT AVAILABLE)

33609-457-670

Unavailable

16

SOCKET, R. RR. TURN SIGNAL (NOT AVAILABLE)

33610-306-670

Unavailable

17

TURN SIGNAL ASSY., R. RR. This part replaces 33600-306-670.

33600-306-679

$50.59

17

TURN SIGNAL ASSY., R. RR.

33600-306-679

$50.59

17

TURN SIGNAL ASSY., R. RR. This part replaces 33650-306-670.

33600-306-679

$50.59

18

SOCKET, L. RR. TURN SIGNAL (NOT AVAILABLE)

33660-306-670

$9.69

20

TAILLIGHT UNIT (12V 32/3CP) (NOT AVAILABLE)

33701-354-670

Unavailable

21

LENS, TAILLIGHT

33702-341-671

Unavailable

22

BASE, TAILLIGHT (NOT AVAILABLE)

33703-354-670

Unavailable

23

WIRE, TAILLIGHT

33708-098-000

Unavailable

23

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

24

GASKET, TAILLIGHT LENS

33709-341-671

Unavailable

25

WIRE, STOP LIGHT (NOT AVAILABLE)

33710-342-670

Unavailable

26

WIRE, TAILLIGHT (NOT AVAILABLE)

33711-342-670

Unavailable

27

CABLE, TAILLIGHT GROUND (NOT AVAILABLE)

33712-342-670

Unavailable

28

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

29

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$4.15

29

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$4.15

30

RUBBER, RR. FENDER CUSHION

80101-283-000

$4.91

31

COLLAR A, RR. FENDER This part replaces 80108-061-000.

80108-061-010

$4.12

31

COLLAR A, RR. FENDER

80108-061-010

$4.12

32

BRACKET, NUMBER PLATE *NH1* (BLACK) (NOT AVAILABLE)

84701-341-670B

Unavailable

33

RUBBER B, NUMBER PLATE BRACKET CUSHION (NOT AVAILABLE)

84702-354-670

Unavailable

34

RUBBER A, NUMBER PLATE BRACKET CUSHION (NOT AVAILABLE)

84703-354-670

Unavailable

35

COLLAR, NUMBER BRACKET SET (NOT AVAILABLE)

84707-342-000

Unavailable

36

COLLAR, TAILLIGHT UNIT

84706-378-000

Unavailable

37

BOLT, FR. TURN SIGNAL SET (NOT AVAILABLE)

90154-455-670

Unavailable

38

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

39

WASHER (20MM)

90581-310-000

$1.90

39

WASHER (20MM) This part replaces 90581-342-000.

90581-310-000

$1.90

40

BOLT, HEX. (5X25) This part replaces 92000-05025-0A.

92101-05025-0A

$1.49

40

BOLT, HEX. (5X25)

92101-05025-0A

$1.49

41

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

41

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

42

BOLT, HEX. (6X28) This part replaces 92000-06028-02.

92201-06028-0B

$2.31

43

SCREW, PAN (4X55)

93500-04055-0B

$1.49

44

SCREW, PAN (5X8)

93500-05008-0A

$1.49

45

SCREW, OVAL (3X25)

93700-03025-0B

$1.49

46

SCREW, OVAL (6X25)

93700-06025-0B

$1.49

46

SCREW, OVAL (6X25) This part replaces 93708-06025-0B.

93700-06025-0B

$1.49

47

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

47

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

47

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

47

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

47

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

47

NUT, HEX. (6MM)

94001-06200-0S

$1.49

47

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

48

NUT, HEX. (10MM)

94001-10000-0S

$1.49

49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

49

WASHER, PLAIN (6MM)

94101-06800

$1.49

50

WASHER, SPRING (8MM)

94111-10000

$1.49
