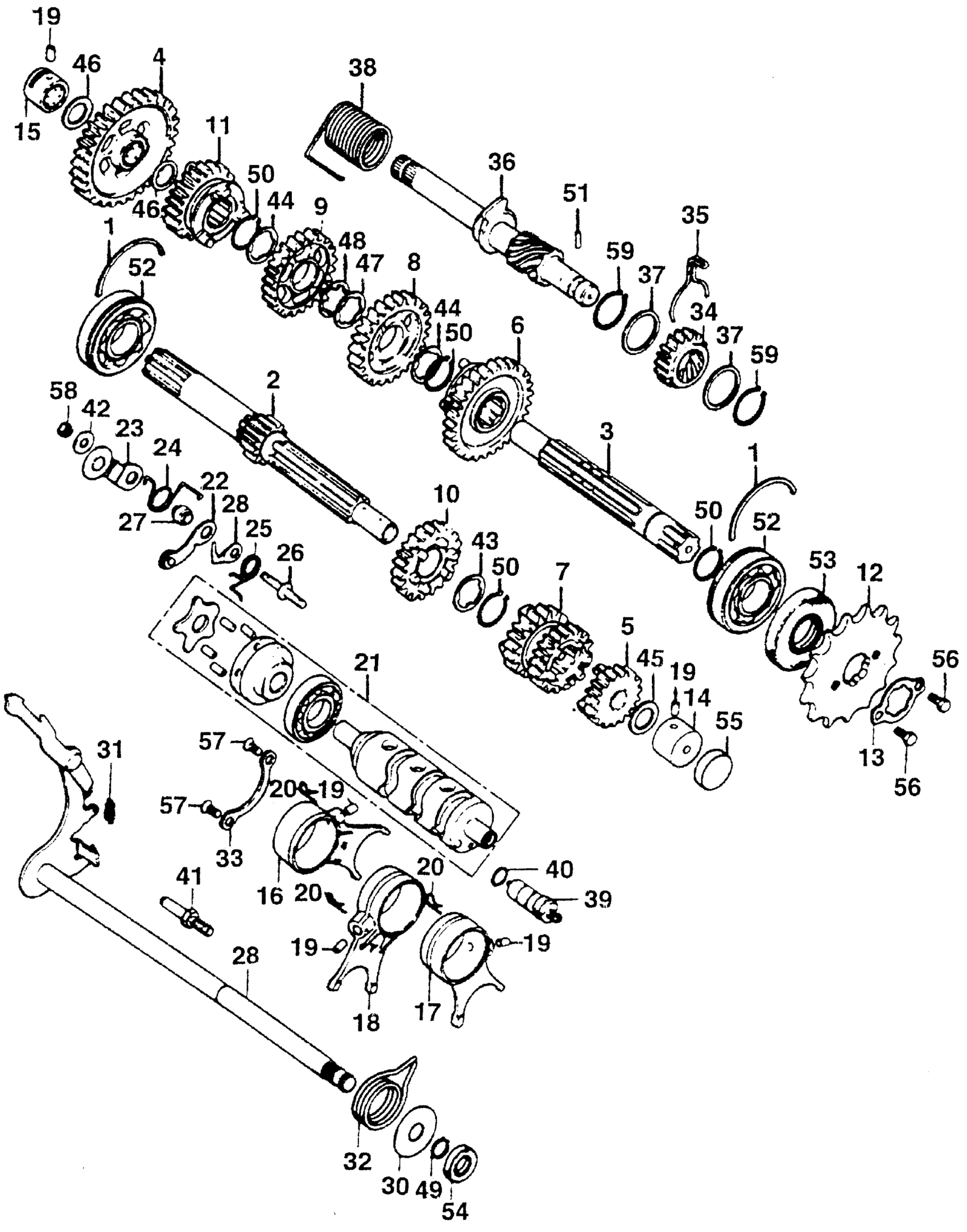

Honda CL200A MOTORCYCLE, JPN, VIN# CL200-1000001 TRANSMISSION + GEARSHIFT DRUM Diagram

#

Description
Price

1

RING A, BALL BEARING SET (NOT AVAILABLE) This part replaces 13491-200-010.

13495-200-010

Unavailable

1

RING A, BALL BEARING SET (NOT AVAILABLE)

13495-200-010

Unavailable

2

MAINSHAFT, TRANSMISSION (13T)

23211-354-300

Unavailable

3

COUNTERSHAFT, TRANSMISSION

23221-354-300

Unavailable

4

GEAR, COUNTERSHAFT FIRST (36T)

23420-362-000

Unavailable

5

GEAR, MAINSHAFT SECOND (17T) (NOT AVAILABLE)

23430-235-000

Unavailable

6

GEAR, COUNTERSHAFT SECOND (36T)

23441-362-000

Unavailable

7

GEAR, MAINSHAFT SHIFTING (20T 30T) (NOT AVAILABLE)

23451-235-000

Unavailable

8

GEAR, COUNTERSHAFT THIRD (29T) (NOT AVAILABLE)

23461-354-000

Unavailable

9

GEAR, COUNTERSHAFT FOURTH (27T) (NOT AVAILABLE)

23471-354-000

Unavailable

10

GEAR, MAINSHAFT FIFTH (25T) (NOT AVAILABLE)

23481-235-000

Unavailable

11

GEAR, COUNTERSHAFT FIFTH (24T)

23491-354-000

Unavailable

12

SPROCKET, DRIVE (15T) (NOT AVAILABLE) This part replaces 23801-354-000.

23803-357-810

Unavailable

12

SPROCKET, DRIVE (15T) (NOT AVAILABLE)

23803-357-810

Unavailable

12

SPROCKET, DRIVE (15T) (NOT AVAILABLE) This part replaces 23803-358-000.

23803-357-810

Unavailable

13

PLATE B, FIXING This part replaces 23811-028-000.

95014-92100

$1.49

13

PLATE B, FIXING

95014-92100

$1.49

14

BUSH A, BEARING (15MM) (NOT AVAILABLE)

23931-354-000

Unavailable

15

BUSH, BEARING (16MM) (NOT AVAILABLE)

23932-354-000

Unavailable

16

FORK, R. GEARSHIFT

24211-354-000

Unavailable

17

FORK, L. GEARSHIFT (NOT AVAILABLE)

24221-235-000

Unavailable

18

FORK, CENTER GEARSHIFT

24231-235-000

Unavailable

19

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

20

CLIP, GEARSHIFT FORK GUIDE (NOT AVAILABLE)

24263-283-000

Unavailable

21

DRUM, GEARSHIFT (NOT AVAILABLE)

24300-354-000

Unavailable

22

ARM, NEUTRAL STOPPER

24420-354-000

Unavailable

23

STOPPER, SHIFT DRUM (NOT AVAILABLE) This part replaces 24430-302-000.

24430-302-010

Unavailable

23

STOPPER, SHIFT DRUM (NOT AVAILABLE)

24430-302-010

Unavailable

24

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-302-000

Unavailable

25

SPRING, NEUTRAL STOPPER (NOT AVAILABLE)

24436-315-000

Unavailable

26

PIN, SHIFT DRUM STOPPER (NOT AVAILABLE)

24437-302-000

Unavailable

27

COLLAR, SHIFT DRUM STOPPER (NOT AVAILABLE)

24438-302-000

$5.15

28

PLATE, STOPPER ARM (NOT AVAILABLE)

24439-302-000

Unavailable

29

SPINDLE, GEARSHIFT

24610-302-020

Unavailable

30

STOPPER, GEARSHIFT SPINDLE (NOT AVAILABLE)

24621-200-000

Unavailable

31

SPRING, GEARSHIFT ARM

24641-216-000

$2.70

32

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-235-000

Unavailable

33

PLATE, BEARING SET (NOT AVAILABLE)

24710-235-000

Unavailable

34

PINION, KICK STARTER (NOT AVAILABLE)

28211-235-020

Unavailable

35

SPRING, FRICTION (NOT AVAILABLE)

28239-235-000

Unavailable

36

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-235-000

Unavailable

37

WASHER, KICK STARTER SPINDLE (NOT AVAILABLE)

28252-235-000

Unavailable

38

SPRING, KICK STARTER (NOT AVAILABLE)

28261-235-000

Unavailable

39

SWITCH, NEUTRAL (NOT AVAILABLE) | Use up to Engine SN 1007000 This part replaces 35750-333-013.

35750-333-023

Unavailable

39

SWITCH, NEUTRAL (NOT AVAILABLE)

35750-333-023

Unavailable

40

O-RING (NOT AVAILABLE)

35751-333-003

Unavailable

41

PIN, RETURN SPRING

90015-286-000

Unavailable

42

WASHER, GEARSHIFT DRUM STOPPER (NOT AVAILABLE)

90417-302-000

Unavailable

43

WASHER A, THRUST (20MM) (NOT AVAILABLE)

90451-230-000

Unavailable

44

WASHER A, THRUST (20MM) (NOT AVAILABLE)

90451-246-000

Unavailable

45

WASHER, THRUST (15MM)

90412-187-000

$2.05

45

WASHER, THRUST (15MM) This part replaces 90451-354-000.

90412-187-000

$2.05

46

WASHER, THRUST (16MM)

90453-235-000

$1.83

47

WASHER B, THRUST (20MM) (NOT AVAILABLE)

90461-235-000

Unavailable

48

WASHER, LOCK (20MM) (NOT AVAILABLE)

90462-235-000

Unavailable

49

CIRCLIP (12MM) (NOT AVAILABLE)

90603-200-000

Unavailable

50

SET-RING (20MM)

90605-200-000

$2.92

51

PIN, KNOCK (4X15) (NOT AVAILABLE)

90701-216-000

Unavailable

52

BEARING, BALL (6304HS)

91003-235-000

Unavailable

53

OIL SEAL (20X52X9) (NOT AVAILABLE)

91201-216-005

Unavailable

54

OIL SEAL (12X25X4.5) This part replaces 91201-283-005.

91202-426-003

$5.57

54

OIL SEAL (12X25X4.5)

91202-426-003

$5.57

55

CAP, OIL (NOT AVAILABLE) This part replaces 91207-354-003.

91204-KV0-000

Unavailable

56

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

56

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

57

SCREW, FLAT (6X12) This part replaces 93600-06012.

93600-06012-0A

$1.49

57

SCREW, FLAT (6X12)

93600-06012-0A

$1.49

58

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

58

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

58

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

58

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

58

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

58

NUT, HEX. (6MM)

94001-06200-0S

$1.49

58

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

59

CIRCLIP (OUTER) (25MM)

94510-25000

$1.49
