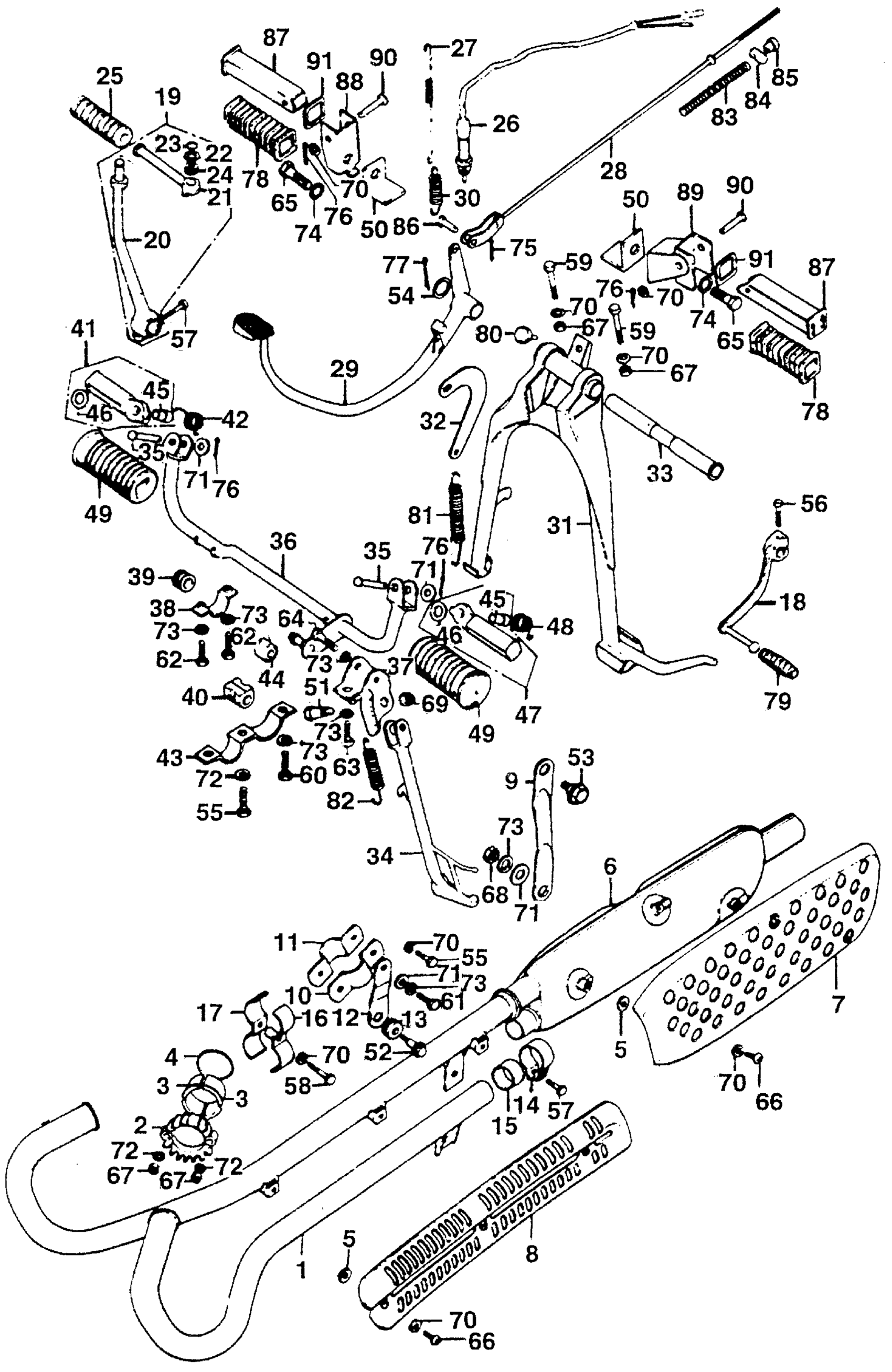

Honda CL200A MOTORCYCLE, JPN, VIN# CL200-1000001 CL MUFFLER + STAND + PEDAL Diagram

#

Description
Price

1

PIPE, L. EX. (NOT AVAILABLE)

18220-378-000

Unavailable

2

JOINT, EX. PIPE (NOT AVAILABLE)

18231-302-000

Unavailable

3

COLLAR, EX. PIPE JOINT (NOT AVAILABLE)

18233-306-010

Unavailable

4

GASKET, EX. PIPE This part replaces 18291-KE5-000.

18291-MN5-650

$3.77

4

GASKET, EX. PIPE

18291-MN5-650

$3.77

4

GASKET, EX. PIPE This part replaces 18291-306-000.

18291-MN5-650

$3.77

5

GASKET, PROTECTOR

18292-167-890

$1.88

5

GASKET, PROTECTOR This part replaces 18292-329-000.

18292-167-890

$1.88

6

MUFFLER, R. EX. This part replaces 18300-378-670.

18300-378-677

$396.11

6

MUFFLER, R. EX.

18300-378-677

$396.11

7

PROTECTOR, MUFFLER (NOT AVAILABLE)

18315-378-000

Unavailable

8

PROTECTOR, EX. PIPE *MRCR2* (CHROME PLATING)

18325-343-670XW

Unavailable

9

STAY, MUFFLER MOUNT *NH1* (BLACK) (NOT AVAILABLE)

18340-454-000B

Unavailable

10

STAY A, MUFFLER MOUNT (NOT AVAILABLE)

18353-307-000

Unavailable

11

STAY B, MUFFLER MOUNT (NOT AVAILABLE)

18354-307-000

Unavailable

12

PLATE, MUFFLER MOUNT (NOT AVAILABLE)

18355-378-000

Unavailable

13

RUBBER, MUFFLER MOUNT (NOT AVAILABLE)

18357-305-000

Unavailable

14

BAND, MUFFLER (NOT AVAILABLE)

18371-378-000

Unavailable

15

GASKET, MUFFLER (NOT AVAILABLE)

18391-236-000

Unavailable

16

HOLDER A, EX. PIPE (NOT AVAILABLE)

18395-236-000

Unavailable

17

HOLDER B, EX. PIPE (NOT AVAILABLE)

18396-236-000

Unavailable

18

PEDAL, GEARSHIFT (NOT AVAILABLE) This part replaces 24700-313-010.

24701-313-010

Unavailable

18

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-313-010

Unavailable

19

ARM ASSY., KICK STARTER (NOT AVAILABLE)

28300-342-670

Unavailable

20

ARM, KICK STARTER

28301-342-000

Unavailable

21

PEDAL, KICK STARTER (NOT AVAILABLE)

28302-342-300

Unavailable

22

WASHER, KICK STARTER KNUCKLE

28303-001-000

$1.79

23

CLIP, KICK STARTER KNUCKLE This part replaces 28304-001-000.

28324-001-000

$2.92

23

CLIP, KICK STARTER KNUCKLE

28324-001-000

$2.92

24

SPRING, KICK STARTER KNUCKLE This part replaces 28305-001-000.

28322-001-000

$2.84

24

SPRING, KICK STARTER KNUCKLE

28322-001-000

$2.84

25

RUBBER, KICK STARTER

28311-342-000

$6.71

26

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

26

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$16.97

27

SPRING, STOP SWITCH

35357-KE5-000

Unavailable

27

SPRING, STOP SWITCH This part replaces 35357-303-010.

35357-KE5-000

Unavailable

28

ROD, RR. BRAKE (NOT AVAILABLE)

43451-354-000

Unavailable

29

PEDAL, BRAKE (NOT AVAILABLE)

46510-354-000

Unavailable

30

SPRING, BRAKE PEDAL

46541-354-000

Unavailable

31

STAND, MAIN *NH1* (BLACK) (NOT AVAILABLE)

50500-342-000B

Unavailable

32

HOOK, MAIN STAND SPRING (NOT AVAILABLE)

50523-303-000

Unavailable

33

SHAFT, MAIN STAND PIVOT This part replaces 50526-286-000.

50526-399-000

Unavailable

33

SHAFT, MAIN STAND PIVOT

50526-399-000

Unavailable

34

BAR, SIDE STAND *NH1* (BLACK) (NOT AVAILABLE)

50530-316-670B

Unavailable

35

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

35

PIN, STEP BAR JOINT

50603-033-010

$3.30

36

BAR, STEP (NOT AVAILABLE)

50610-354-671

Unavailable

37

BRACKET, SIDE STAND PIVOT

50611-336-000

Unavailable

38

HOLDER, R. STEP (LOWER) (NOT AVAILABLE)

50613-354-000

Unavailable

39

RUBBER B, STEP MOUNT (NOT AVAILABLE)

50614-286-000

Unavailable

40

RUBBER B, STEP MOUNT (NOT AVAILABLE)

50614-354-000

Unavailable

41

ARM, R. STEP (NOT AVAILABLE)

50616-310-000

Unavailable

42

SPRING, R. FOOTPEG RETURN (NOT AVAILABLE)

50617-283-000

Unavailable

43

HOLDER, L. STEP (LOWER)

50618-354-000

Unavailable

44

RUBBER A, STEP MOUNT (NOT AVAILABLE)

50619-286-000

Unavailable

45

PIPE, FOOTPEG (INNER) (NOT AVAILABLE)

50620-310-000

Unavailable

46

PATCH, STEP (NOT AVAILABLE)

50621-310-000

Unavailable

47

ARM, L. STEP (NOT AVAILABLE)

50642-310-000

Unavailable

48

SPRING, L. STEP RETURN (NOT AVAILABLE)

50644-283-000

Unavailable

49

RUBBER, STEP

50661-333-000

Unavailable

50

PLATE, PILLION STEP ARM STOPPER (NOT AVAILABLE)

50722-378-000

Unavailable

51

SCREW, SIDE STAND PIVOT

90108-230-000

Unavailable

52

BOLT, FR. MUFFLER HANGER (NOT AVAILABLE)

90130-305-000

Unavailable

53

BOLT, MUFFLER STAY MOUNT (NOT AVAILABLE)

90166-454-000

Unavailable

54

WASHER (17.5MM)

90512-303-000

$1.77

55

BOLT, HEX. (6X16) This part replaces 92000-06016.

92101-06016-0A

$1.49

55

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

55

BOLT, HEX. (6X16) This part replaces 92000-06016-1A.

92101-06016-0A

$1.49

55

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

55

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

55

BOLT, HEX. (6X16) This part replaces 92200-06016-0A.

92101-06016-0A

$1.49

56

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

56

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

57

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

57

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

58

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

58

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

58

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

59

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

59

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

59

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

60

BOLT, HEX. (8X16) This part replaces 92000-08016-0A.

92101-08016-0A

$1.49

60

BOLT, HEX. (8X16)

92101-08016-0A

$1.49

61

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

61

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

62

BOLT, HEX. (8X25) This part replaces 92000-08025-0A.

92101-08025-0A

$1.74

62

BOLT, HEX. (8X25)

92101-08025-0A

$1.74

63

BOLT, HEX. (8X32) This part replaces 92000-08032-0A.

92101-08032-0B

$2.39

63

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.39

63

BOLT, HEX. (8X32)

92101-08032-0B

$2.39

64

BOLT, HEX. (8X35) This part replaces 92000-08036-0A.

92101-08035-0A

$1.49

64

BOLT, HEX. (8X35)

92101-08035-0A

$1.49

64

BOLT, HEX. (8X35) This part replaces 92101-08036-0A.

92101-08035-0A

$1.49

65

BOLT, HEX. (10X25) This part replaces 92000-10025-0A.

92101-10025-0A

$2.19

65

BOLT, HEX. (10X25)

92101-10025-0A

$2.19

66

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

66

SCREW, PAN (6X12)

93500-06012-0A

$1.49

66

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

67

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

67

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

67

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

67

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

67

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

67

NUT, HEX. (6MM)

94001-06200-0S

$1.49

67

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

68

NUT, HEX. (8MM)

94001-08000-0S

$1.49

69

NUT, HEX. (10MM)

94002-10000-0S

$4.06

70

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

70

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

70

WASHER, PLAIN (6MM)

94101-06800

$1.49

71

WASHER, PLAIN (8MM)

94101-08000

$1.49

72

WASHER, SPRING (6MM)

94111-06000

$1.49

73

WASHER, SPRING (8MM)

94111-08000

$1.49

74

WASHER, SPRING (8MM)

94111-10000

$1.49

75

PIN, COTTER (1.6X12)

94201-16120

$1.49

76

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

76

PIN, COTTER (1.6X25)

94201-16250

$1.49

77

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$1.49

77

PIN, COTTER (2.5MM)

94201-25300

$1.49

78

RUBBER, PILLION STEP

95011-31000

$7.16

79

RUBBER, SHIFT PEDAL

95011-40000

$1.49

80

RUBBER B, STAND STOPPER

95011-62000

$1.49

81

SPRING, MAIN STAND This part replaces 95014-71801.

95014-71802

Unavailable

81

SPRING, MAIN STAND

95014-71802

Unavailable

82

SPRING, SIDE STAND This part replaces 95014-72201.

95014-72204

$3.01

82

SPRING, SIDE STAND This part replaces 95014-72203.

95014-72204

$3.01

82

SPRING, SIDE STAND

95014-72204

$3.01

83

SPRING A, BRAKE ROD

95014-73100

$1.49

83

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

84

JOINT B, BRAKE ARM This part replaces 95015-32000.

95015-32001

$1.49

84

JOINT, BRAKE ARM

95015-32001

$1.49

85

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

86

PIN B, BRAKE ROD JOINT

95015-52000

$2.03

87

BAR B, PILLION STEP

95015-62000

$30.68

88

BRACKET B, PILLION STEP (NOT AVAILABLE)

95015-72100

Unavailable

89

BRACKET C, PILLION STEP (NOT AVAILABLE)

95015-73200

Unavailable

90

PIN B, PILLION FOOTPEG

95015-82000

$2.41

91

WASHER, FOOTPEG

95015-91000

$1.31
