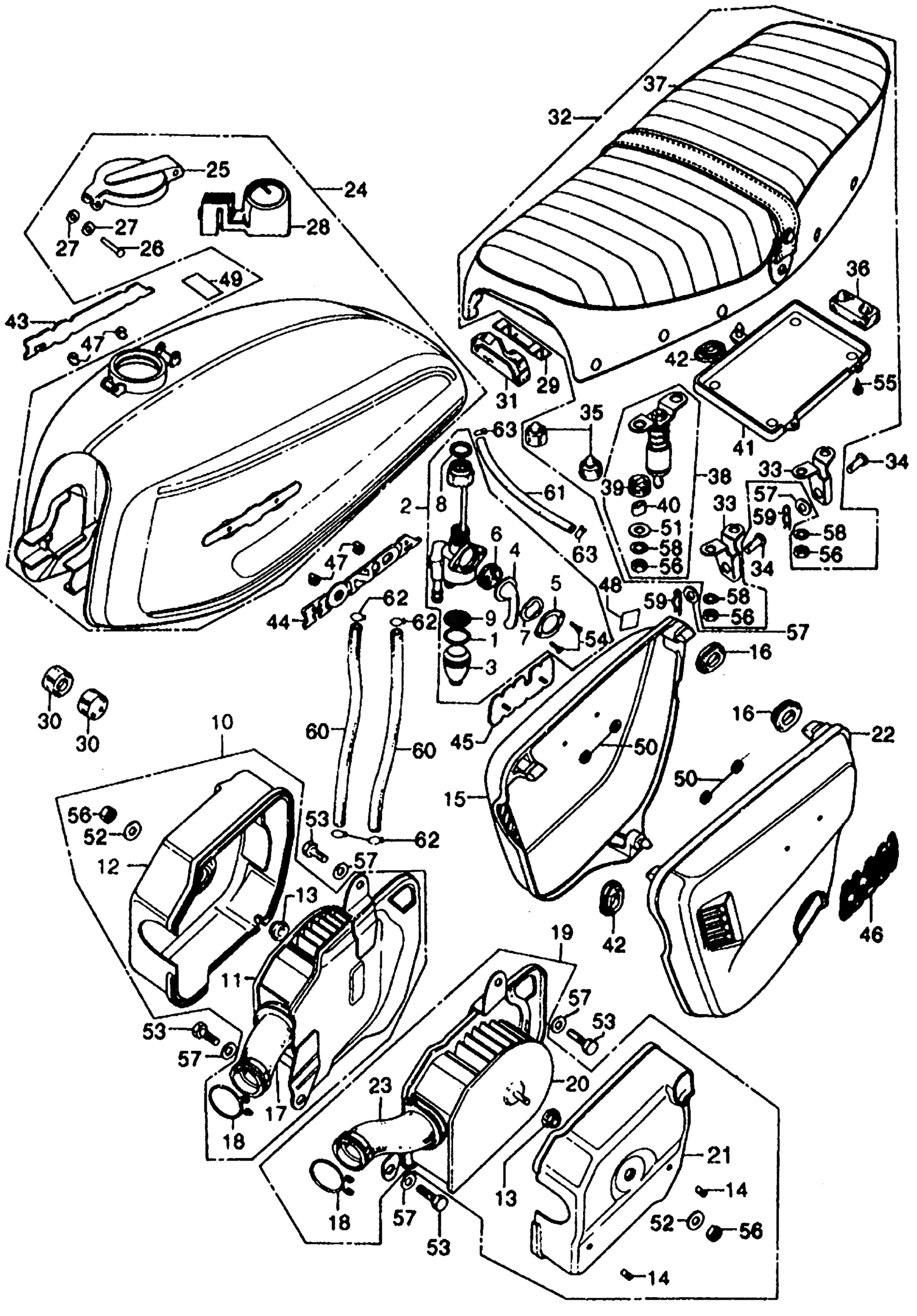

Honda CL200A MOTORCYCLE, JPN, VIN# CL200-1000001 CL FUEL TANK + SEAT + AIR CLEANER Diagram

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

16080-898-631

$24.34

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

O-RING (2.4X18.6) This part replaces 16955-283-000.

16075-GHB-B00

$4.67

O-RING (2.4X18.6) This part replaces 16958-011-000.

16075-GHB-B00

$4.67

O-RING (2.4X18.6) This part replaces 16958-028-000.

16075-GHB-B00

$4.67

PETCOCK ASSY. (NOT AVAILABLE)

16950-343-670

Unavailable

CUP, FUEL STRAINER

16952-028-000

Unavailable

LEVER, PETCOCK

16953-028-004

Unavailable

PLATE, PETCOCK LEVER SETTING

16954-028-000

Unavailable

GASKET, VALVE This part replaces 16955-028-004.

16957-ZE1-812

$3.08

GASKET, VALVE

16957-ZE1-812

$3.08

SPRING, PETCOCK LEVER This part replaces 16956-011-000.

16956-ZE1-811

$3.41

SPRING, PETCOCK LEVER This part replaces 16956-011-010.

16956-ZE1-811

$3.41

SPRING, PETCOCK LEVER This part replaces 16956-028-004.

16956-ZE1-811

$3.41

SPRING, PETCOCK LEVER This part replaces 16964-720-005.

16956-ZE1-811

$3.41

GASKET, JOINT NUT

16956-283-000

$4.67

SCREEN, FUEL STRAINER

16957-028-000

$16.22

AIR CLEANER ASSY., R. (NOT AVAILABLE)

17200-354-005

Unavailable

ELEMENT, R. AIR CLEANER (NOT AVAILABLE)

17210-351-005

Unavailable

CASE, L. AIR CLEANER (NOT AVAILABLE)

17214-351-000

Unavailable

RUBBER, AIR CLEANER HOUSING (NOT AVAILABLE)

17215-336-000

Unavailable

STOPPER, ELEMENT CASE (NOT AVAILABLE)

17216-316-000

Unavailable

COVER, R. AIR CLEANER *PB5CC* (CANDY RIVIERA BLUE CUSTOM) (NOT AVAILABLE)

17231-378-000PX

Unavailable

GROMMET A, AIR CLEANER HOUSING

17247-303-000

$8.13

TUBE, R. AIR CLEANER CONNECTING (NOT AVAILABLE)

17253-354-000

Unavailable

CLIP, AIR CLEANER CONNECTING TUBE (NOT AVAILABLE)

17255-315-670

Unavailable

AIR CLEANER ASSY., L. (NOT AVAILABLE)

17300-354-005

Unavailable

ELEMENT, L. AIR CLEANER (NOT AVAILABLE)

17310-351-005

Unavailable

CASE, L. AIR CLEANER (NOT AVAILABLE)

17314-351-000

Unavailable

COVER, L. AIR CLEANER *PB5CC* (CANDY RIVIERA BLUE CUSTOM) (NOT AVAILABLE)

17331-337-000PX

Unavailable

TUBE, L. AIR CLEANER CONNECTING (NOT AVAILABLE)

17353-354-000

Unavailable

TANK ASSY., FUEL *PB5CC* (CANDY RIVIERA BLUE CUSTOM) (NOT AVAILABLE)

17050-378-000PX

Unavailable

TANK ASSY., FUEL *PB5CC* (CANDY RIVIERA BLUE CUSTOM) (NOT AVAILABLE) This part replaces 17500-378-000PX.

17050-378-000PX

Unavailable

CAP, FUEL TANK

17510-323-310

Unavailable

PIN B, FUEL FILLER CAP (NOT AVAILABLE)

17514-323-300

Unavailable

WASHER, FILLER CAP FRICTION (NOT AVAILABLE)

17520-300-300

Unavailable

LATCH ASSY., FUEL FILLER CAP

17550-377-315

Unavailable

STAY, FUEL TANK SETTING (NOT AVAILABLE)

17551-313-000

Unavailable

RUBBER, FR. FUEL TANK

17611-303-000

$7.63

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-246-000

Unavailable

SEAT ASSY. *NH1L* (BLACK) (NOT AVAILABLE)

77200-454-000A

Unavailable

HINGE, SEAT (NOT AVAILABLE)

77201-317-670

Unavailable

PIN, SEAT HINGE (NOT AVAILABLE)

77203-317-670

Unavailable

RUBBER A, SEAT SETTING

77204-286-020

$10.02

RUBBER B, SEAT SETTING

77205-286-000

$5.28

RUBBER B, SEAT SETTING This part replaces 77205-292-010.

77205-286-000

$5.28

COVER, SEAT (NOT AVAILABLE)

77210-454-300

Unavailable

BAR ASSY., SEAT LOCK

77220-340-003

Unavailable

BAR ASSY., SEAT LOCK This part replaces 77220-340-010.

77220-340-003

Unavailable

BAR ASSY., SEAT LOCK This part replaces 77220-340-011.

77220-340-003

Unavailable

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-000.

77228-340-003

$4.24

RUBBER, SEAT LOCK BAR CUSHION This part replaces 77228-340-001.

77228-340-003

$4.24

RUBBER, SEAT LOCK BAR CUSHION

77228-340-003

$4.24

COLLAR, SEAT LOCK BAR This part replaces 77229-340-000.

77229-340-003

$2.92

COLLAR, SEAT LOCK BAR This part replaces 77229-340-001.

77229-340-003

$2.92

COLLAR, SEAT LOCK BAR

77229-340-003

$2.92

LID, SEAT (LOWER) (NOT AVAILABLE)

77250-342-300

Unavailable

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

EMBLEM, R. FUEL TANK (NOT AVAILABLE)

87122-343-670

Unavailable

EMBLEM, L. FUEL TANK (NOT AVAILABLE)

87123-343-670

Unavailable

EMBLEM, R. SIDE COVER (NOT AVAILABLE)

87125-378-000

Unavailable

EMBLEM, L. SIDE COVER

87126-378-000

Unavailable

NUT, EMBLEM CLAMP This part replaces 87311-516-000.

87311-634-600

$4.79

NUT, EMBLEM CLAMP

87311-634-600

$4.79

LABEL, HELMET HOLDER

87511-323-670

$2.72

LABEL, DRIVE CAUTION *NH0* (CHAMPIONSHIP WHITE)

87560-323-670A

$3.00

NUT, SPEED (3MM) This part replaces 90313-512-000.

90313-567-000

$3.97

NUT, SPEED (3MM)

90313-567-000

$3.97

WASHER, PLAIN (6MM) This part replaces 90514-700-000.

94103-06800

$1.49

WASHER, PLAIN (6MM)

94103-06800

$1.49

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

SCREW, PAN (3X6)

93500-03006-0A

$1.49

SCREW, TAPPING (5X8)

93901-25080

$1.49

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

NUT, HEX. (6MM)

94001-06200-0S

$1.49

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49

PIN, LOCK (6MM)

94251-06000

$1.49

BULK HOSE, FUEL (4.5X3000) (4.5X240)

95001-45003-60M

$36.67

BULK HOSE, FUEL (5.5X3000) (5.5X200)

95001-55003-60M

$47.32

CLIP, TUBE (B8)

95002-02080

$1.80

CLIP, TUBE (B10)

95002-02100

$1.90
