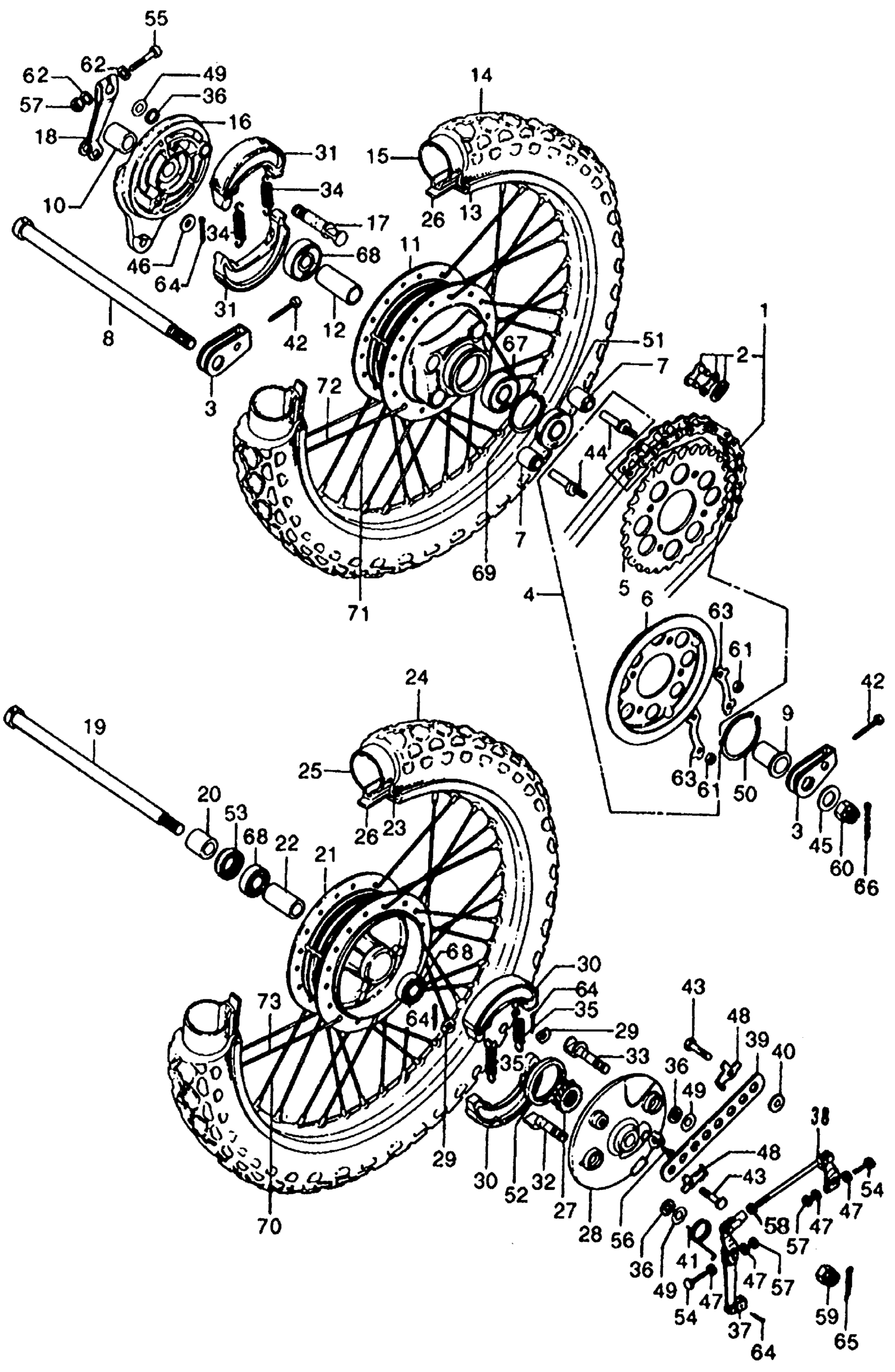

Honda CL200A MOTORCYCLE, JPN, VIN# CL200-1000001 CL FRONT WHEEL + REAL WHEEL Diagram

#

Description
Price

NI

SHOE KIT, BRAKE

06430-354-405

Unavailable

NI

SHOE KIT, BRAKE This part replaces 06430-354-670.

06430-354-405

Unavailable

NI

SHOE KIT, BRAKE This part replaces 431A2-354-670.

06430-354-405

Unavailable

NI

SHOE, FR. BRAKE (NOT AVAILABLE)

45120-354-670

Unavailable

1

CHAIN, DRIVE (102L) (DAIDO)

405W3-434-505

Unavailable

1

CHAIN, DRIVE (102L) (DAIDO) This part replaces 40530-343-003.

405W3-434-505

Unavailable

1

CHAIN, DRIVE (102L) (DAIDO) This part replaces 40530-343-005.

405W3-434-505

Unavailable

1

CHAIN, DRIVE (102L) (DAIDO) This part replaces 40530-343-015.

405W3-434-505

Unavailable

2

MASTER LINK (DAIDO) (NOT AVAILABLE)

40531-343-003

Unavailable

2

MASTER LINK (TAKASAGO) (NOT AVAILABLE)

40531-343-005

Unavailable

3

ADJUSTER, DRIVE CHAIN

40543-216-000

Unavailable

4

SPROCKET ASSY., FINAL DRIVEN (37T) (NOT AVAILABLE)

41200-378-000

Unavailable

5

SPROCKET, FINAL DRIVEN (37T)

41201-378-000

Unavailable

6

PLATE, SPROCKET SIDE

41211-378-000

Unavailable

7

BUSH, RR. WHEEL DAMPER

41241-307-010

$15.06

8

AXLE, RR. WHEEL This part replaces 42301-316-670.

42301-316-671

Unavailable

9

COLLAR, RR. WHEEL SIDE (NOT AVAILABLE)

42311-216-000

Unavailable

10

COLLAR, RR. BRAKE PANEL SIDE

42313-216-000

Unavailable

11

HUB, RR. WHEEL (NOT AVAILABLE)

42610-354-000

Unavailable

12

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-235-000

Unavailable

13

RIM, RR. WHEEL This part replaces 42701-290-003.

42701-413-671

Unavailable

13

RIM, RR. WHEEL This part replaces 42701-413-003.

42701-413-671

Unavailable

13

RIM, RR. WHEEL

42701-413-671

Unavailable

14

TIRE, RR. (3.00-18) (YOKOHAMA) (NOT AVAILABLE)

42711-315-009

Unavailable

15

TUBE, TIRE (3.50-18) This part replaces 08400-31300.

42712-446-631

Unavailable

15

TUBE, TIRE (3.50-18) This part replaces 08400-44600.

42712-446-631

Unavailable

15

TUBE, TIRE (3.50-18) This part replaces 42712-286-000.

42712-446-631

Unavailable

15

TUBE, TIRE (3.50-18) This part replaces 42712-287-003.

42712-446-631

Unavailable

15

TUBE, TIRE (3.50-18) This part replaces 42712-437-970.

42712-446-631

Unavailable

15

TUBE, TIRE (3.50-18) This part replaces 42712-437-971.

42712-446-631

Unavailable

15

TUBE, TIRE (3.50-18)

42712-446-631

Unavailable

16

PANEL, RR. BRAKE (NOT AVAILABLE)

43110-354-000

Unavailable

17

CAM, RR. BRAKE (NOT AVAILABLE)

43141-235-000

Unavailable

18

ARM, RR. BRAKE (NOT AVAILABLE)

43411-354-000

Unavailable

19

AXLE, FR. WHEEL

44301-304-971

Unavailable

20

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE) This part replaces 44311-240-000.

44311-286-000

Unavailable

21

HUB, FR. WHEEL (NOT AVAILABLE)

44601-354-000

Unavailable

22

COLLAR, FR. AXLE DISTANCE (NOT AVAILABLE)

44620-235-000

Unavailable

23

RIM, FR. WHEEL (NOT AVAILABLE)

44701-235-003

Unavailable

24

TIRE, RR. (2.75-18) (BS) (NOT AVAILABLE)

44711-305-003

Unavailable

24

TIRE, RR. (2.75-18) (BS) (NOT AVAILABLE) This part replaces 44711-305-013.

44711-305-003

Unavailable

25

TUBE (275/300-18) (IRC) This part replaces 0Y400-26800.

42712-KC6-005

Unavailable

25

TUBE (275/300-18) (IRC) This part replaces 08400-26800.

42712-KC6-005

Unavailable

25

TUBE (275/300-18) (IRC)

42712-KC6-005

Unavailable

25

TUBE (275/300-18) (IRC) This part replaces 42712-168-004.

42712-KC6-005

Unavailable

25

TUBE (275/300-18) (IRC) This part replaces 42712-268-003.

42712-KC6-005

Unavailable

25

TUBE (275/300-18) (IRC) This part replaces 42712-304-003.

42712-KC6-005

Unavailable

25

TUBE (275/300-18) (IRC) This part replaces 42712-315-009.

42712-KC6-005

Unavailable

25

TUBE (275/300-18) (IRC) This part replaces 42712-388-009.

42712-KC6-005

Unavailable

25

TUBE (275/300-18) (IRC) This part replaces 44712-305-003.

42712-KC6-005

Unavailable

26

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-003.

42713-304-003

$6.69

26

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-268-810.

42713-304-003

$6.69

26

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 42713-340-006.

42713-304-003

$6.69

26

FLAP, TIRE (1.40/1.60-18) (BS) This part replaces 44713-205-000.

42713-304-003

$6.69

27

GEAR, SPEEDOMETER (NOT AVAILABLE)

44840-354-000

Unavailable

28

PANEL, FR. BRAKE (NOT AVAILABLE)

45100-354-305

Unavailable

29

WASHER, FR. ANCHOR PIN (NOT AVAILABLE)

45106-235-000

Unavailable

30

SHOE, FR. BRAKE (NOT AVAILABLE) This part replaces 45120-235-000.

45120-354-670

Unavailable

30

SHOE, FR. BRAKE (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)

45120-354-670

Unavailable

31

*06430-354-405 This part replaces 43120-354-670.

43120-354-405

Unavailable

31

*06430-354-405 This part replaces 45120-240-010.

43120-354-405

Unavailable

32

CAM A, FR. BRAKE (NOT AVAILABLE)

45131-235-010

Unavailable

33

CAM B, FR. BRAKE

45132-235-000

Unavailable

34

SPRING, FR. BRAKE SHOE

45133-329-000

$2.75

35

SPRING, BRAKE SHOE (NOT AVAILABLE)

45133-345-000

Unavailable

36

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

37

ARM, FR. BRAKE (NOT AVAILABLE)

45410-336-000

$56.20

38

ARM, FR. BRAKE

45420-336-000

Unavailable

39

ARM, FR. BRAKE STOPPER (NOT AVAILABLE)

45431-453-000

Unavailable

40

COLLAR, FR. BRAKE STOPPER ARM (NOT AVAILABLE)

45432-283-000

Unavailable

41

SPRING, FR. BRAKE ARM RETURN (NOT AVAILABLE)

45461-222-000

Unavailable

42

BOLT, CHAIN ADJUSTING

90119-258-000

$5.99

43

BOLT, HEX. (8X28) This part replaces 90126-292-000.

93201-08028-0A

$1.75

43

BOLT, HEX. (8X28) This part replaces 93200-08028.

93201-08028-0A

$1.75

43

BOLT, HEX. (8X28) This part replaces 93200-08028-0A.

93201-08028-0A

$1.75

43

BOLT, HEX. (8X28)

93201-08028-0A

$1.75

44

BOLT, DRIVEN SPROCKET FIXING (NOT AVAILABLE)

90128-343-000

Unavailable

45

WASHER (16.5X30) (NOT AVAILABLE)

90523-286-000

Unavailable

46

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

47

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

48

WASHER B, TONGUED (8.2MM) (NOT AVAILABLE)

90533-286-000

Unavailable

49

WASHER (14MM)

90549-121-000

Unavailable

50

CIRCLIP (58MM)

90664-216-000

$5.55

51

DUST SEAL, WHEEL DAMPER (NOT AVAILABLE)

90757-216-003

Unavailable

52

OIL SEAL (54X66X7)

91251-230-003

$12.60

53

OIL SEAL (26X42X7)

91252-230-003

$10.56

53

OIL SEAL (26X42X7) This part replaces 91252-230-005.

91252-230-003

$10.56

54

BOLT, HEX. (6X32) This part replaces 92000-06032.

92101-06032-0A

$1.64

54

BOLT, HEX. (6X32) This part replaces 92000-06032-0A.

92101-06032-0A

$1.64

54

BOLT, HEX. (6X32)

92101-06032-0A

$1.64

55

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

55

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

55

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

56

SCREW, FLAT (5X20)

93600-05020-0A

$1.49

56

SCREW, FLAT (5X20) This part replaces 93617-05020-0A.

93600-05020-0A

$1.49

57

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

57

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

57

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

57

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

57

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

57

NUT, HEX. (6MM)

94001-06200-0S

$1.49

57

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

58

NUT, HEX. (6MM)

94002-06000-0S

$1.49

59

NUT, CASTLE (14MM) (NOT AVAILABLE)

94011-14020-0S

Unavailable

60

NUT, CASTLE (16MM) (NOT AVAILABLE)

94011-16220-0S

Unavailable

61

NUT, HEX. (8MM)

94031-08000

$1.49

62

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

62

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

62

WASHER, PLAIN (6MM)

94101-06800

$1.49

63

WASHER A3, TONGUED

94108-13000

$1.49

64

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

64

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

64

PIN, COTTER (2.0X22)

94201-20220

$1.49

64

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

64

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

64

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

64

PIN, COTTER (2.0X35)

94201-20350

$1.49

64

PIN, COTTER (2.0X22)

94201-29220

$1.49

65

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

65

PIN, COTTER (3.0X45) This part replaces 94201-30280.

94201-30450

$1.49

65

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

65

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

65

PIN, COTTER (3.0X45)

94201-30450

$1.49

66

PIN, COTTER (4.0X30)

94201-40300

$1.49

67

CIRCLIP (INNER) (47MM) (NOT AVAILABLE)

94521-47000

$2.39

67

CIRCLIP (INNER) (47MM) This part replaces 94524-47000.

94521-47000

$2.39

68

BEARING, RADIAL BALL (6302UU) This part replaces 96140-63020-10.

96150-63020-10

$15.36

68

BEARING, RADIAL BALL (6302UU)

96150-63020-10

$15.36

69

BEARING, RADIAL BALL (6303U)

96140-63030-10

$14.48

70

SPOKE B (9X158)

97394-52156-10

Unavailable

71

SPOKE B (9X163.5)

97395-52167-10

Unavailable

72

SPOKE B (9X162.5) (NOT AVAILABLE)

97660-52165-10

Unavailable

73

SPOKE B (9X157.5) (NOT AVAILABLE) This part replaces 97688-52155-10.

97688-52155-1

Unavailable
