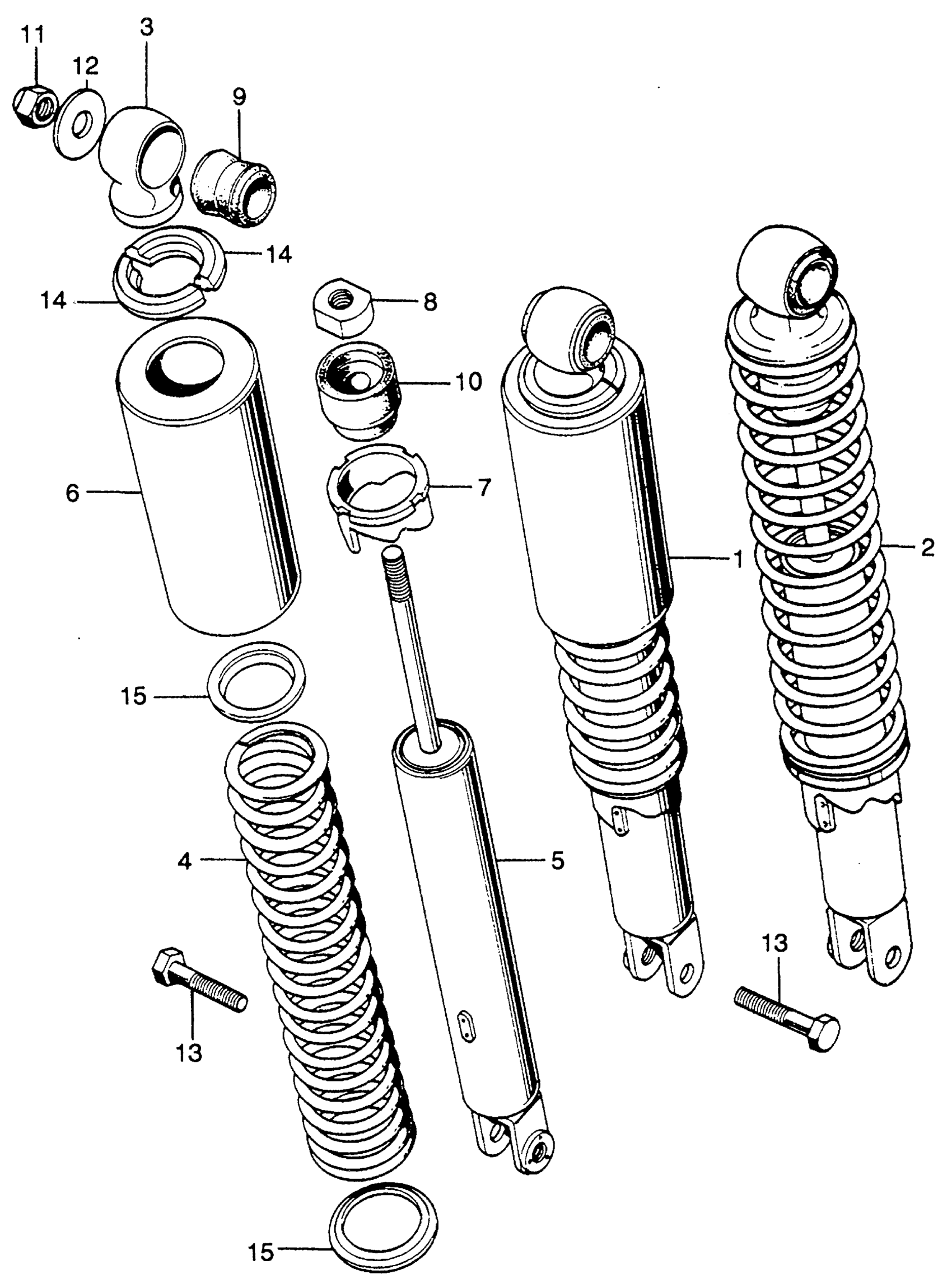

Honda CL175K7A MOTORCYCLE, JPN, VIN# CL175-8000001 REAR SHOCK ABSORBER K7 Diagram

#

Description

Price

2

SHOCK ABSORBER ASSY., RR. (NOT AVAILABLE)

52400-454-000

Unavailable

3

JOINT (UPPER) (NOT AVAILABLE)

52403-317-700

Unavailable

4

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52411-453-000

Unavailable

5

DAMPER, RR. (NOT AVAILABLE)

52420-453-000

Unavailable

6

ADJUSTER, RR. SHOCK ABSORBER SPRING

52422-455-000

Unavailable

7

STOPPER, SPRING SEAT (SHOWA)

52424-331-003

$8.22

8

NUT, LOCK (9MM) (NOT AVAILABLE)

52482-331-003

Unavailable

9

RUBBER, JOINT (NOT AVAILABLE)

52485-303-000

Unavailable

10

RUBBER, STOPPER

52517-331-003

Unavailable

11

NUT, FLANGE (10MM)

90309-315-000

Unavailable

12

WASHER, PLAIN (10.3MM)

90527-230-000

$1.90

13

BOLT, HEX. (8X32) This part replaces 92000-08032-0B.

92101-08032-0B

$2.80

13

BOLT, HEX. (8X32)

92101-08032-0B

$2.80

14

SEAT, RR. SHOCK ABSORBER SPRING (UPPER) (SHOWA) (NOT AVAILABLE)

52459-074-003

Unavailable

15

SEAT, SPRING (LOWER) (NOT AVAILABLE)

52458-317-700

Unavailable
