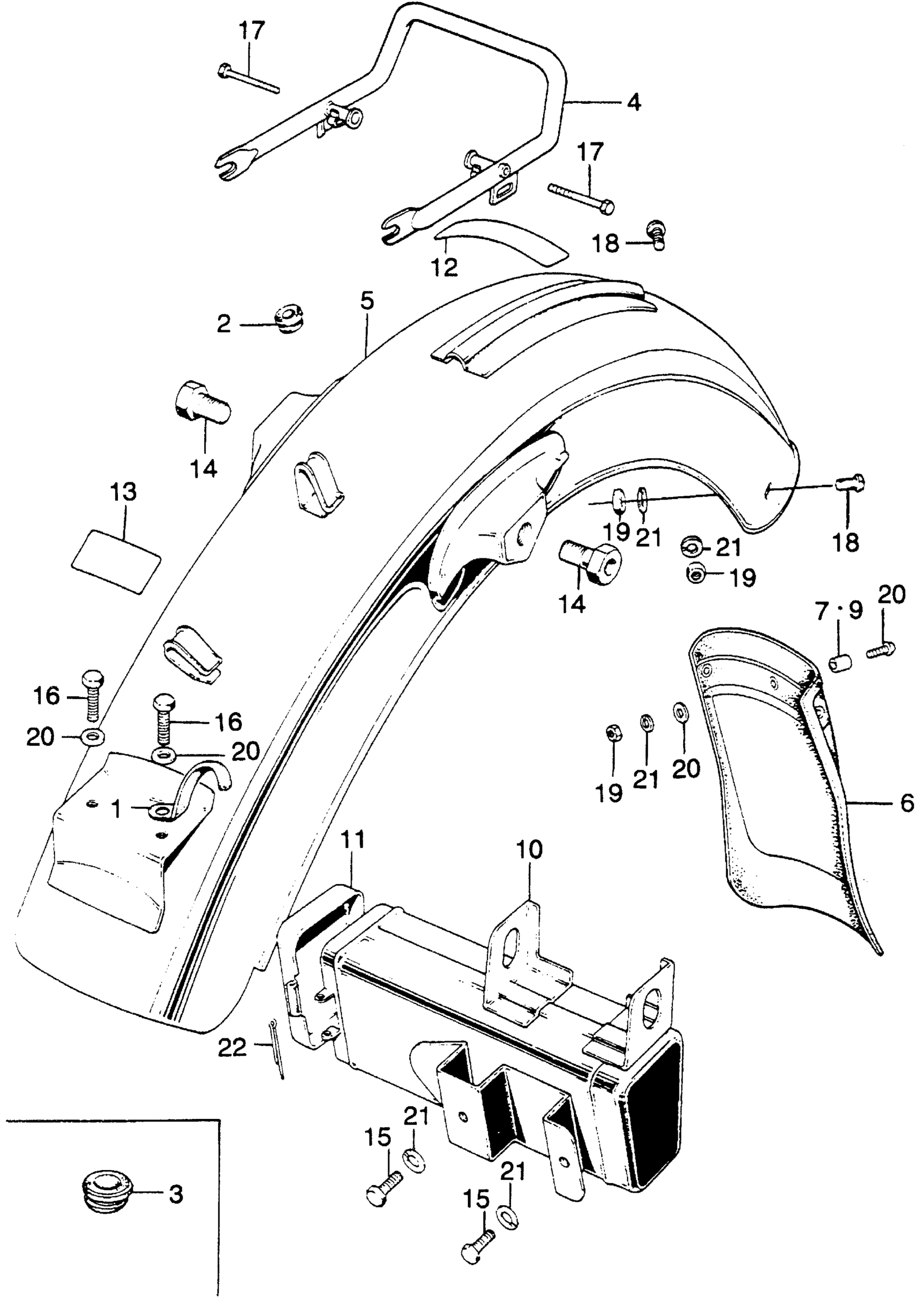

Honda CL175K4A MOTORCYCLE, JPN, VIN# CL175-5000001 REAR FENDER + TOOL BOX Diagram

#

Description
Price

1

CLIP, WIRE HARNESS (NOT AVAILABLE)

32172-315-000

Unavailable

5

FENDER, RR. *MRCR2* (CHROME PLATING) (NOT AVAILABLE)

80100-316-000XW

Unavailable

10

BOX, TOOL *NH1* (BLACK) (NOT AVAILABLE)

83500-306-000B

Unavailable

11

CAP, TOOL BOX *NH1* (BLACK)

83541-286-000B

Unavailable

14

BOLT, RR. FENDER MOUNT (NOT AVAILABLE) This part replaces 90162-303-000.

90162-351-000

Unavailable

14

BOLT, RR. FENDER MOUNT (NOT AVAILABLE)

90162-351-000

Unavailable

15

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

15

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

16

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

16

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

WASHER, SPRING (6MM)

94111-06000

$1.49

22

PIN, COTTER (2.0X35)

94201-20350

$1.49
