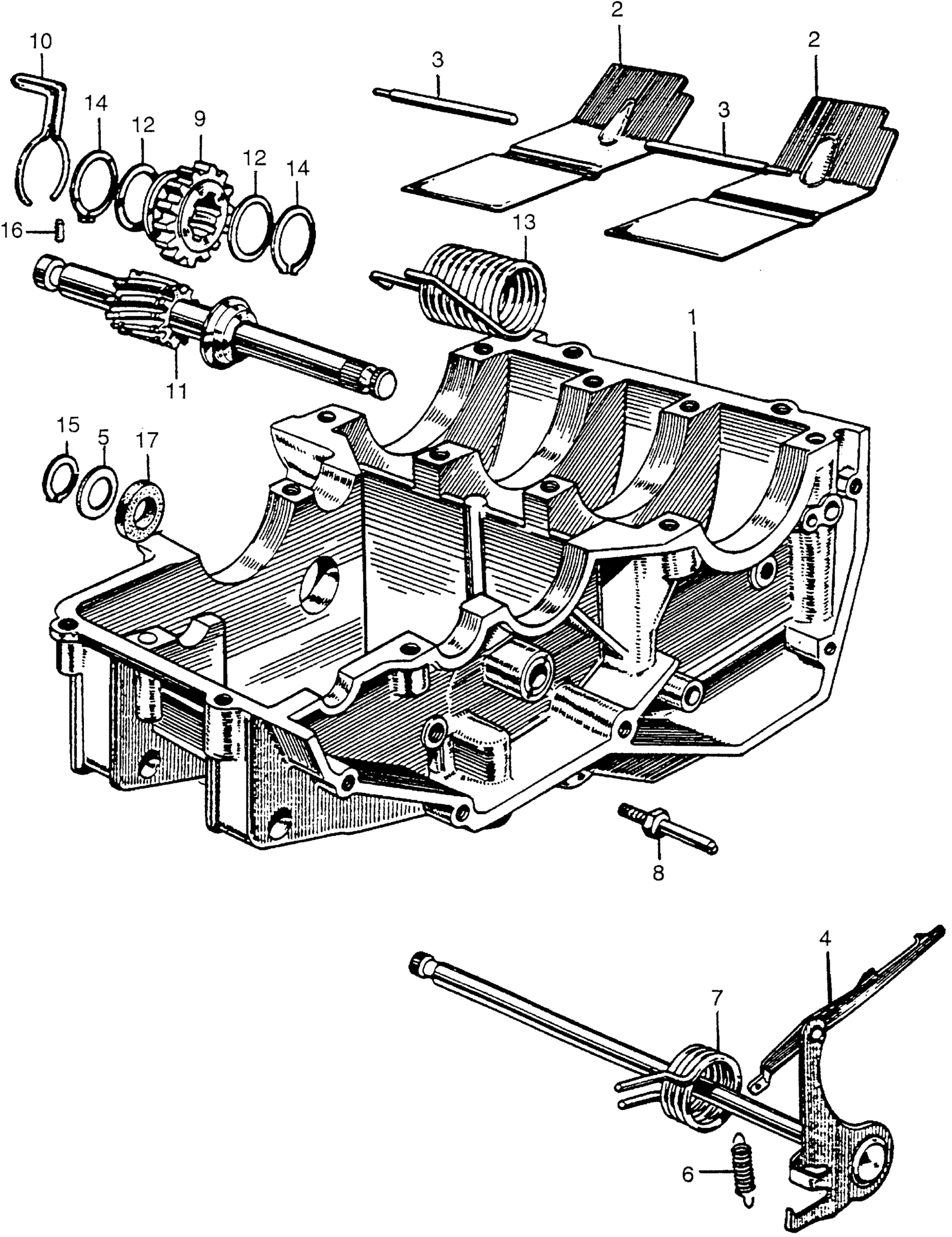

Honda CL175A MOTORCYCLE, JPN, VIN# CL175-1000001 LOWER CRANKCASE + KICK STARTER Diagram

#

Description
Price

1

CRANKCASE (LOWER) | Use from Engine SN 1017933

11200-235-030

Unavailable

1

CRANKCASE (LOWER) | Use up to Engine SN 1017932

11200-235-305

Unavailable

2

SEPARATOR, OIL (NOT AVAILABLE)

11751-216-000

Unavailable

3

BAR, OIL SEPARATOR SETTING (NOT AVAILABLE)

11781-216-000

Unavailable

4

SPINDLE, GEARSHIFT

24610-235-000

Unavailable

5

STOPPER, GEARSHIFT SPINDLE (NOT AVAILABLE)

24621-200-000

Unavailable

6

SPRING, GEARSHIFT ARM

24641-216-000

$2.70

7

SPRING, GEARSHIFT RETURN (NOT AVAILABLE)

24651-235-000

Unavailable

8

PIN, GEARSHIFT RETURN SPRING (NOT AVAILABLE)

24652-200-000

Unavailable

9

PINION, KICK STARTER (NOT AVAILABLE)

28211-235-020

Unavailable

10

SPRING, FRICTION (NOT AVAILABLE)

28239-235-000

Unavailable

11

SPINDLE, KICK STARTER (NOT AVAILABLE)

28250-235-000

Unavailable

12

WASHER, KICK STARTER SPINDLE (NOT AVAILABLE)

28252-235-000

Unavailable

13

SPRING, KICK STARTER (NOT AVAILABLE)

28261-235-000

Unavailable

14

CIRCLIP (OUTER) (25MM)

90602-259-010

$6.16

15

CIRCLIP (12MM) (NOT AVAILABLE)

90603-200-000

Unavailable

16

PIN, KNOCK (4X15) (NOT AVAILABLE)

90701-216-000

Unavailable

17

OIL SEAL (12X25X4.5) This part replaces 91201-283-000.

91202-426-003

$5.57

17

OIL SEAL (12X25X4.5) This part replaces 91201-283-005.

91202-426-003

$5.57

17

OIL SEAL (12X25X4.5) This part replaces 91201-292-003.

91202-426-003

$5.57

17

OIL SEAL (12X25X4.5)

91202-426-003

$5.57
