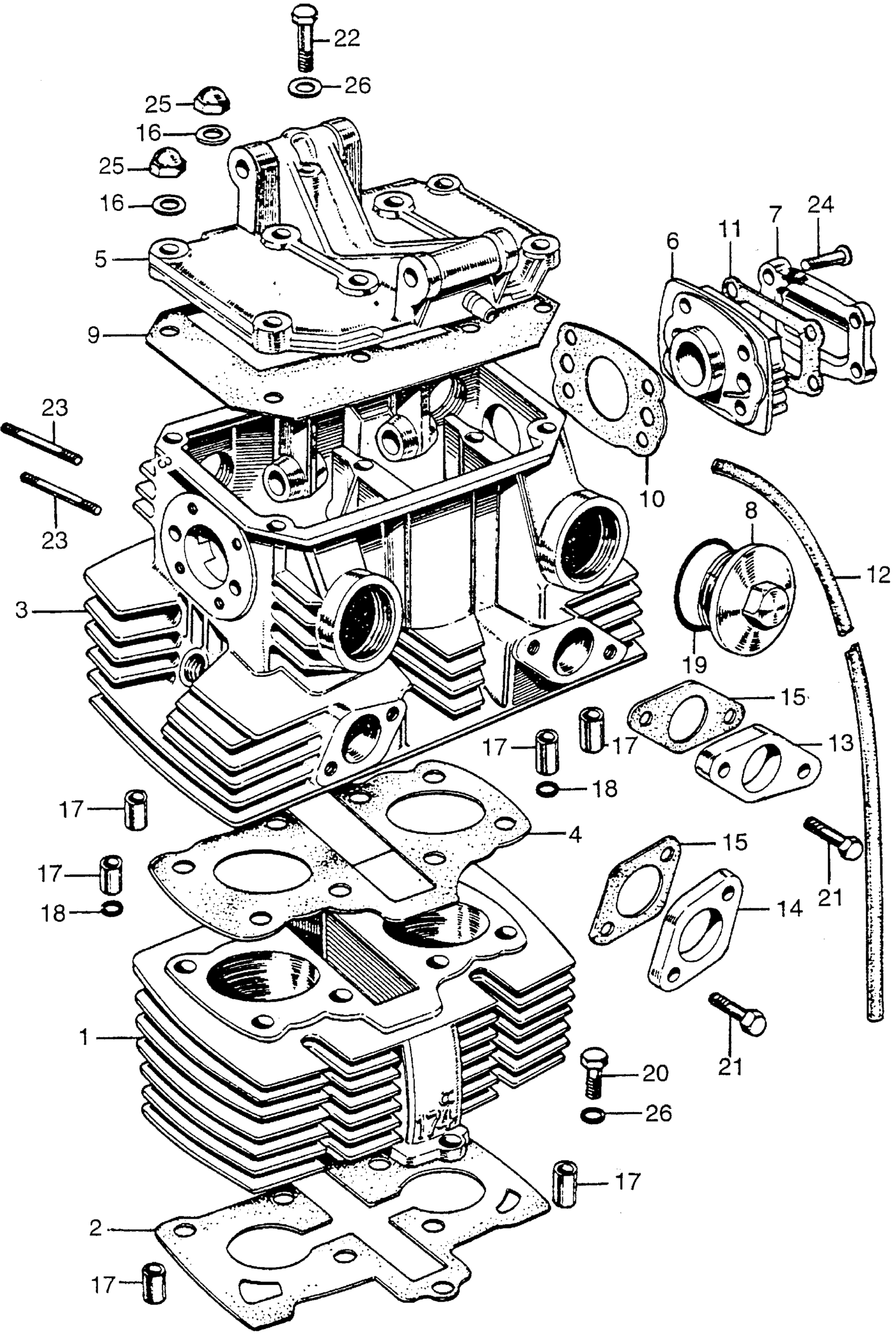

Honda CL175A MOTORCYCLE, JPN, VIN# CL175-1000001 CYLINDER + CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER This part replaces 12100-235-000.

12100-302-000

Unavailable

1

CYLINDER

12100-302-000

Unavailable

2

GASKET, CYLINDER This part replaces 12191-235-010.

12191-235-306

Unavailable

3

CYLINDER HEAD (NOT AVAILABLE) | Use up to Engine SN 1087784

12200-235-040

Unavailable

4

GASKET, CYL HD This part replaces 12251-235-000.

12251-235-405

Unavailable

5

COVER, CYLINDER HEAD (NOT AVAILABLE)

12300-216-000

Unavailable

6

COVER, R. CYLINDER HEAD

12331-235-000

Unavailable

7

CAP, CYLINDER HEAD SIDE (NOT AVAILABLE) | Use up to Engine SN 1009227

12351-235-000

Unavailable

8

CAP, VALVE ADJ. (NOT AVAILABLE) | Use up to Engine SN 1017783

12361-216-000

Unavailable

8

CAP, VALVE ADJ. | Use from Engine SN 1017784

12361-246-000

Unavailable

9

GASKET, CYL HD CVR This part replaces 12391-216-000.

12391-354-306

Unavailable

9

GASKET, CYL HD CVR This part replaces 12391-354-000.

12391-354-306

Unavailable

10

GASKET, R. CYLINDER HEAD COVER This part replaces 12394-216-000.

12394-216-306

Unavailable

10

GASKET, R. CYLINDER HEAD COVER

12394-216-306

Unavailable

11

GASKET | Use up to Engine SN 1009227 This part replaces 12396-235-000.

12396-235-306

Unavailable

12

TUBE, BREATHER (NOT AVAILABLE)

15761-202-000

Unavailable

13

INSULATOR, R. | Use up to Engine SN 1001618 This part replaces 16211-235-000.

16211-235-405

Unavailable

13

INSULATOR, R. | Use up to Engine SN 1001618 This part replaces 16211-236-000.

16211-235-405

Unavailable

14

INSULATOR, CARBURETOR (NOT AVAILABLE)

16213-235-000

Unavailable

14

INSULATOR, CARBURETOR (NOT AVAILABLE) | Use up to Engine SN 1001618 This part replaces 16213-236-000.

16213-235-000

Unavailable

15

GASKET This part replaces 16229-235-000.

16229-235-306

Unavailable

16

WASHER, SEAL (8MM)

90441-286-000

$1.90

17

PIN A, DOWEL (10X14) This part replaces 90703-200-000.

94301-10140

$2.28

17

PIN A, DOWEL (10X14)

94301-10140

$2.28

18

O-RING (10X1.6)

91301-200-000

$3.01

19

O-RING (35.5X3) (NOK) This part replaces 91301-MG2-790.

91301-428-003

$2.21

19

O-RING (35.5X3) (NOK) This part replaces 91301-MG2-791.

91301-428-003

$2.21

19

O-RING (35.5X3) (NOK)

91301-428-003

$2.21

19

O-RING (35.5X3) (NOK) This part replaces 91302-216-000.

91301-428-003

$2.21

19

O-RING (35.5X3) (NOK) This part replaces 91302-500-000.

91301-428-003

$2.21

20

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

20

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

21

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

21

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

22

BOLT, HEX. (6X45) This part replaces 92000-06045.

92101-06045-0A

$1.49

22

BOLT, HEX. (6X45) This part replaces 92000-06045-0A.

92101-06045-0A

$1.49

22

BOLT, HEX. (6X45)

92101-06045-0A

$1.49

23

BOLT, STUD (6X50) | Use from Engine SN 1011560 This part replaces 90063-235-000.

92700-06050-0E

$1.54

23

BOLT, STUD (6X50) | Use from Engine SN 1011560

92700-06050-0E

$1.54

23

BOLT, STUD (6X28) This part replaces 92700-06042.

92900-06028-0B

$1.89

23

BOLT, STUD (6X28)

92900-06028-0B

$1.89

24

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

24

SCREW, PAN (6X20)

93500-06020-0A

$1.49

24

SCREW, PAN (6X32) This part replaces 93500-06032.

93500-06032-0A

$1.49

24

SCREW, PAN (6X32)

93500-06032-0A

$1.49

25

NUT, CAP (8MM) | Use up to Engine SN 1017783 This part replaces 90012-286-000.

94021-08000-0S

$1.55

25

NUT, CAP (8MM) | Use up to Engine SN 1017783 This part replaces 94021-08000.

94021-08000-0S

$1.55

25

NUT, CAP (8MM) | Use up to Engine SN 1017783

94021-08000-0S

$1.55

25

NUT, CAP (8MM) | Use up to Engine SN 1017783 This part replaces 94022-08000-0S.

94021-08000-0S

$1.55

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

26

WASHER, PLAIN (6MM)

94101-06800

$1.49
