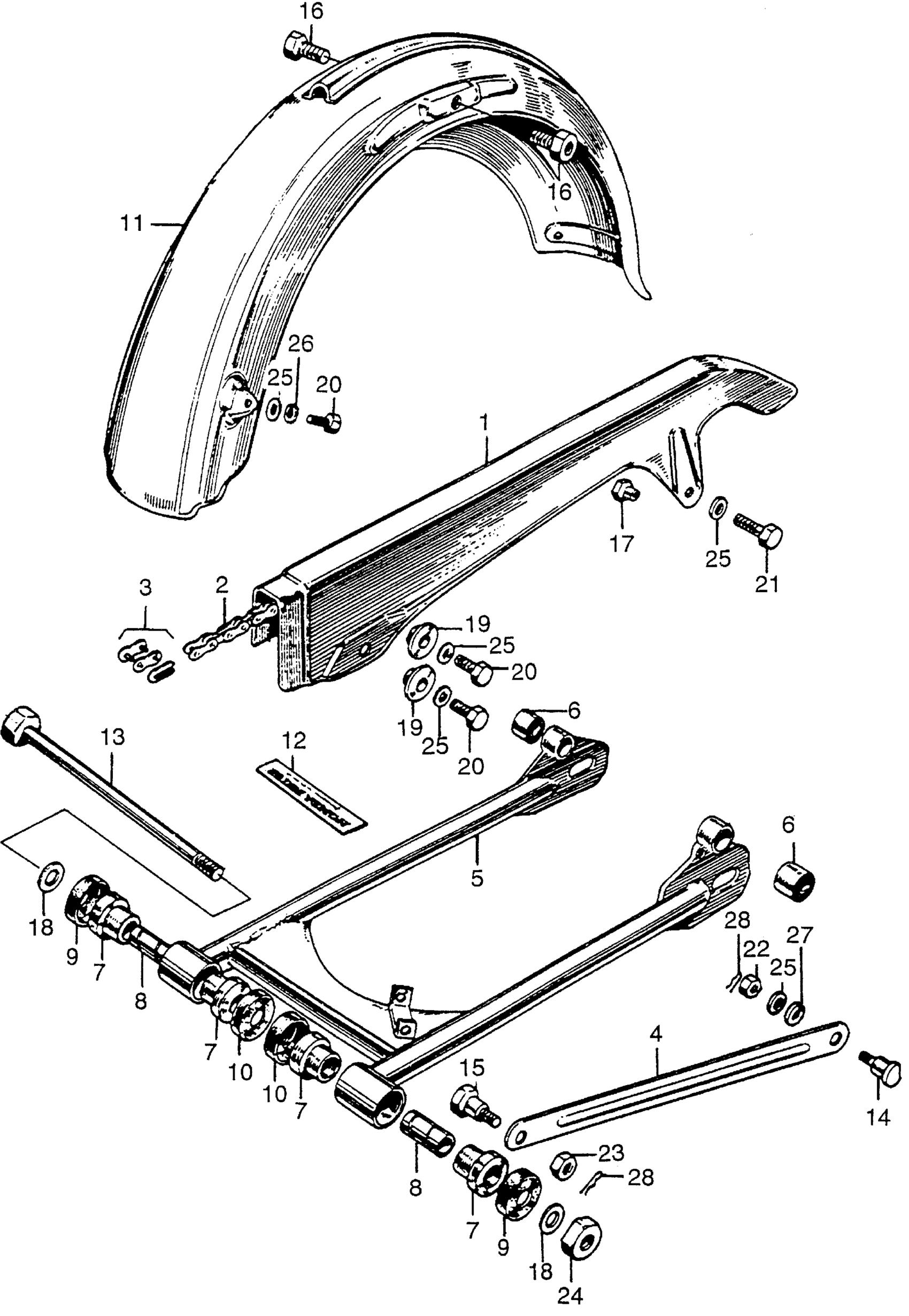

Honda CL175A MOTORCYCLE, JPN, VIN# CL175-1000001 CL175 SWINGARM + REAR FENDER Diagram

#

Description
Price

1

CASE, DRIVE CHAIN *NH1* (BLACK) (NOT AVAILABLE) | Use from Frame SN 1001745

40510-235-000B

Unavailable

1

CASE, DRIVE CHAIN *NH1* (BLACK) (NOT AVAILABLE) | Use up to Frame SN 1001744 This part replaces 40510-240-000B.

40510-240-010B

Unavailable

1

CASE, DRIVE CHAIN *NH1* (BLACK) (NOT AVAILABLE) | Use up to Frame SN 1001744

40510-240-010B

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO)

405W3-KA8-505

Unavailable

2

CHAIN, DRIVE (104L) (DAIDO) This part replaces 40530-217-000.

405W3-KA8-505

Unavailable

3

MASTER LINK

40531-205-013

Unavailable

3

MASTER LINK This part replaces 40531-216-003.

40531-205-013

Unavailable

4

ARM, RR. BRAKE STOPPER

43431-240-000

Unavailable

5

SWINGARM | Use up to Frame SN 1001744

52100-235-000Z

Unavailable

5

SWINGARM | Use from Frame SN 1001745

52100-235-010Z

Unavailable

6

BUSHING, SWINGARM PIVOT (NOT AVAILABLE)

52108-240-300

Unavailable

7

BUSH, RR. SWINGARM RUBBER (LOWER) (NOT AVAILABLE)

52109-222-810

Unavailable

8

COLLAR, RR. SWINGARM (NOT AVAILABLE)

52121-354-000

Unavailable

8

COLLAR, RR. SWINGARM (NOT AVAILABLE) This part replaces 52141-240-000.

52121-354-000

Unavailable

9

CAP, DUST SEAL (NOK) This part replaces 52144-268-000.

52144-356-005

$17.31

9

CAP, DUST SEAL (NOK) This part replaces 52144-329-000.

52144-356-005

$17.31

9

CAP, DUST SEAL (NOK)

52144-356-005

$17.31

10

RUBBER, SWINGARM DUST SEAL CAP This part replaces 52145-268-000.

52145-329-000

$7.36

10

RUBBER, SWINGARM DUST SEAL CAP

52145-329-000

$7.36

11

FENDER, RR. *MRCR2* (CHROME PLATING)

80100-236-010XW

Unavailable

12

PLATE, NAME

87125-041-680

$4.92

12

LABEL, MUFFLER CAUTION | Use from Frame SN 1012668

87504-028-670

$2.92

13

BOLT, SWINGARM PIVOT (NOT AVAILABLE)

90121-240-000

Unavailable

14

BOLT, RR. BRAKE PANEL STOPPER (NOT AVAILABLE)

90127-240-010

Unavailable

15

BOLT, RR. BRAKE STOPPER ARM (NOT AVAILABLE)

90133-240-000

Unavailable

16

BOLT, RR. FENDER SETTING (NOT AVAILABLE) | Use up to Frame SN 1017755

90162-240-000

Unavailable

16

BOLT, RR. FENDER SETTING (NOT AVAILABLE) | Use from Frame SN 1017756

90162-246-000

Unavailable

17

NUT, CHAIN CASE SETTING (NOT AVAILABLE) | Use up to Frame SN 1001744

90522-240-000

Unavailable

18

WASHER (14X26) This part replaces 90526-216-000.

90527-634-670

Unavailable

18

WASHER (14X26)

90527-634-670

Unavailable

19

WASHER B, CHAIN CASE SETTING | Use up to Frame SN 1011744

90554-240-000

$1.73

20

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

20

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

21

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

21

BOLT, HEX. (6X20)

92101-06020-0A

$1.49

22

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

22

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

23

NUT, HEX. (8MM) | Use up to Frame SN 1017755 This part replaces 94001-08000.

94030-08000

$1.49

23

NUT, HEX. (8MM) | Use from Frame SN 1017756

94001-08000-0S

$1.49

23

NUT, HEX. (8MM) | Use up to Frame SN 1017755

94030-08000

$1.49

23

NUT, HEX. (8MM) | Use up to Frame SN 1017755 This part replaces 94030-08200.

94030-08000

$1.49

24

NUT, HEX. (14MM) This part replaces 94001-14000.

94001-14000-0S

$1.98

24

NUT, HEX. (14MM)

94001-14000-0S

$1.98

25

WASHER, PLAIN (6MM) | Use up to Frame SN 1021537 This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) | Use from Frame SN 1021538 This part replaces 94101-06000.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) | Use up to Frame SN 1021537 This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) | Use from Frame SN 1021538 This part replaces 94101-06080.

94101-06800

$1.49

25

WASHER, PLAIN (6MM) | Use up to Frame SN 1021537

94101-06800

$1.49

25

WASHER, PLAIN (6MM) | Use from Frame SN 1021538

94101-06800

$1.49

26

WASHER, SPRING (6MM)

94111-06000

$1.49

27

RUBBER, STOPPER ARM CUSHION (NOT AVAILABLE) | Use from Frame SN 1021538

43434-240-000

Unavailable

27

WASHER, SPRING (8MM) | Use up to Frame SN 1021537

94111-08000

$1.49

28

PIN, LOCK (6MM)

94251-06000

$1.49
