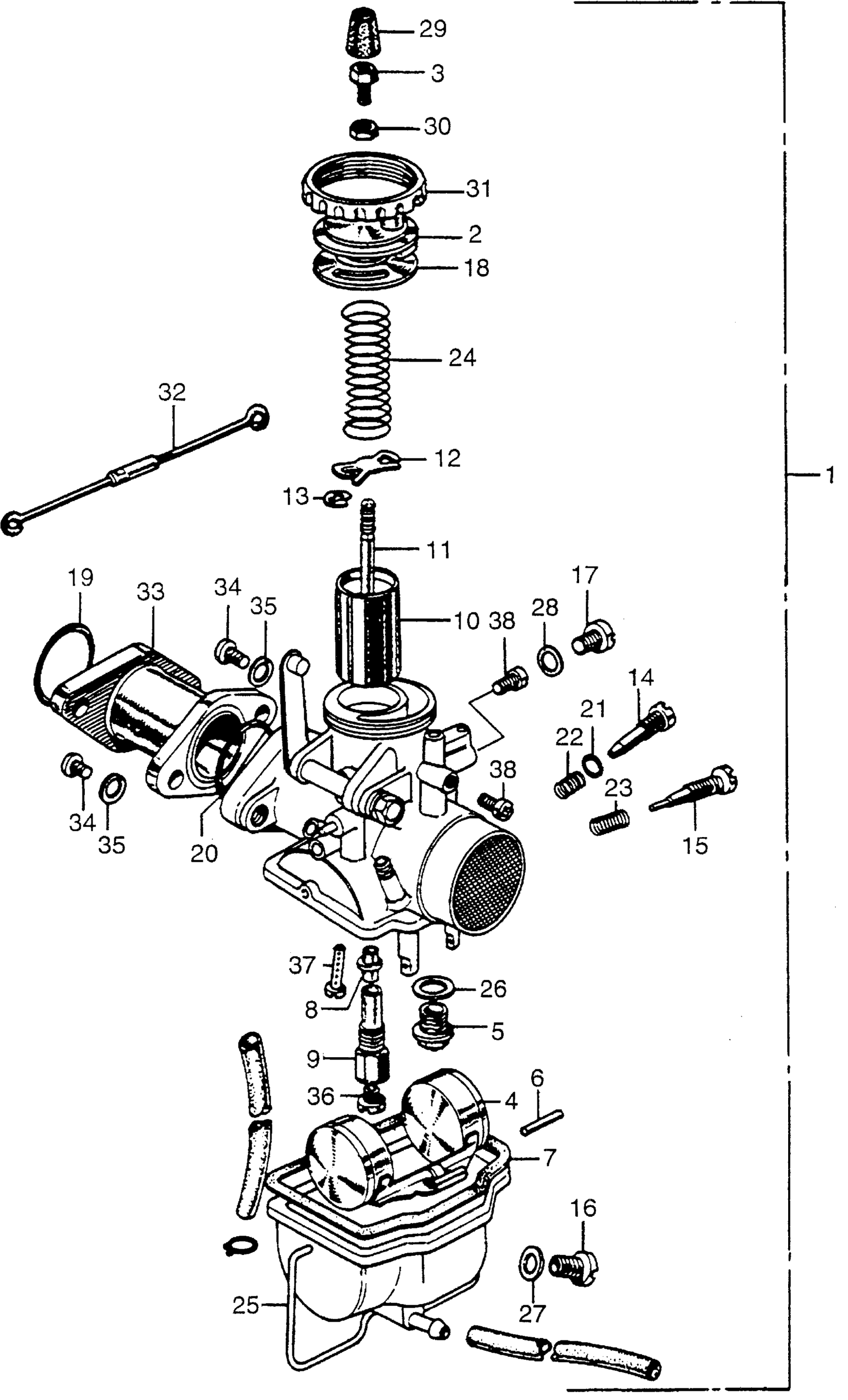

Honda CL175A MOTORCYCLE, JPN, VIN# CL175-1000001 CL175 RIGHT CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY. | Use up to Engine SN 1001619

16100-236-000

Unavailable

1

CARBURETOR ASSY. (NOT AVAILABLE) | Use from Engine SN 1001620

16100-236-024

Unavailable

2

TOP, R. CARBURETOR (NOT AVAILABLE)

16014-235-004

Unavailable

2

TOP, R. CARBURETOR (NOT AVAILABLE) This part replaces 16111-217-004.

16014-235-004

Unavailable

2

TOP, R. CARBURETOR (NOT AVAILABLE) | Use up to Engine SN 1001619 This part replaces 16111-268-004.

16014-235-004

Unavailable

3

ADJUSTER, CABLE (NOT AVAILABLE) | Use from Engine SN 1001620

16118-217-004

Unavailable

3

ADJUSTER, CABLE (NOT AVAILABLE) | Use up to Engine SN 1001619

16118-268-004

Unavailable

4

FLOAT SET | Use up to Engine SN 1001619

16013-286-014

$32.28

4

FLOAT SET (NOT AVAILABLE) | Use from Engine SN 1001620

16122-217-004

Unavailable

4

FLOAT SET | Use up to Engine SN 1001619 This part replaces 16122-259-014.

16013-286-014

$32.28

5

VALVE SET, FLOAT | Use up to Engine SN 1001619

16011-375-004

$28.96

5

VALVE SET, FLOAT (NOT AVAILABLE) | Use from Engine SN 1001620

16124-230-004

Unavailable

5

VALVE SET, FLOAT | Use up to Engine SN 1001619 This part replaces 16125-259-004.

16011-375-004

$28.96

6

PIN, FLOAT ARM (NOT AVAILABLE) | Use from Engine SN 1001620

16126-011-004

Unavailable

6

PIN, FLOAT ARM (NOT AVAILABLE) | Use up to Engine SN 1001619

16126-259-004

Unavailable

7

WASHER, FLOAT CHAMBER | Use up to Engine SN 1001619

16129-268-004

Unavailable

7

WASHER, FLOAT CHAMBER | Use from Engine SN 1001620

16172-030-004

Unavailable

7

WASHER, FLOAT CHAMBER | Use from Engine SN 1001620 This part replaces 16172-202-004.

16172-030-004

Unavailable

8

NEEDLE, JET (NOT AVAILABLE)

16133-235-004

Unavailable

9

HOLDER, NEEDLE JET (NOT AVAILABLE)

16139-217-004

Unavailable

9

HOLDER, NEEDLE JET (NOT AVAILABLE) | Use up to Engine SN 1001619 This part replaces 16139-223-004.

16139-217-004

Unavailable

9

HOLDER, NEEDLE JET (NOT AVAILABLE) | Use up to Engine SN 1001619 This part replaces 16139-235-004.

16139-217-004

Unavailable

9

HOLDER, NEEDLE JET (NOT AVAILABLE) | Use from Engine SN 1017784

16139-235-014

Unavailable

10

VALVE, R. THROTTLE (NOT AVAILABLE) | Use from Engine SN 1001620

16141-235-004

Unavailable

10

VALVE, R. THROTTLE (NOT AVAILABLE) | Use up to Engine SN 1001619

16141-268-004

$81.08

11

NEEDLE, JET (NOT AVAILABLE) | Use up to Engine SN 1001619 This part replaces 16151-235-004.

16151-235-014

Unavailable

11

NEEDLE, JET (NOT AVAILABLE)

16151-235-014

Unavailable

12

PLATE, NEEDLE CLIP | Use from Engine SN 1001620

16156-056-004

Unavailable

12

PLATE, NEEDLE CLIP | Use from Engine SN 1001620 This part replaces 16156-235-004.

16156-056-004

Unavailable

12

PLATE, NEEDLE CLIP (NOT AVAILABLE) | Use up to Engine SN 1001619

16156-259-004

Unavailable

13

CLIP, BAR

16157-259-004

$5.36

14

SCREW, AIR (NOT AVAILABLE)

16162-259-004

Unavailable

15

SCREW, THROTTLE STOP (NOT AVAILABLE) | Use up to Engine SN 1001619 This part replaces 16163-011-004.

16163-217-004

Unavailable

15

SCREW, THROTTLE STOP

16163-217-004

Unavailable

16

SCREW, DRAIN (NOT AVAILABLE)

16164-202-004

Unavailable

17

SCREW, PLUG (NOT AVAILABLE) | Use from Engine SN 1001620

16166-235-004

Unavailable

18

WASHER, TOP (NOT AVAILABLE) | Use from Engine SN 1001620

16171-217-004

Unavailable

18

WASHER, TOP (NOT AVAILABLE) | Use up to Engine SN 1001619

16171-250-004

Unavailable

19

O-RING (25X2.4) (NOT AVAILABLE) | Use from Engine SN 1001620

16173-235-004

Unavailable

19

O-RING (27X2.4) | Use up to Engine SN 1001619

16173-253-004

Unavailable

20

O-RING (24X2.4) | Use from Engine SN 1001620

16173-250-004

Unavailable

21

O-RING (2.8MM) (NOT AVAILABLE)

16175-260-004

Unavailable

22

SPRING, AIR SCREW (NOT AVAILABLE)

16181-202-004

$3.70

23

SPRING, THROTTLE STOP (NOT AVAILABLE)

16182-011-004

Unavailable

24

SPRING, THROTTLE (NOT AVAILABLE) | Use from Engine SN 1001620

16185-217-004

Unavailable

24

SPRING, THROTTLE (NOT AVAILABLE) | Use up to Engine SN 1001619

16185-268-004

Unavailable

25

CLIP, FLOAT CHAMBER SET (NOT AVAILABLE) | Use from Engine SN 1001620

16187-217-004

Unavailable

25

CLIP, FLOAT CHAMBER SET (NOT AVAILABLE) | Use up to Engine SN 1001619

16187-268-004

Unavailable

26

WASHER, FIBER (9MM) (NOT AVAILABLE)

16188-259-004

Unavailable

27

WASHER, FIBER

16189-056-004

Unavailable

28

WASHER, FIBER (NOT AVAILABLE) | Use from Engine SN 1001620

16189-235-004

Unavailable

29

CAP, CABLE (NOT AVAILABLE)

16194-235-004

Unavailable

30

NUT, CABLE ADJUSTING (NOT AVAILABLE)

16198-268-004

Unavailable

31

CAP, TOP (NOT AVAILABLE) | Use from Engine SN 1001620

16193-217-004

Unavailable

31

CAP, TOP (NOT AVAILABLE) | Use from Engine SN 1001620 This part replaces 16199-217-004.

16193-217-004

Unavailable

31

CAP, CABLE (NOT AVAILABLE) | Use up to Engine SN 1001619

16199-259-004

Unavailable

32

ROD ASSY., CHOKE

16251-235-000

Unavailable

33

ADAPTER, R. FLANGE (NOT AVAILABLE) | Use from Engine SN 1001620

16273-235-004

Unavailable

34

SCREW, PAN (6X20) This part replaces 93500-06020.

93500-06020-0A

$1.49

34

SCREW, PAN (6X20)

93500-06020-0A

$1.49

35

WASHER, SPRING (6MM)

94111-06000

$1.49

36

JET, MAIN (#80) (NOT AVAILABLE) | Use up to Engine SN 1017783 This part replaces 99102-08004.

99114-051-0800

Unavailable

36

JET, MAIN (#82) | Use up to Engine SN 1017783 This part replaces 99102-08204.

99114-051-0820

Unavailable

36

JET, MAIN (#85) (NOT AVAILABLE) | Use up to Engine SN 1017783 This part replaces 99102-08504.

99114-051-0850

Unavailable

36

JET,MAIN #88 | Use up to Engine SN 1017783 This part replaces 99102-08804.

99114-051-0880

Unavailable

36

JET, MAIN (#90) (NOT AVAILABLE) | Use up to Engine SN 1017783 This part replaces 99102-09004.

99114-051-0900

Unavailable

36

JET, MAIN (#92) (NOT AVAILABLE) | Use up to Engine SN 1017783 This part replaces 99102-09204.

99114-051-0920

Unavailable

36

JET, MAIN (#95) | Use up to Engine SN 1017783 This part replaces 99102-09504.

99114-051-0950

Unavailable

36

JET, MAIN (#98) (NOT AVAILABLE) | Use up to Engine SN 1017783

99102-09804

Unavailable

36

JET, MAIN (#100) | Use up to Engine SN 1017783

99102-10004

Unavailable

36

JET, MAIN (#105) (NOT AVAILABLE) | Use up to Engine SN 1017783

99102-10504

Unavailable

36

JET, MAIN (#110) (NOT AVAILABLE) | Use up to Engine SN 1017783

99102-11004

Unavailable

36

JET, MAIN (#80) (NOT AVAILABLE) | Use up to Engine SN 1017783

99114-051-0800

Unavailable

36

JET, MAIN (#82) | Use up to Engine SN 1017783

99114-051-0820

Unavailable

36

JET, MAIN (#85) (NOT AVAILABLE) | Use up to Engine SN 1017783

99114-051-0850

Unavailable

36

JET, MAIN (#90) (NOT AVAILABLE) | Use up to Engine SN 1017783

99114-051-0900

Unavailable

36

JET, MAIN (#92) (NOT AVAILABLE) | Use up to Engine SN 1017783

99114-051-0920

Unavailable

36

JET, MAIN (#92) (NOT AVAILABLE) | Use up to Engine SN 1017783 This part replaces 99114-09204.

99114-051-0920

Unavailable

36

JET, MAIN (#80) (NOT AVAILABLE) | Use from Engine SN 1017784

99114-246-0800

Unavailable

36

JET, MAIN (#82) | Use from Engine SN 1017784

99114-246-0820

Unavailable

36

JET, MAIN (#85) | Use from Engine SN 1017784

99114-246-0850

Unavailable

36

JET, MAIN (88) (NOT AVAILABLE) | Use from Engine SN 1017784

99114-246-0880

Unavailable

36

JET, MAIN (#90) (NOT AVAILABLE) | Use from Engine SN 1017784

99114-246-0900

Unavailable

36

JET, MAIN (#92) | Use from Engine SN 1017784

99114-246-0920

Unavailable

36

JET, MAIN (#95) | Use from Engine SN 1017784

99114-246-0950

$8.10

36

JET, MAIN (#98) | Use from Engine SN 1017784

99114-246-0980

Unavailable

36

JET, MAIN (#100) | Use from Engine SN 1017784

99114-246-1000

Unavailable

36

JET, MAIN (#105) | Use from Engine SN 1017784

99114-246-1050

Unavailable

36

JET, MAIN (#110) | Use from Engine SN 1017784

99114-246-1100

Unavailable

37

JET, SLOW (#35) (NOT AVAILABLE) | Use from Engine SN 1001620

99124-235-03501

Unavailable

37

JET, SLOW (#38) (NOT AVAILABLE) This part replaces 99124-235-0380.

99124-235-03801

Unavailable

37

JET, SLOW (#38) (NOT AVAILABLE) | Use up to Engine SN 1001619

99124-235-03801

Unavailable

37

JET, SLOW (#40) (NOT AVAILABLE) | Use up to Engine SN 1001619 This part replaces 99124-235-0400.

99124-235-04001

Unavailable

37

JET, SLOW (#40) (NOT AVAILABLE)

99124-235-04001

Unavailable

37

JET, SLOW (#42) (NOT AVAILABLE) | Use up to Engine SN 1001619

99124-235-0420

Unavailable

38

JET, POWER (#150) (NOT AVAILABLE) | Use from Engine SN 1001620

99144-235-1500

Unavailable

38

JET, POWER (#155) (NOT AVAILABLE) | Use from Engine SN 1001620

99144-235-1550

Unavailable

38

JET, POWER (#160) (NOT AVAILABLE) | Use from Engine SN 1001620

99144-235-1600

Unavailable

38

JET, POWER (#165) | Use from Engine SN 1001620

99144-235-1650

Unavailable

38

JET, POWER (#170) (NOT AVAILABLE) | Use from Engine SN 1001620

99144-235-1700

Unavailable
