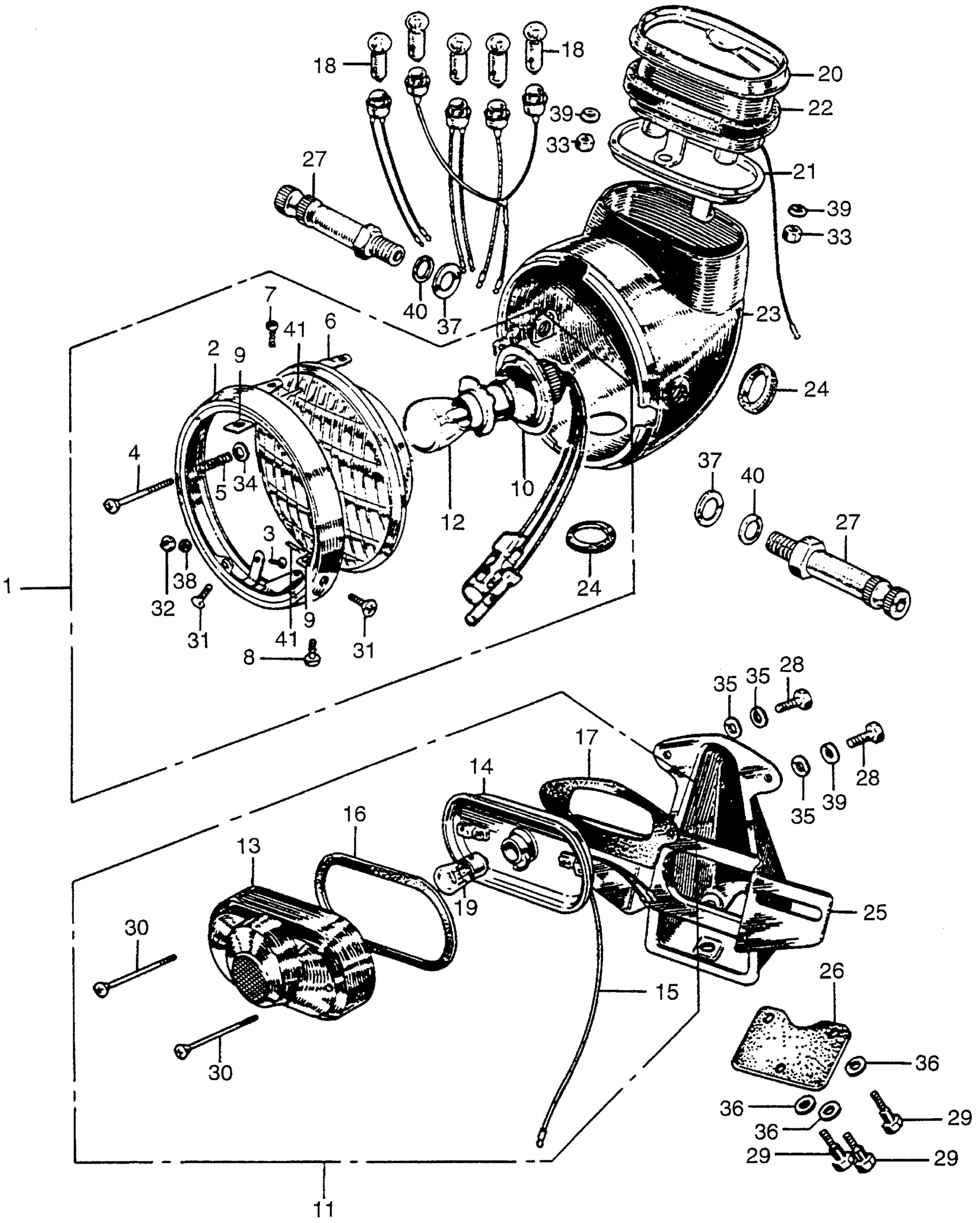

Honda CL175A MOTORCYCLE, JPN, VIN# CL175-1000001 CL175 HEADLIGHT + TAILLIGHT Diagram

GASKET B, TAILLIGHT BASE | Use from Frame SN 1017958

33719-077-671

$1.59

HEADLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 1020498

33100-286-672

Unavailable

RIM, HEADLIGHT

33101-286-670

Unavailable

SCREW (3MM) (NOT AVAILABLE) | Use up to Frame SN 1001616 This part replaces 33102-200-000.

33102-200-003

Unavailable

SCREW (3MM) (NOT AVAILABLE) | Use up to Frame SN 1001616

33102-200-003

Unavailable

SCREW (3MM) | Use from Frame SN 1001617

33102-236-303

Unavailable

SCREW, HEADLIGHT BEAM ADJ. (STANLEY) (NOT AVAILABLE)

33103-292-003

$4.66

SPRING, HEADLIGHT BEAM ADJUSTING

33107-200-023

$3.01

NUT, HEADLIGHT BEAM ADJ.

33117-001-023

$2.39

NUT, HEADLIGHT BEAM ADJ. This part replaces 33117-292-003.

33117-001-023

$2.39

LENS, HEADLIGHT (NOT AVAILABLE)

33120-235-672

Unavailable

SCREW, UNIT HOLDER

33125-292-670

Unavailable

NUT, UNIT HOLDER | Use up to Frame SN 1017755

33128-200-033

Unavailable

SOCKET, HEADLIGHT (NOT AVAILABLE) | Use from Frame SN 1017756

33130-286-670

Unavailable

TAILLIGHT ASSY.

33700-235-672

Unavailable

TAILLIGHT ASSY. (NOT AVAILABLE) | Use from Frame SN 1017958

33700-235-673

Unavailable

BULB, HEADLIGHT (12V35/25W) (STANLEY) | Use from Frame SN 1001617

34901-292-670

Unavailable

LENS, TAILLIGHT (NOT AVAILABLE)

33701-041-671

Unavailable

LENS, TAILLIGHT | Use from Frame SN 1017958

33702-077-671

$36.90

BASE, TAILLIGHT (STANLEY) (NOT AVAILABLE) | Use from Frame SN 1017756

33702-292-003

Unavailable

BASE, TAILLIGHT | Use from Frame SN 1017958

33703-077-671

Unavailable

WIRE, TAILLIGHT This part replaces 33707-041-000.

33708-077-671

Unavailable

WIRE, TAILLIGHT This part replaces 33707-041-672.

33708-077-671

Unavailable

WIRE, TAILLIGHT This part replaces 33707-237-670.

33708-077-671

Unavailable

WIRE, TAILLIGHT This part replaces 33707-243-670.

33708-077-671

Unavailable

WIRE, TAILLIGHT | Use from Frame SN 1017958 This part replaces 33707-243-670.

33708-077-671

Unavailable

WIRE, TAILLIGHT This part replaces 33708-041-670.

33708-077-671

Unavailable

WIRE, TAILLIGHT

33708-077-671

Unavailable

WIRE, TAILLIGHT | Use from Frame SN 1017958

33708-077-671

Unavailable

CABLE, TAILLIGHT GROUND (NOT AVAILABLE) | Use from Frame SN 1017958 This part replaces 33708-243-670.

33708-292-670

Unavailable

CABLE, TAILLIGHT GROUND (NOT AVAILABLE) | Use from Frame SN 1017958

33708-292-670

Unavailable

GASKET, TAILLIGHT LENS (NOT AVAILABLE)

33709-041-000

Unavailable

GASKET, TAILLIGHT | Use from Frame SN 1017958

33709-077-671

$3.41

GASKET, TAILLIGHT BASE (NOT AVAILABLE)

33719-041-300

Unavailable

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.18

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 33551-568-610.

34906-313-671

$6.67

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34901-504-003.

34906-313-671

$6.67

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY) This part replaces 34906-268-810.

34906-313-671

$6.67

BULB, STOP & TAILLIGHT (12V23/8W) (STANLEY)

34906-313-671

$6.67

SPEEDOMETER

37200-236-672

Unavailable

FRAME, SPEEDOMETER (NOT AVAILABLE)

37241-216-000

Unavailable

GASKET, SPEEDOMETER (NOT AVAILABLE) This part replaces 37242-222-000.

37242-283-000

Unavailable

GASKET, SPEEDOMETER (NOT AVAILABLE)

37242-283-000

Unavailable

CASE, HEADLIGHT *NH1* (BLACK) (NOT AVAILABLE)

61301-235-672B

Unavailable

GROMMET A, HEADLIGHT CASE

61302-268-020

Unavailable

SEAT, NUMBER PLATE BRACKET (NOT AVAILABLE) | Use from Frame SN 1017957

84701-216-010Z

Unavailable

BRACKET, NUMBER PLATE (NOT AVAILABLE) | Use from Frame SN 1017958

84701-235-670Z

Unavailable

SEAT, NUMBER PLATE BRACKET (NOT AVAILABLE)

84702-235-000

Unavailable

BOLT, LIGHT CASE SETTING

90154-268-670

$30.10

BOLT, HEX. (5X12) | Use up to Frame SN 1017755 This part replaces 92000-05012.

92101-05012-0G

$1.49

BOLT, HEX. (5X12) This part replaces 92000-05012-0A.

92101-05012-0G

$1.49

BOLT, HEX. (5X20) | Use from Frame SN 1017958 This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

BOLT, HEX. (5X12) This part replaces 92101-05012-0A.

92101-05012-0G

$1.49

BOLT, HEX. (5X12)

92101-05012-0G

$1.49

BOLT, HEX. (5X20) | Use from Frame SN 1017958

92101-05020-0A

$1.49

BOLT, HEX. (5X20) | Use from Frame SN 1017958 This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

BOLT, HEX. (5X12) | Use up to Frame SN 1017755 This part replaces 93300-05012-1H.

92101-05012-0G

$1.49

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

SCREW, PAN (4X45)

93500-04045-0B

Unavailable

SCREW, PAN (4X45) | Use up to Frame SN 1017755 This part replaces 93500-04045-02.

93500-04045-0B

Unavailable

SCREW, OVAL (5X12)

93700-05012-0B

$1.49

SCREW, OVAL (5X12) | Use up to Frame SN 1017755 This part replaces 93700-05012-02.

93700-05012-0B

$1.49

NUT, HEX. (3MM) (SOURCE: VINTAGE PARTS INC.) | Use up to Frame SN 1017755

94001-03000

Unavailable

NUT, HEX. (3MM)

94001-03000-0S

$1.49

NUT, HEX. (5MM) | Use up to Frame SN 1017755 This part replaces 94001-05000.

94001-05000-0S

$2.74

NUT, HEX. (5MM)

94001-05000-0S

$2.74

WASHER, PLAIN (4MM)

94101-04000

$1.49

WASHER, PLAIN (5MM)

94101-05000

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM)

94101-06800

$1.49

WASHER, PLAIN (10MM)

94101-10200

$1.49

WASHER, SPRING (3MM)

94111-03000

$1.49

WASHER, SPRING (5MM)

94111-05000

$1.49

WASHER, SPRING (8MM)

94111-10000

$1.49

PIN, LOCK (5MM)

94251-05000

$1.49
