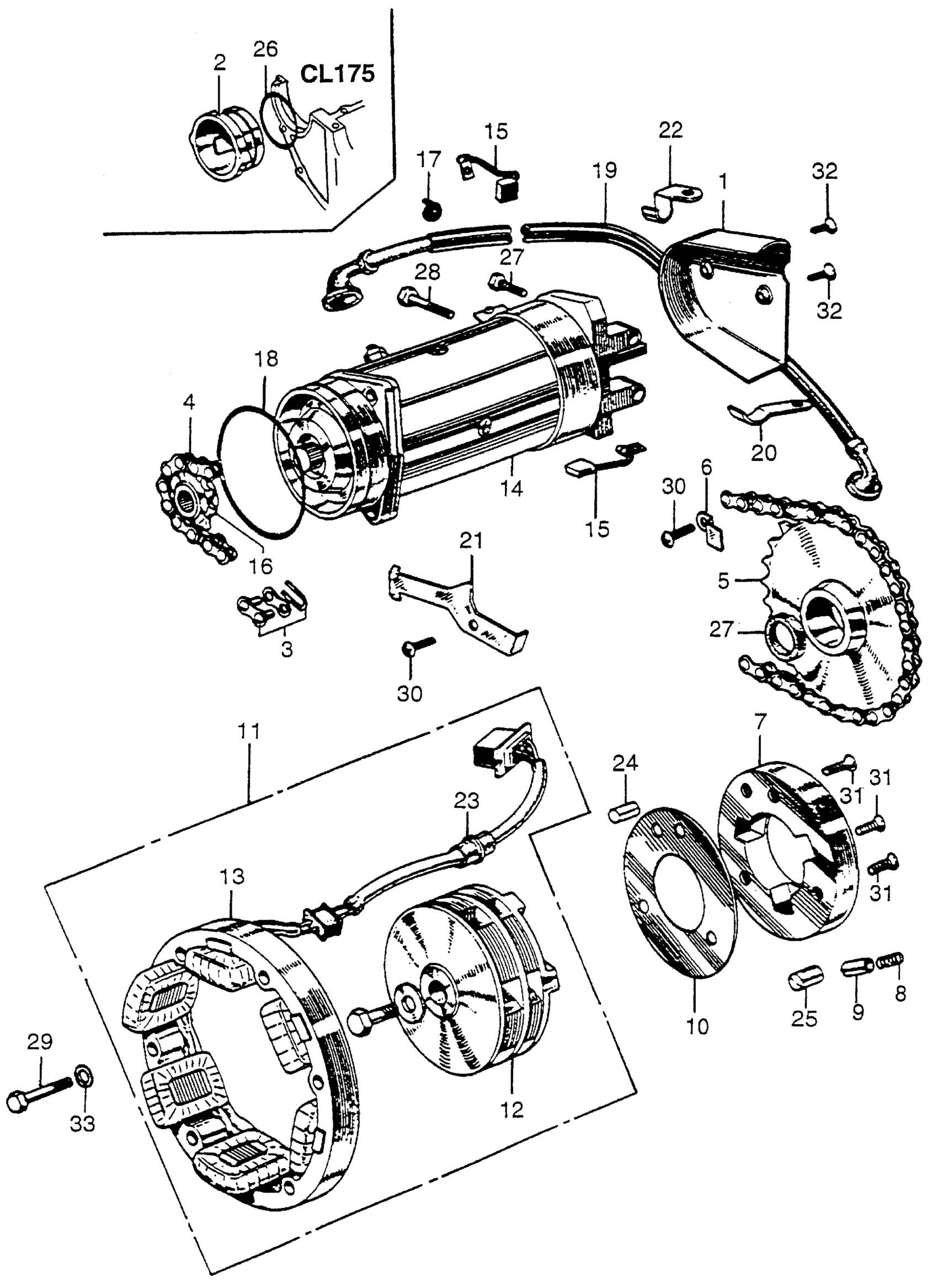

Honda CL175A MOTORCYCLE, JPN, VIN# CL175-1000001 ALTERNATOR + STARTER MOTOR Diagram

#

Description

Price

2

PLUG, SEALING (67MM) (NOT AVAILABLE) | Use from Engine SN 1002725

11921-223-010

Unavailable

8

SPRING, STARTER CLUTCH ROLLER

28125-253-020

$5.57

11

ALTERNATOR ASSY. (NOT AVAILABLE)

31100-236-005

Unavailable

12

ROTOR

31101-236-005

Unavailable

13

STATOR ASSY.

31102-235-005

Unavailable

21

CLAMP B, STARTER MOTOR CABLE (NOT AVAILABLE)

32912-216-000

Unavailable

23

GROMMET, WIRE (NOT AVAILABLE)

32971-205-000

Unavailable

26

O-RING (60X2) (NOT AVAILABLE) | Use from Engine SN 1002725

91201-223-000

Unavailable

29

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

29

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

30

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$1.49

30

SCREW, PAN (6X12)

93500-06012-0A

$1.49

30

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$1.49

33

WASHER, SPRING (6MM)

94111-06000

$1.49
