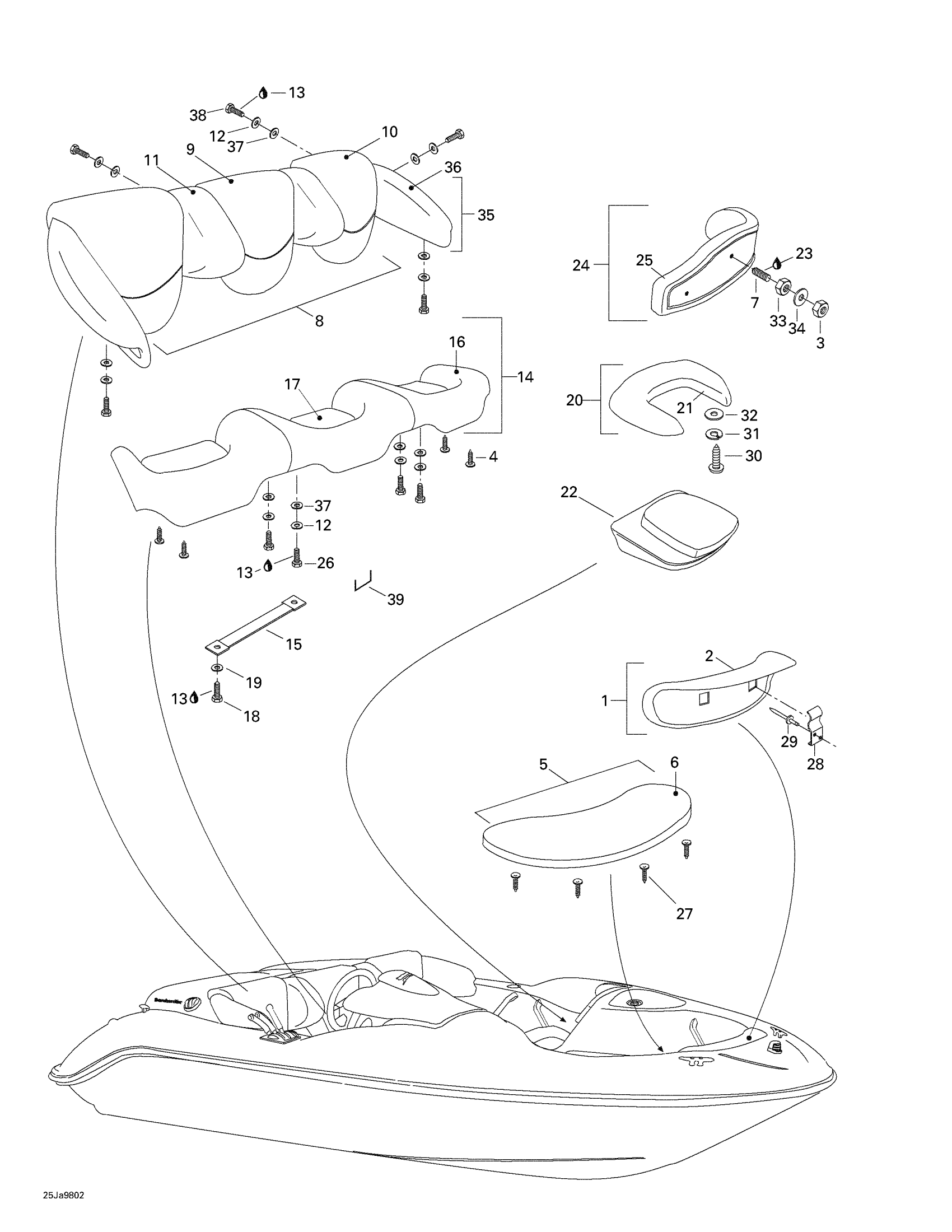

Sea-doo Challenger, 5612, 1998 Seats Diagram

#

Description
Price

1

Front Backrest Ass'y | Includes 1 - 2.

204610231

Unavailable

2

Front Backrest Cover

204610232

Unavailable

3

Hex. Elastic Nut M5 | X

232551600

$1.15

4

Black Dart

293730014

$0.99

5

Front Seat Ass'y | Includes 5 - 6.

204610289

Unavailable

6

Front Seat Cover

204610321

Unavailable

7

Set Screw M5 x 30

216553060

Unavailable

8

Rear Backrest Ass'y | Includes 8 - 11.

204610290

Unavailable

9

Backrest Cover (Center)

204610309

Unavailable

10

Backrest Cover R.H

204610331

Unavailable

11

Backrest Cover (Emerald Green)

204610234

Unavailable

12

Flat Washer M6, Stainless

234062600

$0.77

13

Loctite 243, 10 ml

293800060

$21.49

14

Rear Seat Ass'y | Includes 14 - 19.

204610291

Unavailable

15

Strap (Emerald Green)

204610285

Unavailable

16

Rear Seat Cover (Emerald Green)

204610237

Unavailable

17

Rear Seat Pillow Cover

204610307

Unavailable

18

Hex. Screw M6 X 16

207161660

$1.59

19

Flat Washer M6, Stainless

234062600

$0.77

20

Keeper Seat Ring Ass'y | Includes 20 - 21.

204610238

Unavailable

21

Keeper Seat Ring Cover

204610239

Unavailable

22

Keeper Seat Ass'y | Includes 22 - 24.

204610292

Unavailable

23

Loctite 271, 10 ml

293800005

$26.99

24

Keeper Seat Backrest Ass'y | Includes 24 - 25.

204610240

Unavailable

25

Front Backrest Cover

204610232

Unavailable

26

Hex. Screw M6 X 45

207164560

$1.89

27

Black, Dart

293730006

$0.99

28

SEAT SUPPORT - Call your local BRP dealership

269000388

Unavailable

29

Pop Rivet 3/16"

293150043

$2.09

30

Self Tapping Screw

216663860

Unavailable

31

Lock Washer Helical M6

234161601

$1.15

32

Stainless Flat Washer M6

234061600

$0.33

33

Hex. Nut M5

232051600

$1.15

34

Flat Washer 5 mm, Stainless

234052600

$0.77

35

LH Armrest Ass'y | Includes 35 - 36.

204610294

Unavailable

RH Armrest Ass'y

204610295

Unavailable

36

LH Armrest Cover

204610332

Unavailable

RH Armrest Cover

204610333

Unavailable

37

Flat Washer 8 mm, Stainless

234082600

$2.43

38

Hex. Screw M6 X 30

207163060

$1.48

39

Staple

293730005

Unavailable
