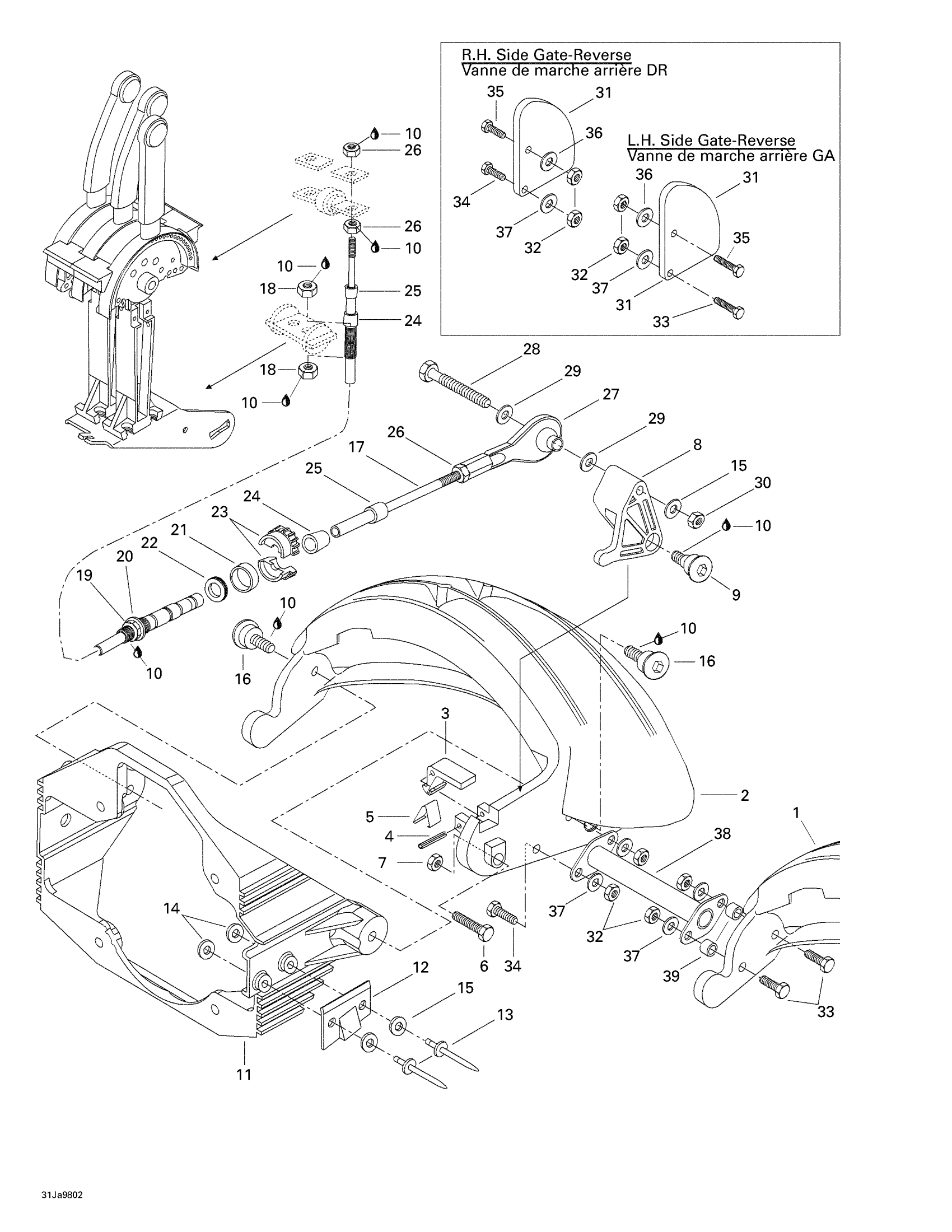

Sea-doo Challenger, 5612, 1998 Reverse Diagram

#

Description
Price

1

Reverse Gate L.H

204170056

Unavailable

2

Reverse Gate R.H

204170055

Unavailable

3

HOOK LEVER - Call your local BRP dealership

271000430

Unavailable

4

Pin

211400009

$1.68

5

Spring

271000431

$15.49

6

Hex. Forming Screw M6 X 20

207162060

$1.29

7

Hex. Elastic Stop Nut M6

232561600

$1.15

8

CABLE LEVER - Call your local BRP dealership

271000583

Unavailable

9

SCREW-SHOULDER M8 - Call your local BRP dealership

211000077

Unavailable

10

Loctite 243, 10 ml

293800060

$21.49

11

Reverse Gate Support

204170051

Unavailable

12

PAWL STOP - Call your local BRP dealership

204170031

Unavailable

13

Pop Rivet 3/16"

293150005

$0.52

14

Flat Washer | XT

211200035

$0.55

15

Stainless Flat Washer M6

234061600

$0.33

16

Screw

211000007

Unavailable

17

REVERSE CABLE R.H - Call your local BRP dealership

204170045

Unavailable

18

Hex. Jam Nut

212100006

Unavailable

19

Hex. Jam Nut 1/2-20

211100011

Unavailable

20

FLAT WASHER, STAINLESS - Call your local BRP dealership

211200006

Unavailable

21

Retaining Ring

211100010

Unavailable

22

RUBBER WASHER - Call your local BRP dealership

211100009

Unavailable

23

Half-Ring

277000168

Unavailable

24

Boot, Large

277000473

Unavailable

25

Boot, Small

277000466

Unavailable

26

Hex. Nut

212100005

$1.35

27

BALL JOINT - Call your local BRP dealership

277000153

Unavailable

28

HEX. SCREW M6 X 60 - Call your local BRP dealership

207066060

Unavailable

29

Flat Washer M6, Stainless

234062600

$0.77

30

Hex. Elastic Stop Nut M6

232561600

$1.15

31

Reverse Gate Shutter (Starboard)

204170010

Unavailable

32

Elastic Stop Nut M4

232541600

$1.15

33

Hex. Screw M4 x 30

215043060

Unavailable

34

Hex. Screw M4 x 25

215042560

Unavailable

35

Hex. Screw M4 X 16 | Europe

207141660

$1.47

36

Flat Washer 4 mm

234040600

$0.55

37

Flat Washer 4 mm, Stainless

234042600

$1.15

38

Link Rod

204170022

Unavailable

39

SPACER BUSHING - Call your local BRP dealership

204170026

Unavailable
