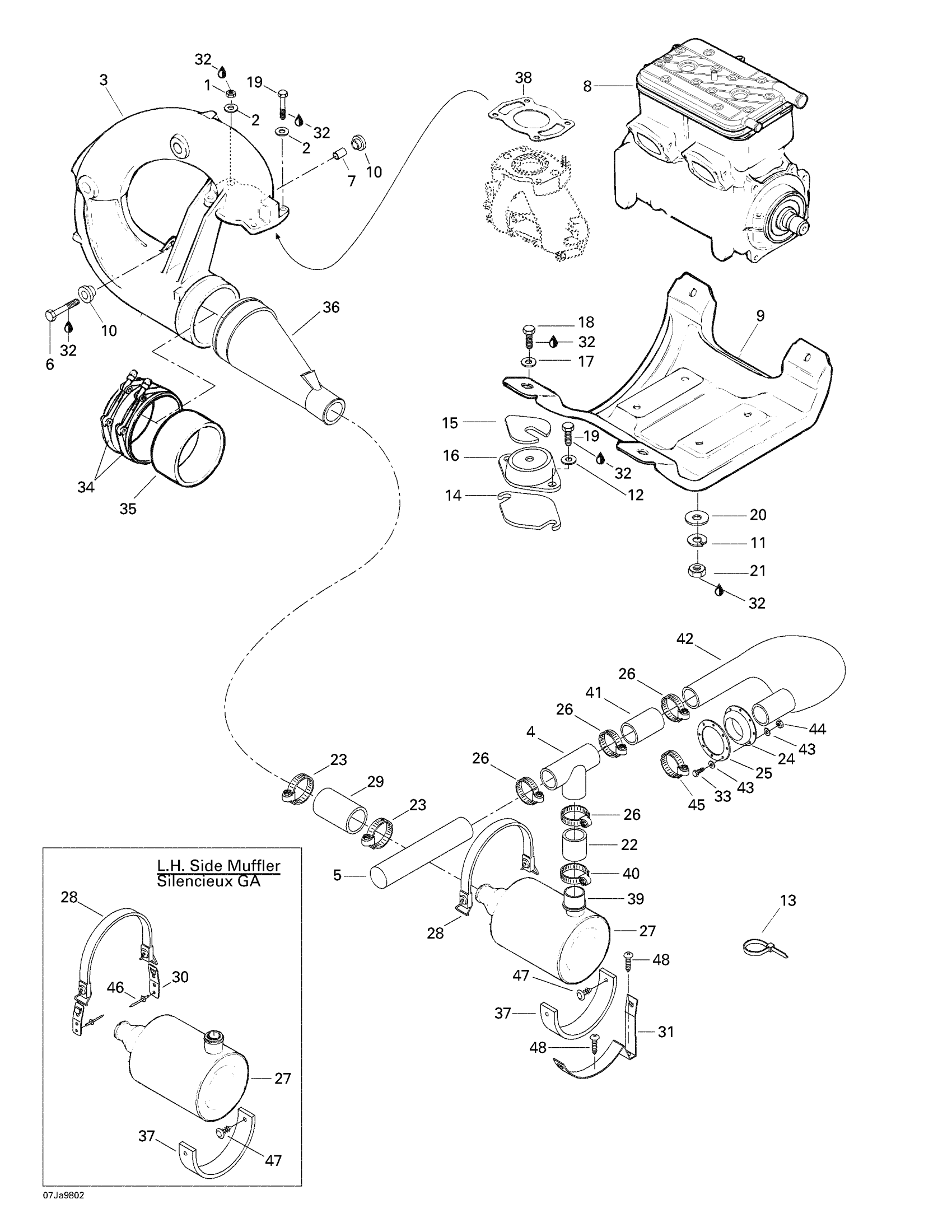

Sea-doo Challenger, 5612, 1998 Engine Support And Muffler Diagram

#

Description
Price

1

Hex. Nut M8

232081600

$1.47

2

Flat Washer M8.5 x 18

293050001

$3.07

3

Tuned Pipe Ass'y

274000487

Unavailable

4

T Fitting

204340064

Unavailable

5

Resonateur

204340065

Unavailable

6

Hex. Screw M8 X 40

207084060

$2.22

7

Bushing

274000114

$8.85

8

Rotax Engine 717(White)

270000379

Unavailable

9

Engine Support

270000312

Unavailable

10

Rubber Bushing

293830031

Unavailable

11

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15

12

Stainless, Flat Washer 8 mm

234081600

$0.55

13

Tie Wrap 368 mm

293750008

$1.04

14

Shim 0.4 mm

270000006

Unavailable

Shim 1.3 mm

270000007

Unavailable

Shim 3.3 mm

270000143

Unavailable

15

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

16

Rubber Mount

270000425

$71.99

17

Flat Washer 8 mm, Stainless

234082600

$2.43

18

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

19

Hex. Screw M8 X 30

207183060

$1.58

20

Flat Washer 10 mm, Stainless

234001600

$1.15

21

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

22

Exhaust Hose

204340063

Unavailable

23

Norma Clamp

293650077

$7.41

24

Gasket

293250096

Unavailable

25

Ring

274000277

Unavailable

26

Tridon Clamp

293650064

$8.29

27

Muffler

274000491

Unavailable

28

Retainer Strap

293850097

$11.64

29

Exhaust Hose

274000170

Unavailable

30

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

31

Muffler Support

274000234

Unavailable

32

Loctite 243, 10 ml

293800060

$21.49

33

Hex. Screw M6 X 25

207162560

$1.47

34

NORMA CLAMP - Call your local BRP dealership

293650068

Unavailable

35

Sealing Ring

274000074

Unavailable

36

Exhaust Cone Ass’Y

274000488

Unavailable

37

Rubber Pad

293830055

Unavailable

38

Exhaust Gasket This part replaces 290950253.

420950253

$14.83

39

Hose Adaptor

274000383

Unavailable

40

Norma Clamp

293650079

$11.60

41

RH Exhaust Hose

204340066

Unavailable

LH Exhaust Hose

204340067

Unavailable

42

RH Expansion Chamber

204340061

Unavailable

LH Expansion Chamber

204340060

Unavailable

43

Stainless Flat Washer M6

234061600

$0.33

44

Hex. Elastic Stop Nut M6

232561600

$1.15

45

NORMA CLAMP - Call your local BRP dealership

293650076

Unavailable

46

Pop Rivet 3/16"

293150008

$0.50

47

Black, Dart

293730006

$0.99

48

Screw 6.3 x 32

216663260

Unavailable
