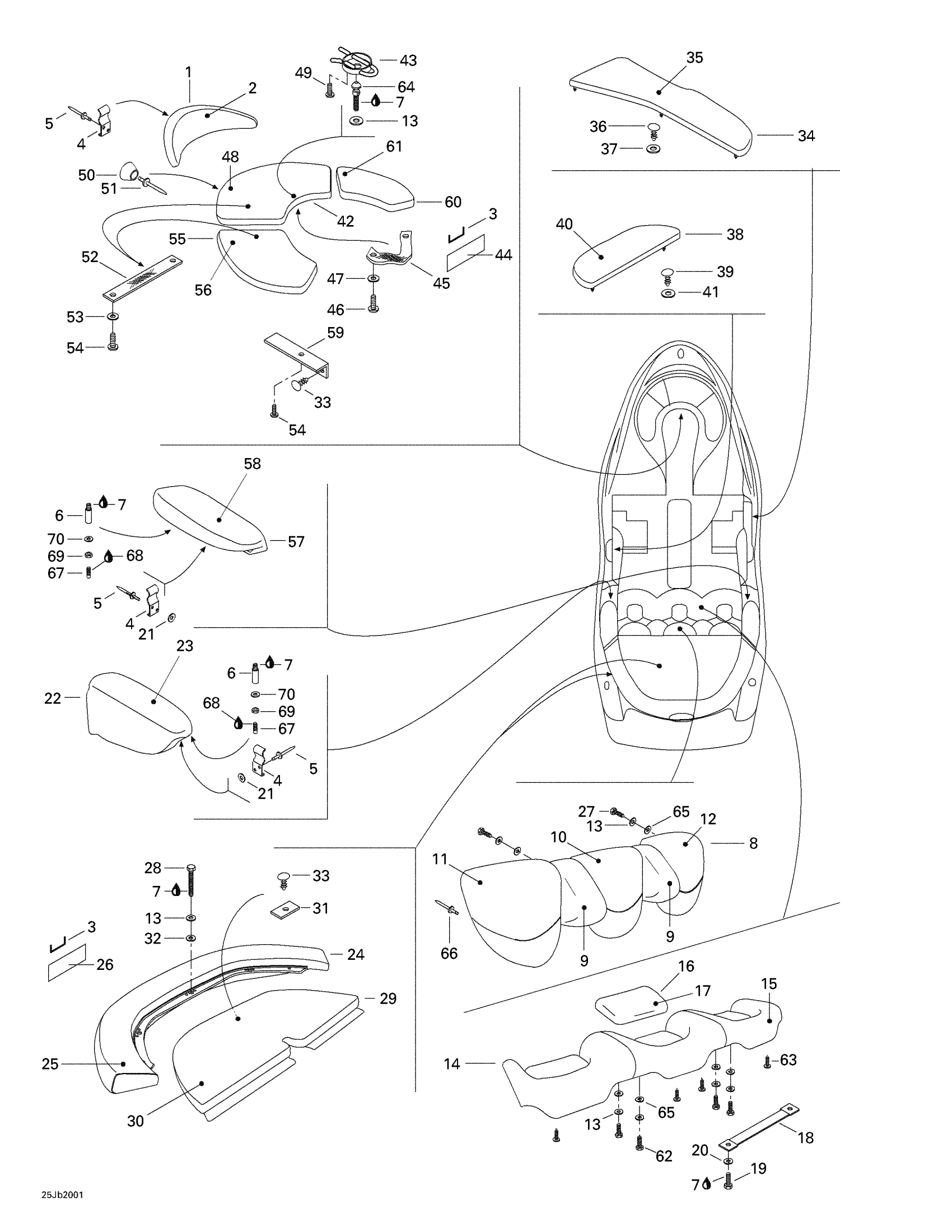

Sea-doo Challenger 1800, 5691, 2000 09- Front Diagram
#
1
Front Backrest Ass'y | Includes 1 - 2.
204610391
Unavailable
2
Backrest Cover (Colorado Pearl)
204610392
Unavailable
3
Staple
293730005
Unavailable
4
SEAT SUPPORT - Call your local BRP dealership
269000388
Unavailable
5
Pop Rivet 3/16"
293150043
$2.09
6
Threaded Rod M5
269000380
Unavailable
7
Loctite 243, 10 ml
293800060
$21.49
8
Rear Backrest Ass'y | Includes 8 - 12.
204610880
Unavailable
9
Bump Cover (Colorado Pearl)
204610884
Unavailable
10
RearBackrestCover(Center)
204610885
Unavailable
11
Rear Backrest Cover R.H
204610886
Unavailable
12
Rear Backrest Cover L.H
204610887
Unavailable
13
Flat Washer M6, Stainless
234062600
$0.77
14
Rear Seat Ass'y | Includes 14 - 20.
204610881
Unavailable
15
Rear Seat Cover (Colorado Pearl)
204610888
Unavailable
16
Rear Seat Pillow Ass'y | Includes 16 - 17.
204610889
Unavailable
17
Rear Seat Pillow Cover
204610890
Unavailable
18
Rear Seat Strap (Colorado Pearl)
204610517
Unavailable
19
Hex. Screw M6 X 16
207161660
$1.59
20
Flat Washer M6, Stainless
234062600
$0.77
21
Stainless Flat Washer M6
234061600
$0.33
22
LH Rear Seat Arm-Rest Ass'y | Includes 55 - 56. CHALLENGER 1800 (5702). .
204610883
Unavailable
23
LH Rear Seat Arm-Rest Cover | CHALLENGER 1800 (5702). .
204610892
Unavailable
24
Rear Spoiler Ass'y | Includes 67 - 69.
204610420
Unavailable
24
Foam Spoiler
204610053
Unavailable
25
Spoiler Cover
204610421
Unavailable
26
Staple Cover, Meter
204610184
Unavailable
27
Hex. Screw M6 X 40, Scotch Grip
207364060
Unavailable
28
Hex. Screw M6 X 25, Scotch Grip | With Catalyst
207362560
$1.47
29
Platform Ass'y | Includes 29 - 31.
204610422
Unavailable
30
Platform Cover (Earthern Clay)
204610423
Unavailable
31
Strap
204610194
Unavailable
32
Flat Washer 10 mm, Stainless
234002600
$2.22
33
Black, Dart
293730006
$0.99
34
RH Elbow Padding Ass'y | Includes 34 - 37.
204610412
Unavailable
34
Neoprene Foam
204610121
Unavailable
35
RH Elbow Padding Cover (Colorado Pearl
204610413
Unavailable
36
Black, Dart
293730006
$0.99
37
Flat Washer M6, Stainless
234062600
$0.77
38
LH Elbow Padding Ass'y | Includes 38 - 41.
204610414
Unavailable
38
Neopren Foam
293730123
Unavailable
39
Black, Dart
293730006
$0.99
40
LH Elbow Padding Cover (Colorado Pearl
204610415
Unavailable
41
Flat Washer M6, Stainless
234062600
$0.77
42
Center Front Seat Ass'y | Includes 42 - 49.
204610393
Unavailable
43
Front Seat Latch
204610178
Unavailable
44
Staple Cover, Meter
204610184
Unavailable
45
Passenger Strap
293000060
Unavailable
46
Screw K40 X 10
241140060
$1.48
47
Flat Washer 4 mm, Stainless
234042600
$1.15
48
Center Front Seat Cover (Earthern Clay)
204610394
Unavailable
49
Socket Head Screw M4 X 16
205441660
$1.47
50
Rubber Stopper
293830043
Unavailable
51
Pop Rivet 3/16"
293150013
$1.37
52
Passenger Strap
293000060
Unavailable
53
Flat Washer 4 mm, Stainless
234042600
$1.15
54
Screw K40 X 10
241140060
$1.48
55
LH Front Seat Ass'y | Includes 55 - 56.
204610395
Unavailable
56
LH Front Seat Cover (Earthern Clay)
204610396
Unavailable
57
RH Rear Seat Arm-Rest Ass'y | Includes 48 - 49.
204610882
Unavailable
58
RH Rear Seat Arm (Colorado Pearl)
204610891
Unavailable
59
SEAT BRACKET - Call your local BRP dealership
204610100
Unavailable
60
RH Front Seat Ass'y | Includes 60 - 61.
204610397
Unavailable
61
RH Front Seat Cover (Earthern Clay)
204610398
Unavailable
62
Hex. Screw M6 x 45, Scotch Grip
207364560
$1.89
63
Dart
293730021
$7.79
64
Seat Stud
204610207
Unavailable
65
Flat Washer 8 mm, Stainless
234082600
$2.43
66
RIVET - Call your local BRP dealership
293150065
Unavailable
67
Socket Set Screw M5 x 40
206254060
Unavailable
68
Loctite 271, 10 ml
293800005
$26.99
69
Hex. Elastic Nut M5 | X
232551600
$1.15
70
Flat Washer 5 mm, Stainless
234052600
$0.77
