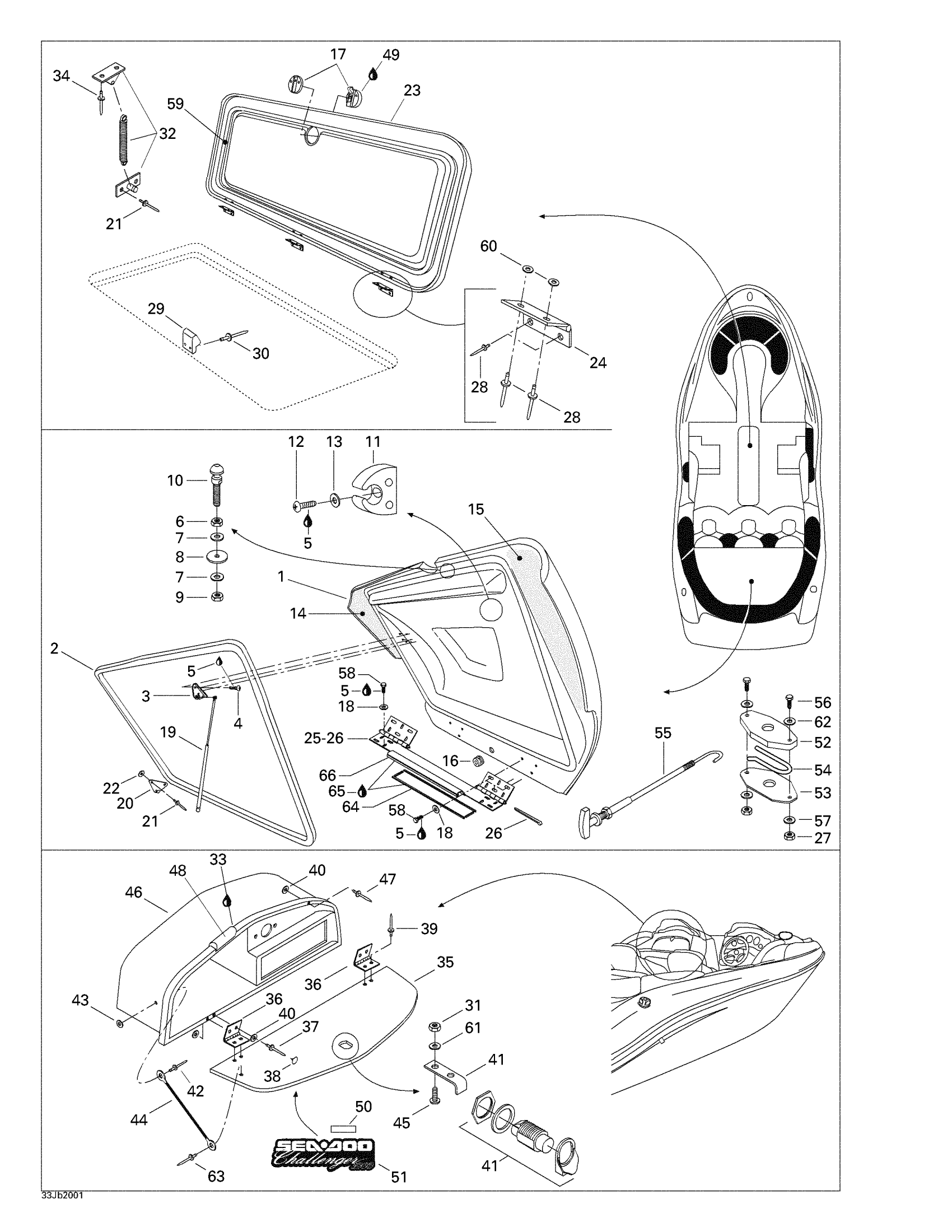

Sea-doo Challenger 1800, 5691, 2000 Body And Accessories 1 Diagram

#

Description
Price

1

Engine Cover Ass'y | Includes 1 - 16.

295500426

Unavailable

2

Was 293200017 Neoprene Seal

219704365

$149.99

3

CYLINDER SUPPORT - Call your local BRP dealership

291000654

Unavailable

4

HEX. SCREW M5 X 16 - Call your local BRP dealership

207151660

Unavailable

5

Loctite 243, 10 ml

293800060

$21.49

6

Hex. Jam Nut M10

232100600

$2.22

7

Flat Washer 10 mm, Stainless

234002600

$2.22

8

RUBBER WASHER - Call your local BRP dealership

291000628

Unavailable

9

HEX. ELASTIC NUT M10 - Call your local BRP dealership

232501600

Unavailable

10

Latch Stud

204700001

Unavailable

11

Pole Support

291000642

Unavailable

12

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

13

Flat Washer 4 mm

234040600

$0.55

14

Engine Cover Foam R.H

204320007

Unavailable

15

Engine Cover Foam L.H

204320008

Unavailable

16

GROMMET - Call your local BRP dealership

293720017

Unavailable

17

VERROU, WHITE - Call your local BRP dealership

204070063

Unavailable

18

Stainless Flat Washer M6

234061600

$0.33

19

LH Retainer Cylinder

204070218

Unavailable

RH Retainer Cylinder

204070178

Unavailable

20

SHOCK BRACKET - Call your local BRP dealership

204070065

Unavailable

21

Pop Rivet 3/16"

293150043

$2.09

22

Flat Washer M5, Stainless

234051600

$0.77

23

CENTER COVER - Call your local BRP dealership

204073144

Unavailable

24

HINGE - Call your local BRP dealership

204072601

Unavailable

25

Plate Ass’y | Includes 25 - 26.

204070708

Unavailable

26

Cotter Pin M2.5 X 12

204070205

Unavailable

27

Hex. Elastic Stop Nut M6

232561600

$1.15

28

Avdel Rivet 3/16"

293150037

$0.56

29

LATCH BRACKET - Call your local BRP dealership

204070050

Unavailable

30

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

31

Elastic Stop Nut M4

232541600

$1.15

32

SPRING SEAT - Call your local BRP dealership

204000071

Unavailable

33

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

34

RIVET_POP 3/16 - Call your local BRP dealership

293150055

Unavailable

35

Tray Door (Aztec Red)

204070302

Unavailable

36

Hinge

269700031

$9.99

37

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

38

Snap Cap (White)

204070077

Unavailable

39

Pop Rivet 1/8”

293150063

Unavailable

40

Flat Washer M3, Stainless

234032600

$0.55

41

LATCHES KIT, 3 SUB-ASSEMBLIES - Call your local BRP dealership

204070122

Unavailable

42

Pop Rivet 3/16"

293150008

$0.50

43

Flat Washer 5 mm, Stainless

234052600

$0.77

44

RETAINER CABLE - Call your local BRP dealership

204071498

Unavailable

45

Phillips Screw M4 X 12

208641260

$1.03

46

Glove Box

204070392

Unavailable

47

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

48

Neoprene, Meter

204070115

Unavailable

49

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

50

Double Side Tape

204070268

Unavailable

51

Emblem (Aztec Red)

204900319

Unavailable

52

LATCH BASE - Call your local BRP dealership

204070037

Unavailable

53

LATCH COVER - Call your local BRP dealership

204070036

Unavailable

54

SPRING - Call your local BRP dealership

204070038

Unavailable

55

LATCH CABLE - Call your local BRP dealership

204070049

Unavailable

56

Hex. Screw M6 X 35

207163560

$1.49

57

Flat Washer M6, Stainless

234062600

$0.77

58

Hex. Screw M6 X 25

207162560

$1.47

59

Seal Tray 1000Mm Long

219704368

$13.99

60

Flat Washer M5, Stainless

234051600

$0.77

61

Flat Washer 4 mm

234040600

$0.55

62

Stainless Flat Washer M6

234061600

$0.33

63

Pop Rivet 3/16"

293150043

$2.09

64

Trim Lock Seal

293200066

Unavailable

65

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

$27.99

66

BLACK TRIM, METER - Call your local BRP dealership

204070055

Unavailable
