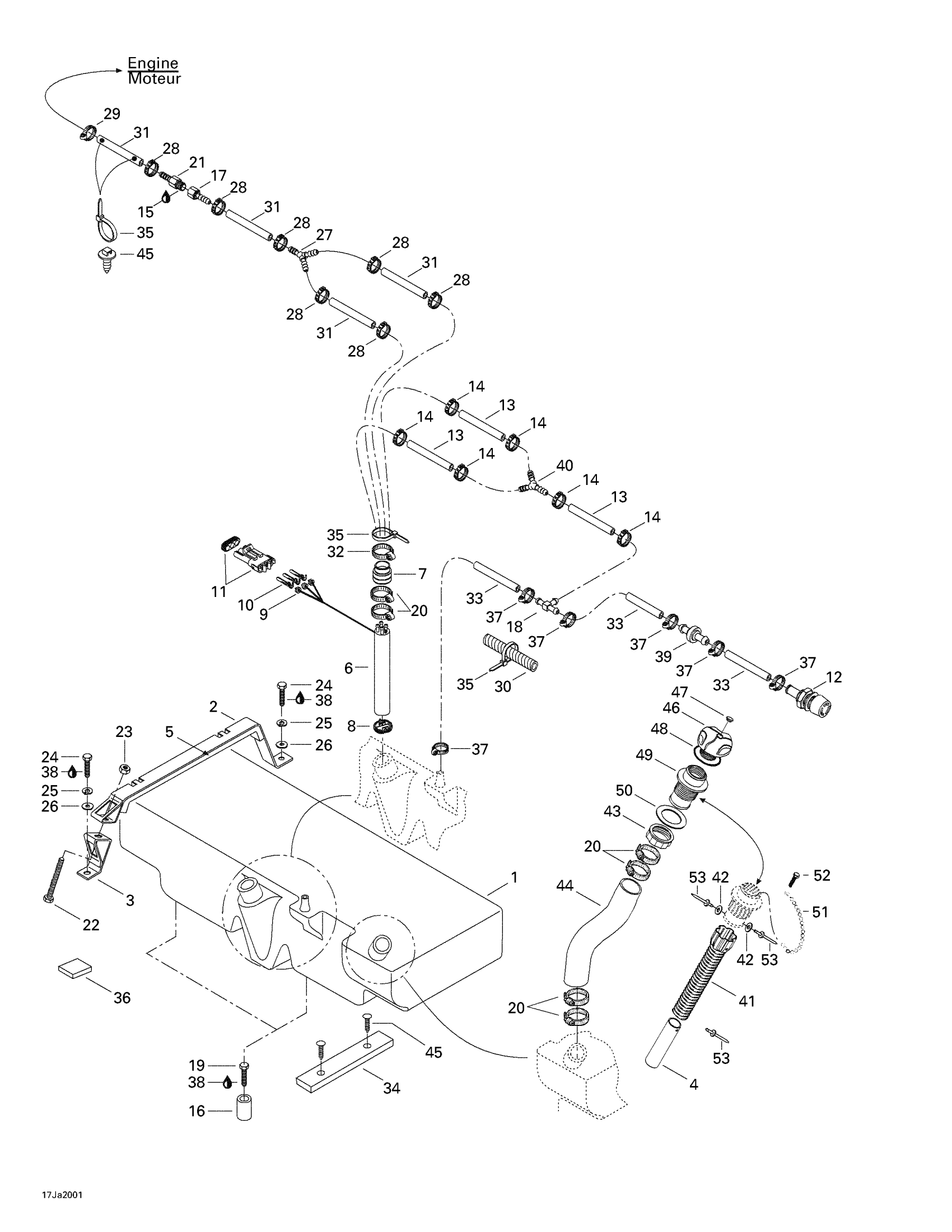

Sea-doo Challenger 1800, 5691, 2000 Fuel System Diagram

#

Description
Price

1

Fuel Tank, Plastic

204560073

Unavailable

2

Fuel Tank Strap

204560011

Unavailable

3

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Protector Pad

204560037

Unavailable

6

BAFFLE PICK-UP ASS?Y - Call your local BRP dealership | Includes 43 to 48

204560223

Unavailable

7

Fuel Tube Adaptor

204560066

Unavailable

8

FUEL FILTER - Call your local BRP dealership

275500397

Unavailable

9

Wire Seal

278000218

$4.39

10

Female Terminal

278000223

$3.19

11

Male Housing, 3 Circuits

278000273

$9.59

12

VENT BOAT - Call your local BRP dealership

275500206

Unavailable

13

Hose 6 mm (Meter)

204560099

Unavailable

14

Norma Clamp

293650088

Unavailable

15

Was 293800013 Loctite 56765

219704454

$65.99

16

Rubber Bumper

204560039

Unavailable

17

HOSE FITTING - Call your local BRP dealership | CHALLENGER 1800 (5774).

293700038

Unavailable

18

T-Fitting

204560038

Unavailable

19

Phillips Screw M5 X 35

208653560

$2.22

20

Norma Clamp

293650081

$12.18

21

Anti-Siphon Valve | CHALLENGER 1800 (5774).

204560122

Unavailable

22

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

23

Hex. Elastic Nut M8

232581600

$1.48

24

Hex. Screw M8 X 30

207183060

$1.58

25

Lock Washer 8 mm, Stainless

234181601

$0.55

26

Flat Washer 8 mm, Stainless

234082600

$2.43

27

Y-Fitting

204550001

Unavailable

28

NORMA CLAMP - Call your local BRP dealership

293650087

Unavailable

29

Tridon Gear Clamp

293650172

$3.09

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Hose 5/16"

204560070

Unavailable

32

Norma Clamp

293650077

$7.41

33

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

34

Rubber Pad

293830021

Unavailable

35

Tie-Rap 180 mm

414115200

$0.11

36

Protecteur Pad

204560027

Unavailable

37

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

38

Loctite 271, 10 ml

293800005

$26.99

39

VENT FUEL SURGE PROTECTOR - Call your local BRP dealership

204560101

Unavailable

40

Y-Fitting

293710059

$9.69

41

FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067.

275500757

Unavailable

42

Flat Washer M3, Stainless

234032600

$0.55

43

Filler Neck Nut, Fuel

211100012

$14.22

44

Filler Neck Hose

204560033

Unavailable

45

Black, Dart

293730006

$0.99

46

Fuel Tank Cap, Black | Includes 26 to 27

275500430

$27.49

47

Black, Snap Cap

293000034

$9.39

48

Gasket

293250017

Unavailable

49

Filler Neck

275500247

Unavailable

50

Gasket

293250029

$14.82

51

Oil Cap Chain

275500015

Unavailable

52

Screw K40 X 10

241140060

$1.48

53

Rivet 1/8”

293150057

Unavailable
