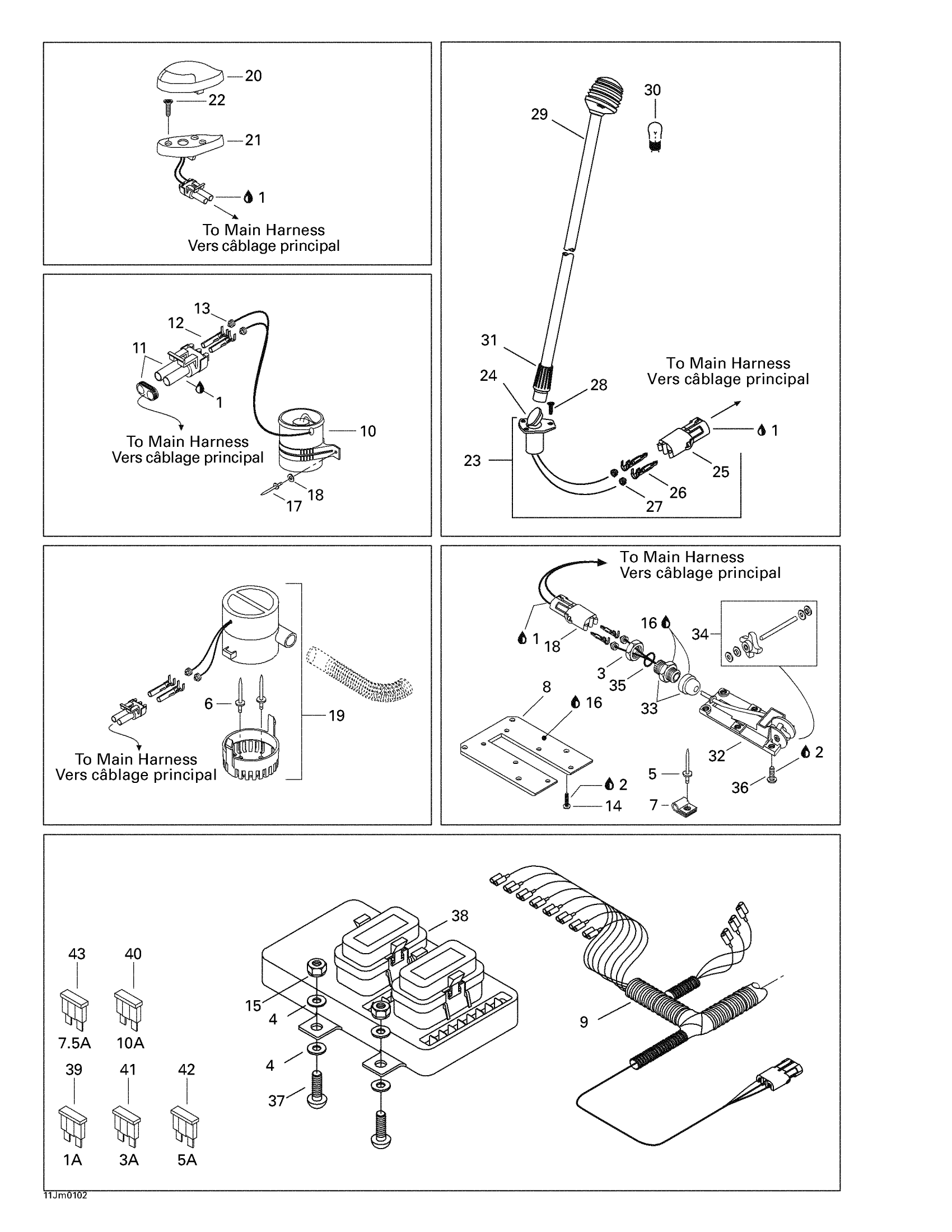

Sea-doo Challenger 1800, 5446 (240 EFI), 2001 Electrical Accessories 2 Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

2

Loctite 243, 10 ml

293800060

$21.49

3

LOCKING NUT - Call your local BRP dealership

293710032

Unavailable

4

Flat Washer M6, Stainless

234062600

$0.77

5

Pop Rivet 3/16"

293150088

$0.99

6

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

7

Cable Clamp 3/16”

204100026

Unavailable

8

Sensor Support

204470538

Unavailable

9

Accessories Harness

204470609

Unavailable

10

Fan Ass'y | Includes 44 to 47

204470108

$144.99

11

Male Connector, 2 Circuits

278000220

$15.49

12

Female Terminal

278000223

$3.19

13

Wire Seal

278000218

$4.39

14

Phillips Screw M6 X 35 | W/O Weedless System

208563560

$2.00

15

Hex. Elastic Stop Nut M6

232561600

$1.15

16

Silicone Sealant 51388, 300 ml

296000309

$36.99

17

Pop Rivet 3/16"

293150008

$0.50

18

Flat Washer 5 mm, Stainless

234052600

$0.77

19

Bilge Pump

204471431

Unavailable

20

Front Lamp

204470311

Unavailable

21

FRONT LAMP SUPPORT - Call your local BRP dealership

204470072

Unavailable

22

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

23

Rear Light Base Ass'y | Includes 33 to 36

278000674

Unavailable

24

Not Available As Spare Part - Friction Washer

Unavailable

25

Female Housing, 2 Circuits

278000217

$9.59

26

Male Terminal | XT Models

278000222

$3.19

27

Wire Seal

278000218

$4.39

28

Screw M4.2 x 32

208943260

Unavailable

29

Rear Lamp Pole | Includes 17 to 19, Models Without Tower

204470022

Unavailable

30

Bulb

204470053

Unavailable

31

COLLAR - Call your local BRP dealership

204470350

Unavailable

32

SENSOR-SPEED - Call your local BRP dealership | Includes 36 To 37 This part replaces 278000970.

278001998

Unavailable

33

ELECTRIC CONNECTION - Call your local BRP dealership

293710031

Unavailable

34

Paddle Wheel Kit

295500108

Unavailable

35

SEAL WASHER - Call your local BRP dealership

278000416

Unavailable

36

PHILLIPS SCREW M5 X 10 - Call your local BRP dealership

208551060

Unavailable

37

PHILLIPS SCREW M6 X 25 - Call your local BRP dealership

208662560

Unavailable

38

Fuse Block

204470597

Unavailable

39

FUSE, 1 AMPERE - Call your local BRP dealership

409012800

Unavailable

40

Fuse, 10 Amperes | North America

278001197

$2.21

41

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

42

Fuse, 5 Amperes | CE

278000344

$3.28

43

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable
