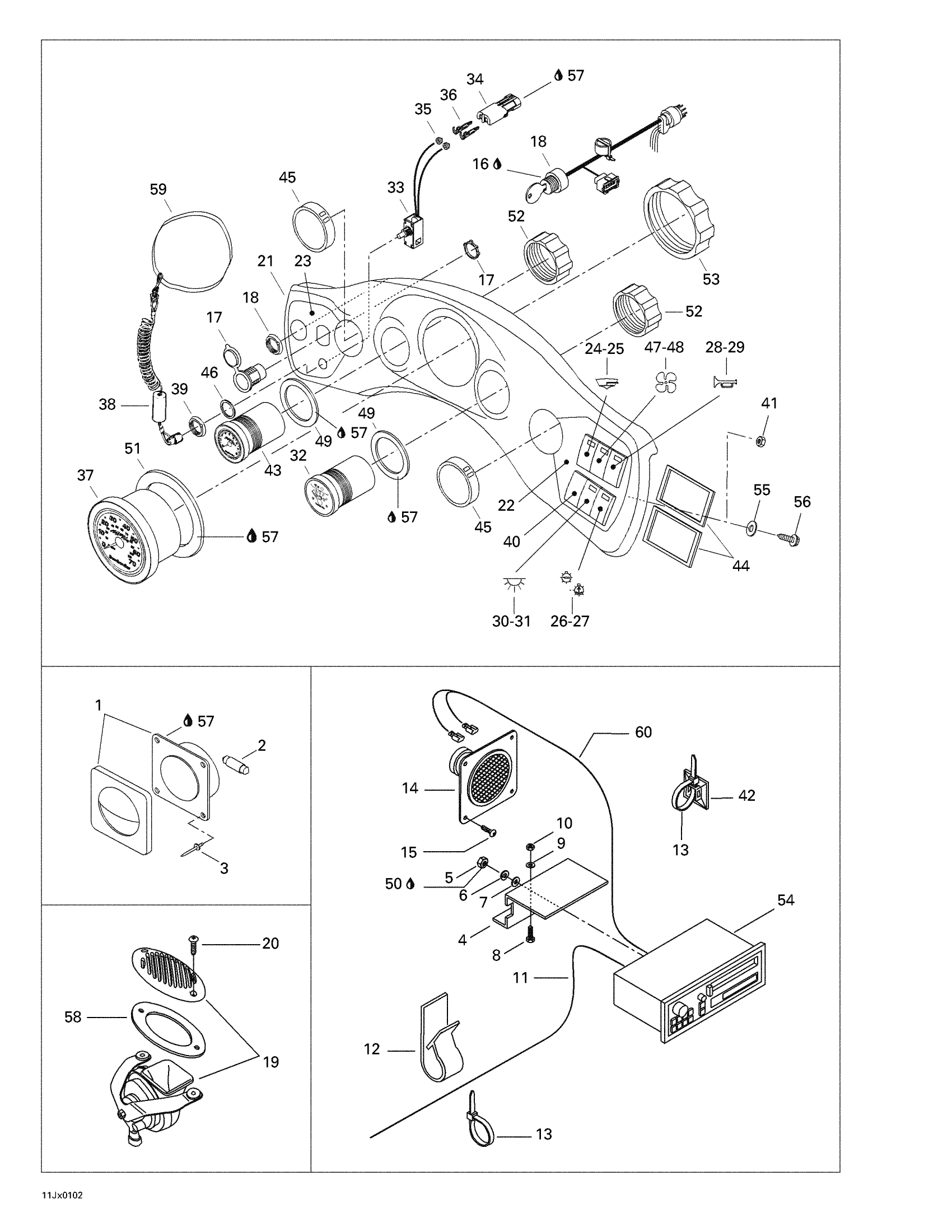

Sea-doo Challenger 1800, 5446 (240 EFI), 2001 10- Electrical Accessories 1 Diagram

#

Description
Price

1

Courtesy Light Ass'y | Includes 29 to 30

204470026

$47.49

2

BULB - Call your local BRP dealership

204470081

Unavailable

3

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

4

Radio Support

204470599

Unavailable

5

Hex. Nut M5

232051600

$1.15

6

Helical Lock Washer M5

234151601

$1.15

7

Flat Washer 5 mm, Stainless

234052600

$0.77

8

PHILLIPS SCREW M6 X 20 - Call your local BRP dealership

208462060

Unavailable

9

Flat Washer M6, Stainless

234062600

$0.77

10

Hex. Elastic Stop Nut M6

232561600

$1.15

11

Antenna

204470380

Unavailable

12

Clip Cable

414839700

Unavailable

13

Tie Wrap 142 mm

293750002

$1.25

14

Speaker

204470378

Unavailable

15

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

16

ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership

219704457

$54.99

17

DC Outlet

710001248

$37.99

18

Instrumentation Harness | CHALLENGER 1800 (5774).

204470630

Unavailable

19

HORN - Call your local BRP dealership

204470801

Unavailable

20

SCREW-RD.HD.PH. - Call your local BRP dealership

211000100

Unavailable

21

Facia | CHALLENGER 1800 (5445).

204470478

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

22

RH Fascia Decal | CHALLENGER 1800 (5445).

204900494

Unavailable

23

LH Fascia Decal (Ignition) | CHALLENGER 1800 (5445).

204900749

Unavailable

24

BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership

204470099

Unavailable

25

Gasket

204470132

Unavailable

26

LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470100

Unavailable

27

Gasket

204470132

Unavailable

28

HORN SWITCH ASS'Y - Call your local BRP dealership

204470101

$49.99

29

Gasket

204470132

Unavailable

30

COURTESY LIGHT SWITCH ASS'Y - Call your local BRP dealership

204470102

Unavailable

31

Gasket

204470132

Unavailable

32

Oil/Fuel Gauge

204470391

Unavailable

33

Safety Switch | Includes 17 - 20.

204470463

Unavailable

34

Female Housing, 2 Circuits

278000217

$9.59

35

Wire Seal

278000218

$4.39

36

Male Terminal | XT Models

278000222

$3.19

37

Speedometer Gauge

204470374

Unavailable

38

Safety Lanyard

278001431

$47.49

39

Safety Switch Nut

278000099

Unavailable

40

SWITCH PLUG - Call your local BRP dealership

204470596

Unavailable

41

Hex. Elastic Nut M8

232581600

$1.48

42

TIE RAP MOUNT - Call your local BRP dealership

293750015

Unavailable

43

Tachometer Gauge

204470466

Unavailable

44

LOCKING PLATE - Call your local BRP dealership

204470343

Unavailable

45

Gauge Cap

204470328

Unavailable

46

FLAT WASHER - Call your local BRP dealership

204100027

Unavailable

47

VENTILATION SWITCH ASS'Y - Call your local BRP dealership

204470011

Unavailable

48

Gasket

204470132

Unavailable

49

Gasket

204470308

Unavailable

50

Loctite 243, 10 ml

293800060

$21.49

51

Gasket

204470309

Unavailable

52

Gauge Nut

204470146

Unavailable

53

Gauge Nut

204470171

Unavailable

54

Tape-Radio | CHALLENGER 1800 (5445).

204470377

Unavailable

Radio Compact Disk | CHALLENGER 1800 (5446).

204470554

Unavailable

55

Flat Washer 4 mm, Stainless

234042600

$1.15

56

Hex. Flange Screw K40 X 16

241141660

$1.48

57

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

58

Horn Gasket

293250108

Unavailable

59

Safety Strap

204470025

Unavailable

60

Harness Radio | CHALLENGER 1800 (5446).

204470621

Unavailable
