- Challenger 1800, 5446 (240 EFI), 2001
09- Front Storage Compartment

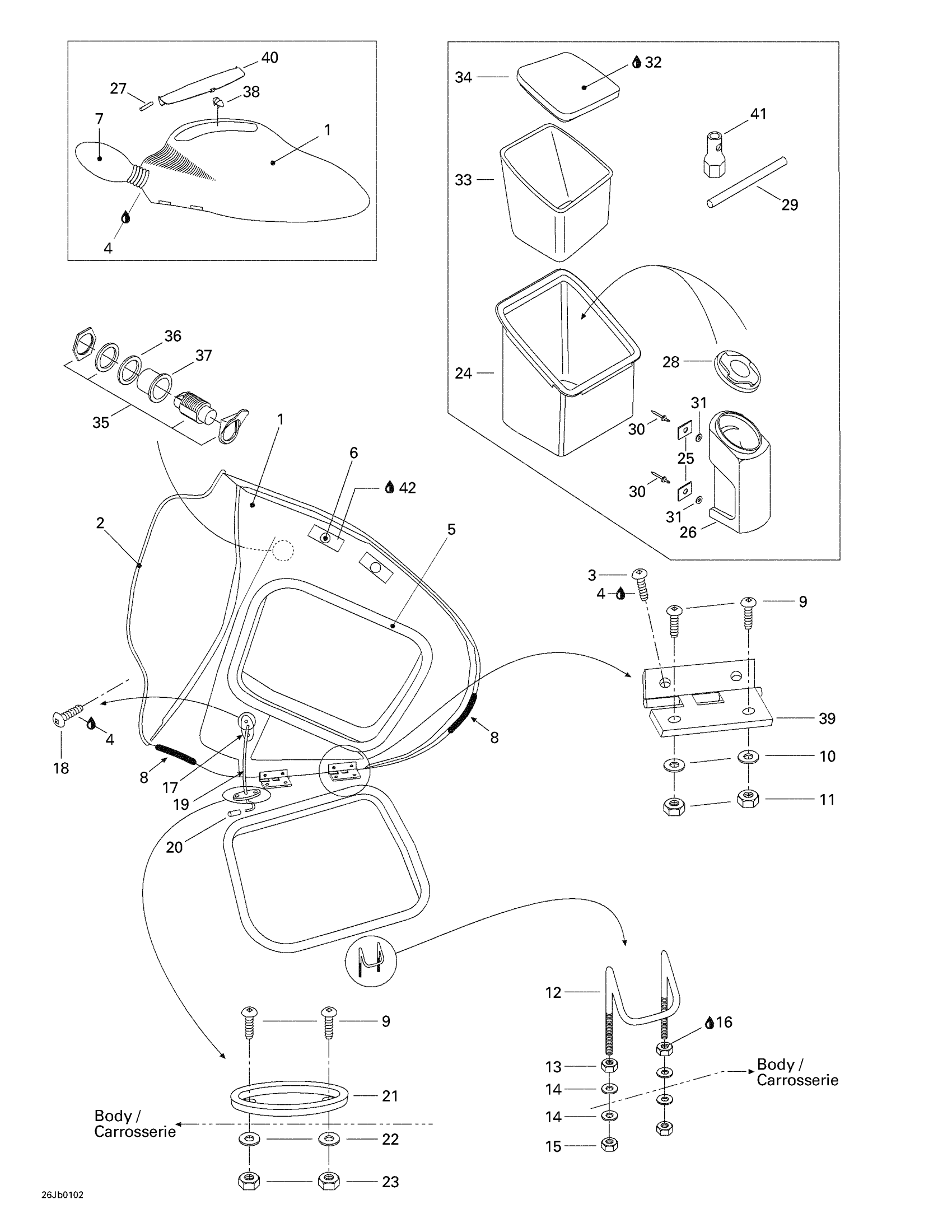

Sea-doo Challenger 1800, 5446 (240 EFI), 2001 09- Front Storage Compartment Diagram
#
1
RH Windshield | Includes 1 to 2
204620217
Unavailable
LH Windshield | Includes 1 to 2
204620218
Unavailable
2
Trim, Meter
204620100
Unavailable
3
SCREW M4 X 12 - Call your local BRP dealership
216141260
Unavailable
4
ADHESIVE LOCTITE 425 20ML - Call your local BRP dealership
219704457
$54.99
5
Seal Tray 1000Mm Long
219704368
$13.99
6
RUBBER STOPPER - Call your local BRP dealership
204620295
Unavailable
7
Black, RH Mirror
204620026
Unavailable
8
Waterproof Seal, Meter
204620117
Unavailable
9
PHILLIPS SCREW M4 X 20 - Call your local BRP dealership
208442060
Unavailable
10
Flat Washer 4 mm, Stainless
234042600
$1.15
11
Elastic Stop Nut M4
232541600
$1.15
12
Hook
204620151
Unavailable
13
Hex. Nut M6
232061600
$1.15
14
Flat Washer M6, Stainless
234062600
$0.77
15
Hex. Elastic Stop Nut M6
232561600
$1.15
16
Loctite 243, 10 ml
293800060
$21.49
17
ROD HOLDER - Call your local BRP dealership
204620028
Unavailable
18
PHILLIPS SCREW M4 X 16 - Call your local BRP dealership
208441660
Unavailable
19
SUPPORT ROD - Call your local BRP dealership
204620219
Unavailable
20
CAP - Call your local BRP dealership
204620044
Unavailable
21
ROD STOP - Call your local BRP dealership
204620030
Unavailable
22
Flat Washer 4 mm, Stainless
234042600
$1.15
23
Elastic Stop Nut M4
232541600
$1.15
24
STORAGE TRAY - Call your local BRP dealership
269501940
$53.99
25
GASKET - Call your local BRP dealership
293250037
Unavailable
26
EXTINGUISHER HOUSING - Call your local BRP dealership
269500606
Unavailable
27
ROLLED PIN 1.5 X 10 MM - Call your local BRP dealership
204620126
Unavailable
28
EXTINGUISHER HOUSING CAP - Call your local BRP dealership
269501939
Unavailable
29
Steel Bar
204630051
Unavailable
30
RIVET_POP 1/8 X ,487 - Call your local BRP dealership
293150032
Unavailable
31
Flat Washer M3, Stainless
234032600
$0.55
32
Silicone Sealant 51388, 300 ml
296000309
$36.99
33
ICEBOX FOAM - Call your local BRP dealership
204630008
Unavailable
34
Icebox Foam Cover
204630013
Unavailable
35
LATCHES KIT, 3 SUB-ASSEMBLIES - Call your local BRP dealership
204070122
Unavailable
36
COMPENSATION GASKET - Call your local BRP dealership
204620045
Unavailable
37
LATCH INSERT - Call your local BRP dealership
204620007
Unavailable
38
REAR STOPPER - Call your local BRP dealership
204073804
Unavailable
39
Console Hinge
204620005
Unavailable
40
DEFLECTOR - Call your local BRP dealership
204073803
$63.99
41
Socket Wrench
204630050
Unavailable
42
Était Was 413705800 Loctite 414 , 29.5 c.c
219704463
$27.99
